Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Fuel Injectors, Bolts And Retainers
    GM3221554Courtesy of GENERAL MOTORS COMPANY
  1. Remove Fuel Injectors (1) (Qty: 4). Refer to Fuel Injector Replacement
    2. Fig 2: Camshaft Housing, Bolts And Gasket
    GM3221563Courtesy of GENERAL MOTORS COMPANY
  2. Remove Camshaft Housing (2). Refer to Camshaft Housing Replacement
    3. Fig 3: Exhaust Gas Recirculation Cooler Housing
    GM3282649Courtesy of GENERAL MOTORS COMPANY
  3. Remove Exhaust Gas Recirculation Cooler Housing (1). Refer to Exhaust Gas Recirculation Cooler Housing Replacement
  4. Remove Oxidation Catalytic Converter. Refer to Oxidation Catalytic Converter Replacement (LH7)
    5. Fig 4: Power Brake Booster Inlet Hose Connector Fitting And Components
    GM3216225Courtesy of GENERAL MOTORS COMPANY
  5. Remove Power Brake Booster Inlet Hose Connector Fitting (5). Refer to Power Brake Booster Inlet Hose Connector Fitting Replacement
    6. Fig 5: Timing Chain Upper Cover And Bolts
    GM3282653Courtesy of GENERAL MOTORS COMPANY
  6. Remove Timing Chain Upper Cover (2). Refer to Timing Chain Upper Cover Replacement
    7. Fig 6: Engine Lift Bracket And Bolt
    GM3221560Courtesy of GENERAL MOTORS COMPANY
  7. Install Engine Lift Bracket - Right Side (1) @ Cylinder Head
    8. CAUTION:

    Refer to Fastener Caution

  8. Install and tighten Engine Lift Bracket Bolt (2) to 58 N.m (43 lb ft)
    9. Fig 7: Engine Lift Bracket And Bolt
    GM3221561Courtesy of GENERAL MOTORS COMPANY
  9. Install Engine Lift Bracket - Left Side (1) @ Cylinder Head
  10. Install and tighten Engine Lift Bracket Bolt (2) to 58 N.m (43 lb ft)
  11. Remove Transmission. Refer to Transmission Replacement (Front Wheel Drive)Transmission Replacement (All Wheel Drive)
    12. Fig 8: Crankshaft Position Sensor Reluctor Ring
    GM3275481Courtesy of GENERAL MOTORS COMPANY
  12. Remove Crankshaft Position Sensor Reluctor Ring (1). Refer to Crankshaft Position Sensor Reluctor Ring Replacement
    13. Fig 9: Oil Pan
    GM3275476Courtesy of GENERAL MOTORS COMPANY
  13. Remove Oil Pan (2). Refer to Oil Pan Replacement
    14. Fig 10: Timing Chain Lower Cover, Bolts And Gaskets
    GM3282668Courtesy of GENERAL MOTORS COMPANY
  14. Remove Timing Chain Lower Cover (2). Refer to Timing Chain Lower Cover Replacement
    15. Fig 11: Crankshaft Pulley And Bolts
    GM2900086Courtesy of GENERAL MOTORS COMPANY
  15. Remove Crankshaft Pulley (1). Refer to Crankshaft Pulley Replacement
    16. Fig 12: Crankshaft Pulley Bolts
    GM3252318Courtesy of GENERAL MOTORS COMPANY
  16. Install Crankshaft Pulley Bolts (1) (Qty: 4)
  17. Lower the vehicle.
    18. Fig 13: Aligning Bores
    GM3252317Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If the bores are not aligned, turn the crankshaft at the crankshaft pulley bolts.

  18. Check if the bores (1) are aligned.
    19. Fig 14: Camshaft Fixing Tool
    GM3252356Courtesy of GENERAL MOTORS COMPANY
  19. Turn the exhaust camshaft at the hexagon so far so that the EN-51143  fixing tool (1) can be installed.
  20. Raise the vehicle.
    21. Fig 15: Crankshaft Pulley Bolts
    GM3252318Courtesy of GENERAL MOTORS COMPANY
  21. Remove Crankshaft Pulley Bolts (1) (Qty: 4)
    22. Fig 16: Crankshaft Fixing Tool
    GM3252326Courtesy of GENERAL MOTORS COMPANY
  22. Install EN-51140  Fixing Tool (2)
  23. Install the fixing pin into the engine block bore (1) and tighten the 2 bolts (3).
  24. If the EN-51140  fixing tool can not installed. Refer to Camshaft Timing Chain Adjustment
  25. Lower the vehicle.
    26. Fig 17: Timing Chain Tensioner And Pin
    GM3282671Courtesy of GENERAL MOTORS COMPANY
  26. Tension the timing chain tensioner (1) in arrow direction.
  27. Install EN-50513  Pin (2)
    28. Fig 18: Timing Chain Tensioner Shoe And Bolt
    GM3282672Courtesy of GENERAL MOTORS COMPANY
  28. Remove Timing Chain Tensioner Shoe Bolt (2)
  29. Remove Timing Chain Tensioner Shoe (1)
    30. Fig 19: Timing Chain Lower Guide And Bolts
    GM3282673Courtesy of GENERAL MOTORS COMPANY
  30. Remove Timing Chain Lower Guide Bolts (2) (Qty: 2)
  31. Remove Timing Chain Lower Guide (1)
    32. Fig 20: Timing Chain Upper Guide And Bolts
    GM3282674Courtesy of GENERAL MOTORS COMPANY
  32. Loosen Timing Chain Upper Guide Bolt (1)
  33. Remove Timing Chain Upper Guide Bolt (3)
  34. Move the timing chain upper guide in the direction of arrow.

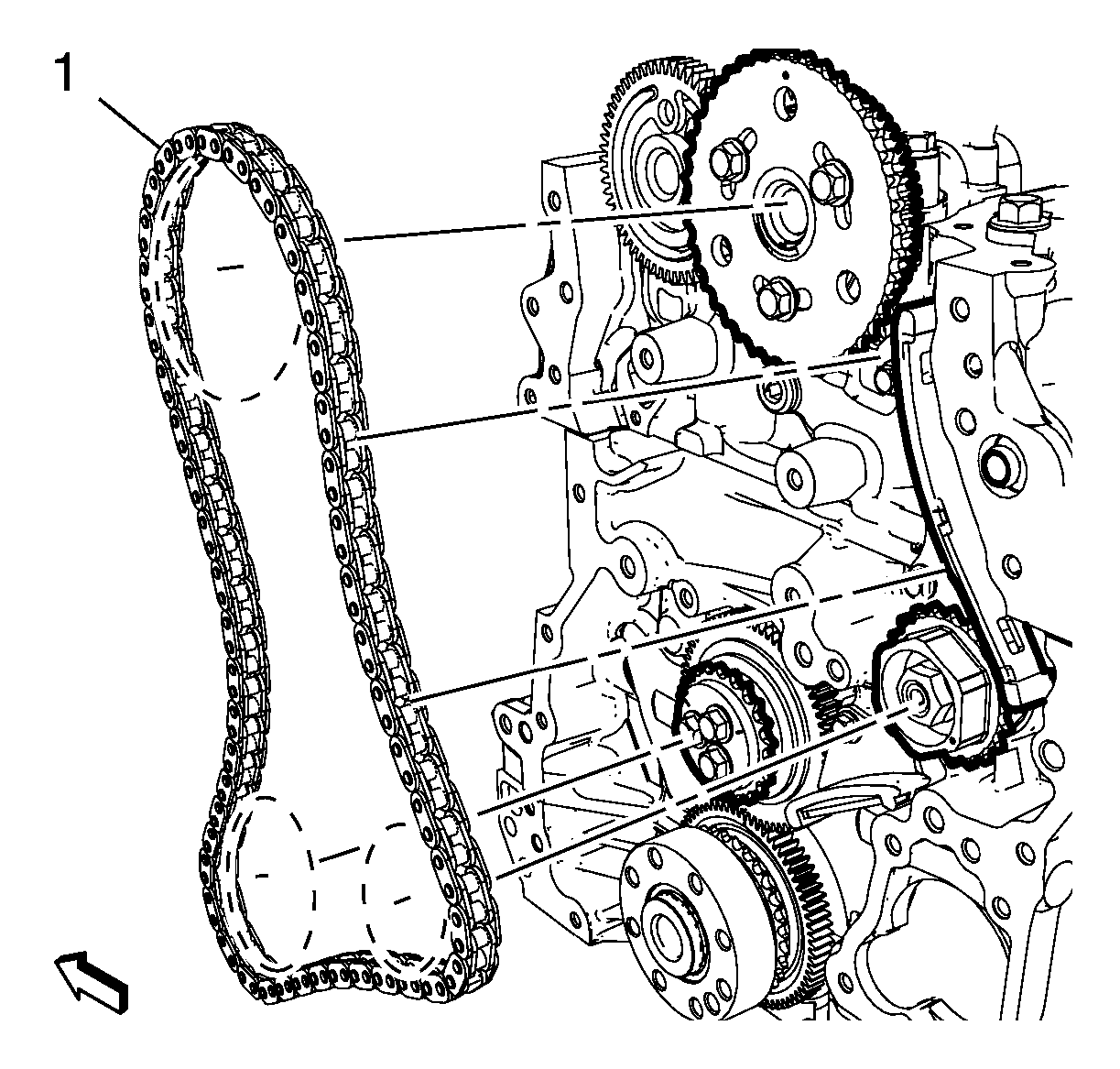

    35. Fig 21: Timing Chain
    GM3282675Courtesy of GENERAL MOTORS COMPANY
  35. Remove Timing Chain (1)
    36. Fig 22: Timing Chain Upper Guide And Bolts
    GM3282676Courtesy of GENERAL MOTORS COMPANY
  36. Remove the upper timing chain upper guide bolt (2).
  37. Remove Timing Chain Upper Guide (1)
