Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- Check the components of the timing chain system for damage and wear:
- Timing chain guides with plastic attachment
- Timing chain tensioner and timing chain tensioner shoe with plastic attachment
- Timing chain and all timing chain sprockets
- Oil pump sprocket
- Oil pump drive chain tensioner

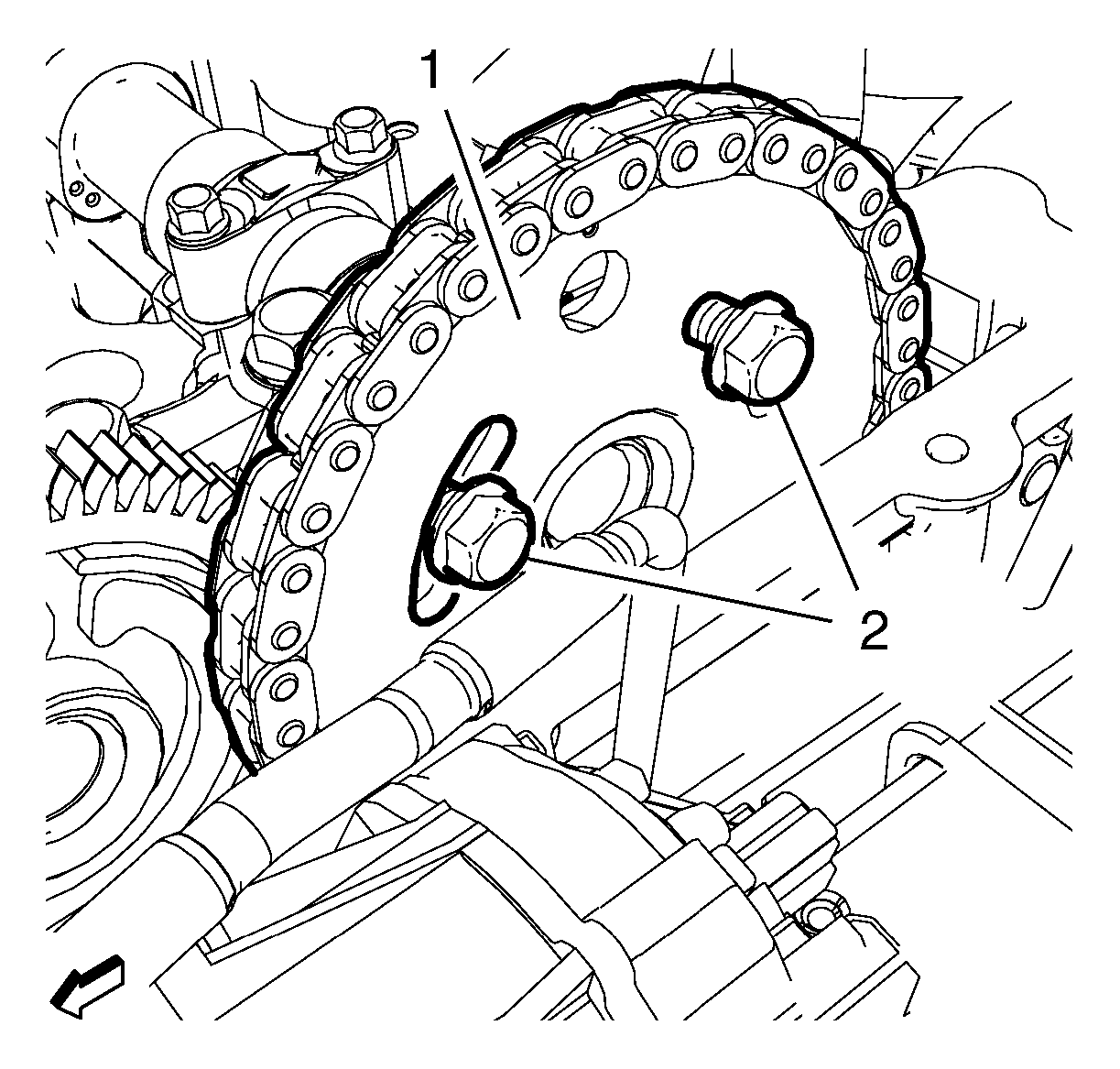

- Counterhold with a wrench at the camshaft hexagon, and tighten the 2 camshaft sprocket bolts (2) to 25 N.m (18 lb ft).
- Remove the EN-51143 fixing tool (1).
- Raise the vehicle.
- Remove the 2 bolts (3).
- Remove the EN-51140 fixing tool (2).
- Install the 4 crankshaft pulley bolts (1) and rotate the crankshaft 360 degrees in direction of arrow. Use a pry bar at the 4 crankshaft pulley bolts (1).
- Lower the vehicle.

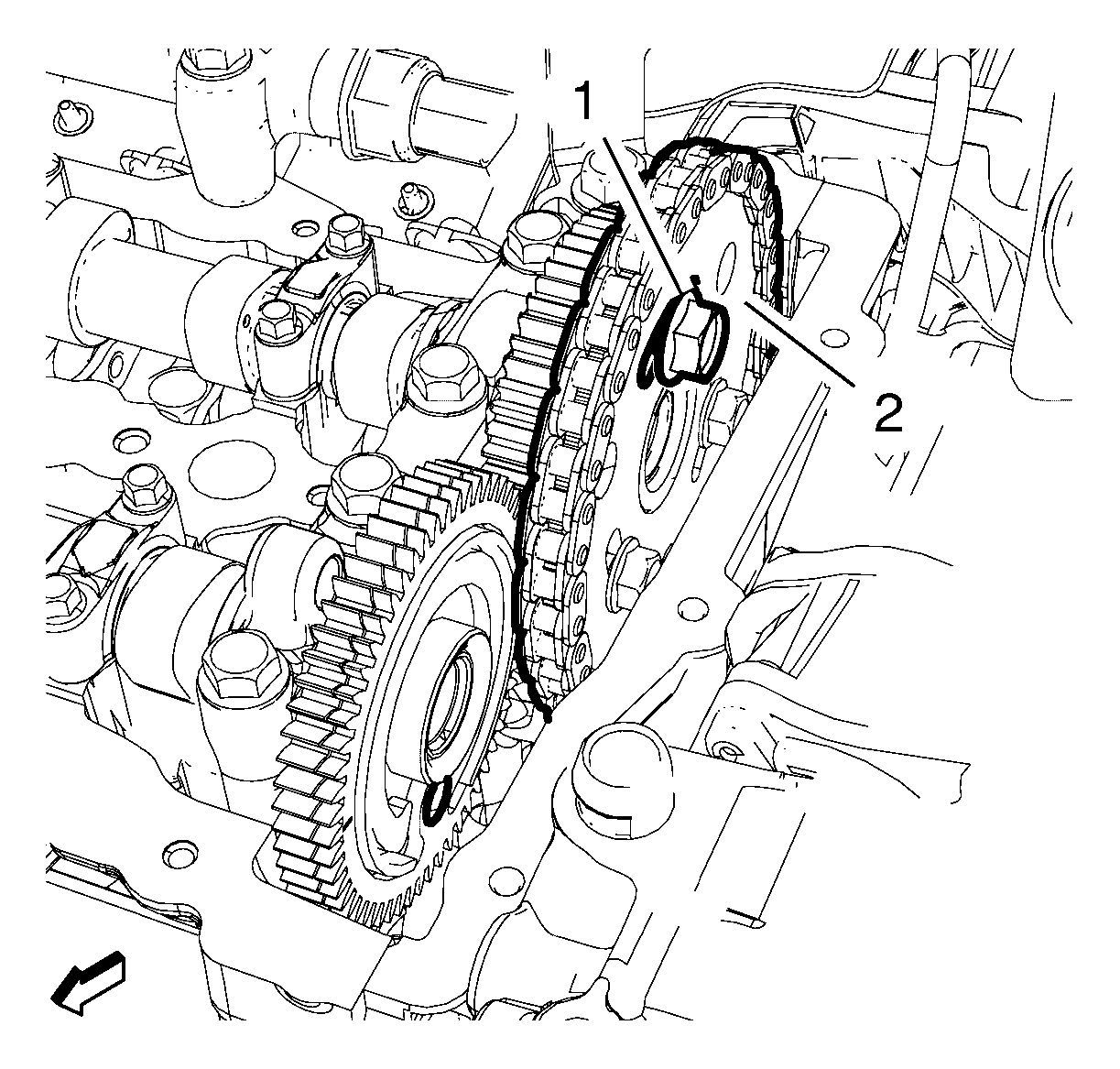

- Counterhold with a wrench at the camshaft hexagon, and tighten the camshaft sprocket bolt (1) to 25 N.m (18 lb ft).
- Rotate the crankshaft 360 degrees in direction of arrow. Use a pry bar at the 4 crankshaft pulley bolts (1).
- Remove the 4 crankshaft pulley bolts (1).
- Install EN-51140 fixing tool (2).
- Install the fixing pin into the engine block bore (1) and tighten the 2 bolts (3).
- Lower the vehicle.
- Install the EN-51143 fixing tool (1).
- Remove the EN-51143 fixing tool (1).
- Raise the vehicle.
- Remove the 2 bolts (3).
- Remove the EN-51140 fixing tool (2).
- Install Crankshaft Pulley. Refer to Crankshaft Pulley Replacement
- Install Camshaft Housing. Refer to Camshaft Housing Replacement
- Install Throttle Body Assembly. Refer to Throttle Body Assembly Replacement
- Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (KL9)
NOTE:
Before installation, check the components of the timing chain system for damage and wear.
CAUTION:
Refer to Fastener Caution .
