Water Pump Installation
WARNING: This page is about a different variant/trim than selected.
- Clean the sealing surfaces of the water pump and the engine block.

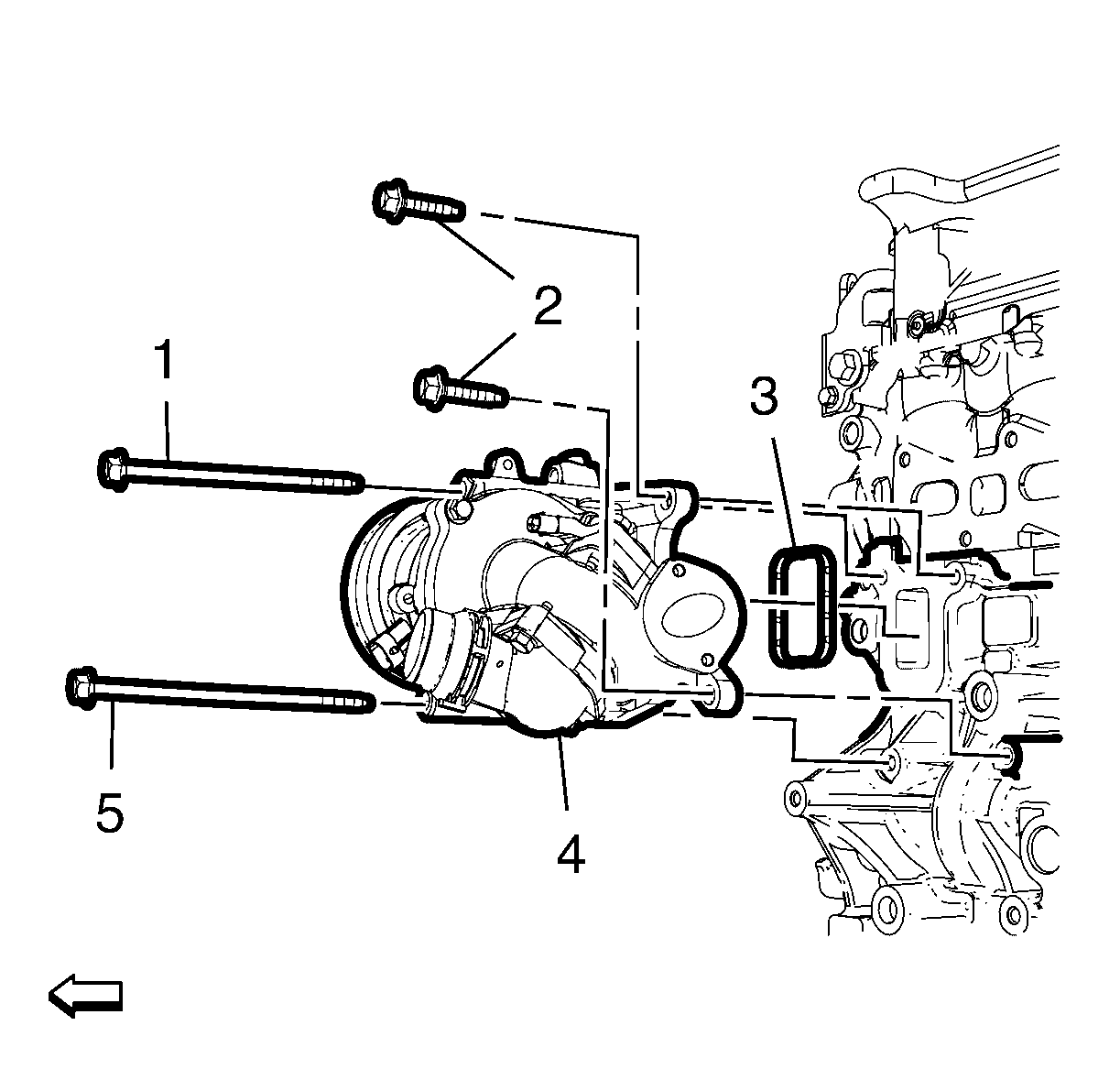

- Install a NEW water pump seal (3) into the water pump housing (4).
- Install the water pump (4).
- Install the 4 water pump bolts (1, 2, 5) and tighten to 25 N.m (18 lb ft).
CAUTION:
Refer to Fastener Caution .
NOTE:
Mind the different bolt lengths.
