Water Pump Disassemble

WARNING: This page is about a different variant/trim than selected.

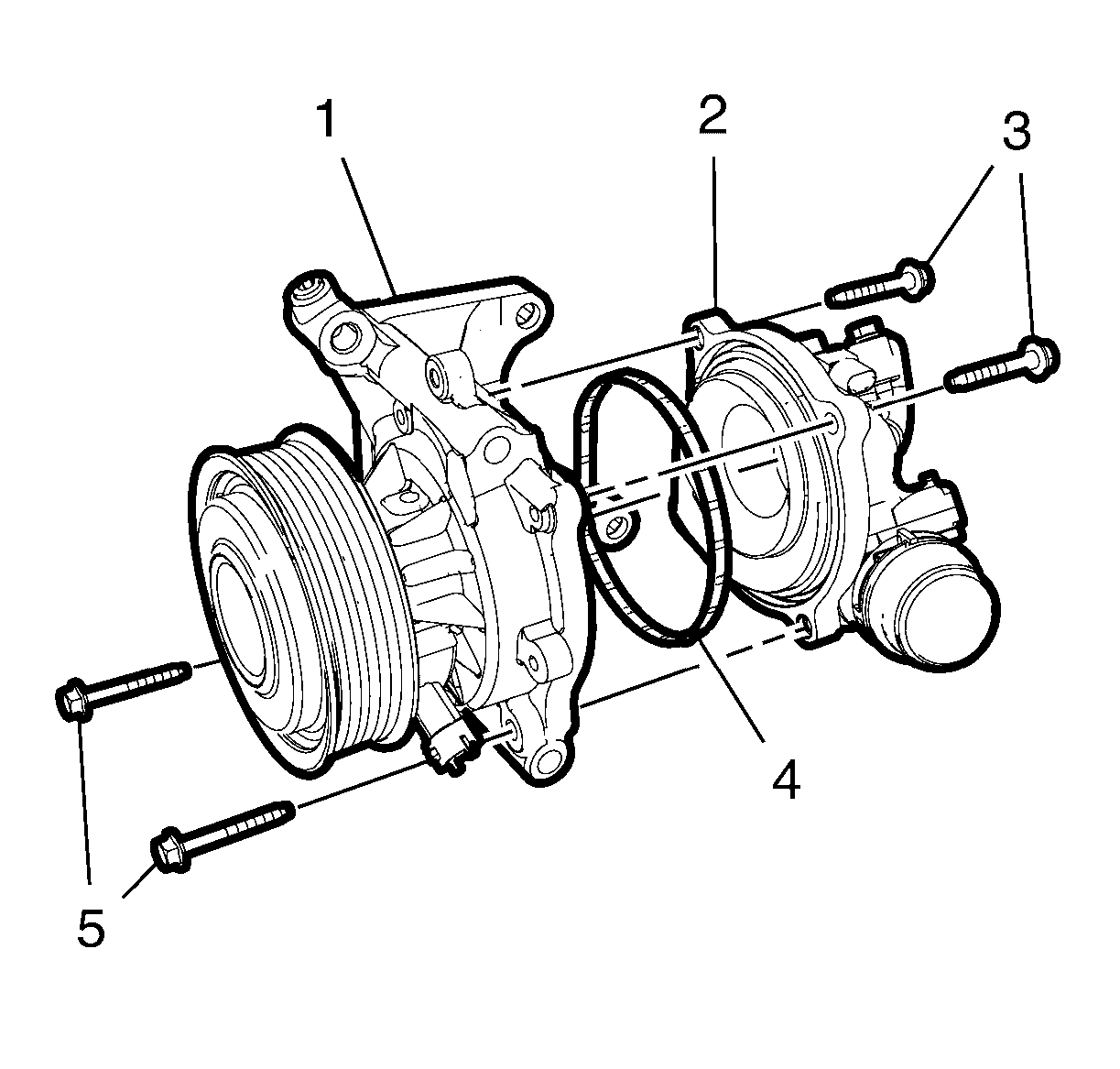

    Fig 1: Water Pump, Bolts And Seal
    GM3283916Courtesy of GENERAL MOTORS COMPANY
  1. Remove the 4 water pump bolts (3, 5).
  2. Remove the thermostat housing (2) from the water pump (1).
  3. Remove and DISCARD the water pump seal (4).
