Inspection Procedure
WARNING: This page is about a different variant/trim than selected.

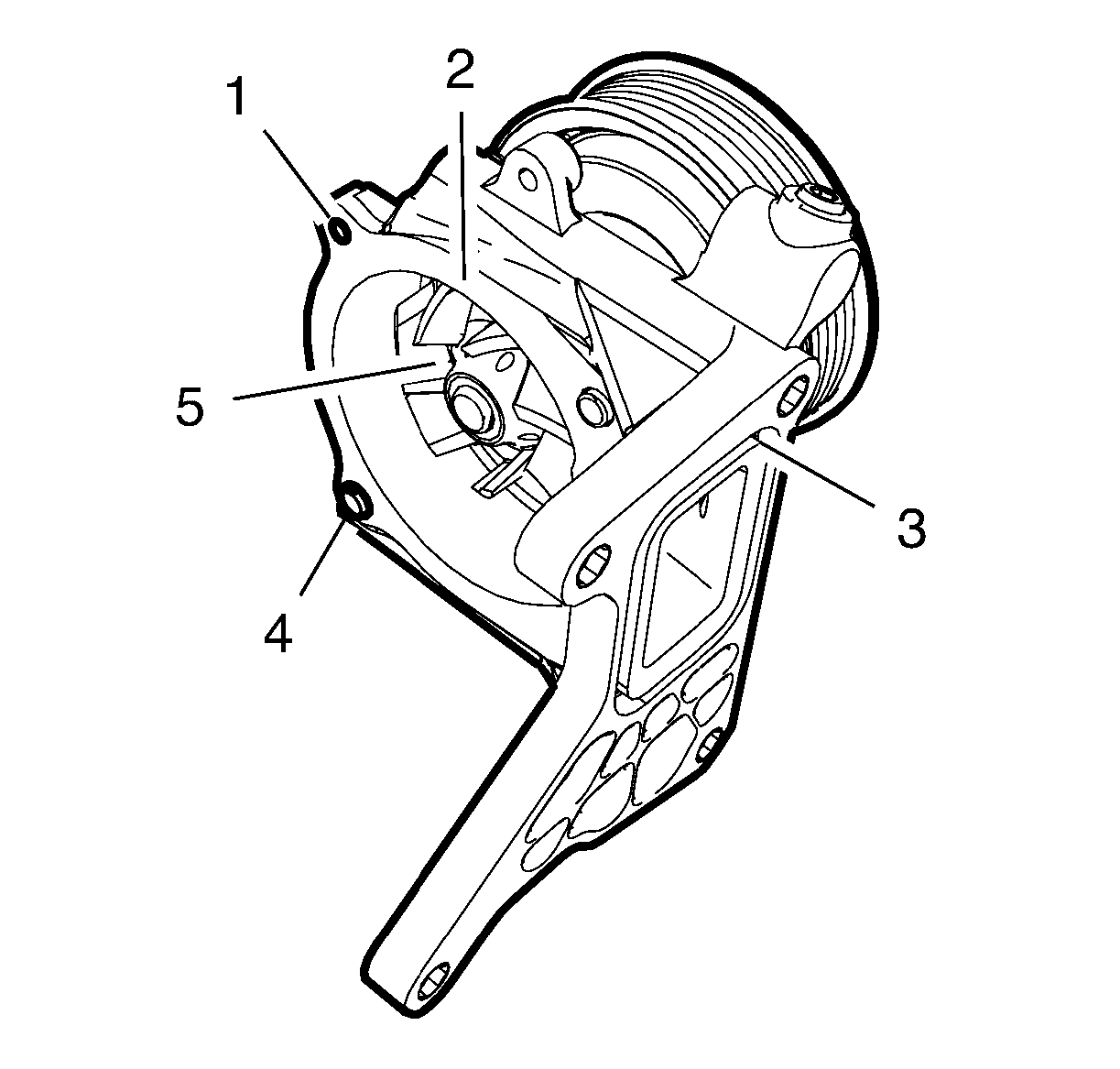

- Rotate the water pump hub (5).
- Inspect the exterior of the water pump for the following:
- Damage to the water pump bolt holes (1)
- Damage to the water pump gasket sealing surface (2, 3)
- Damage or deformations of the location pin (4)
- Damage, corrosion or restrictions
- Repair or replace the water pump as necessary.
NOTE:
The water pump hub and impeller should turn straight and smoothly. If the hub wobbles, is noisy, or feels rough when rotated, replace the water pump.
