Valve Lifter Installation

WARNING: This page is about a different variant/trim than selected.
  1. Coat the 16 valve lifters with engine oil.
    2. Fig 1: Valve Rocker Arms And Valve Lifters
    GM2191139Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Clip in the valve lifter to the valve lifter roller. Mind to the centering link on retainer spring (3).

  2. Install the 16 valve lifters (2) to the valve lifter roller (1).

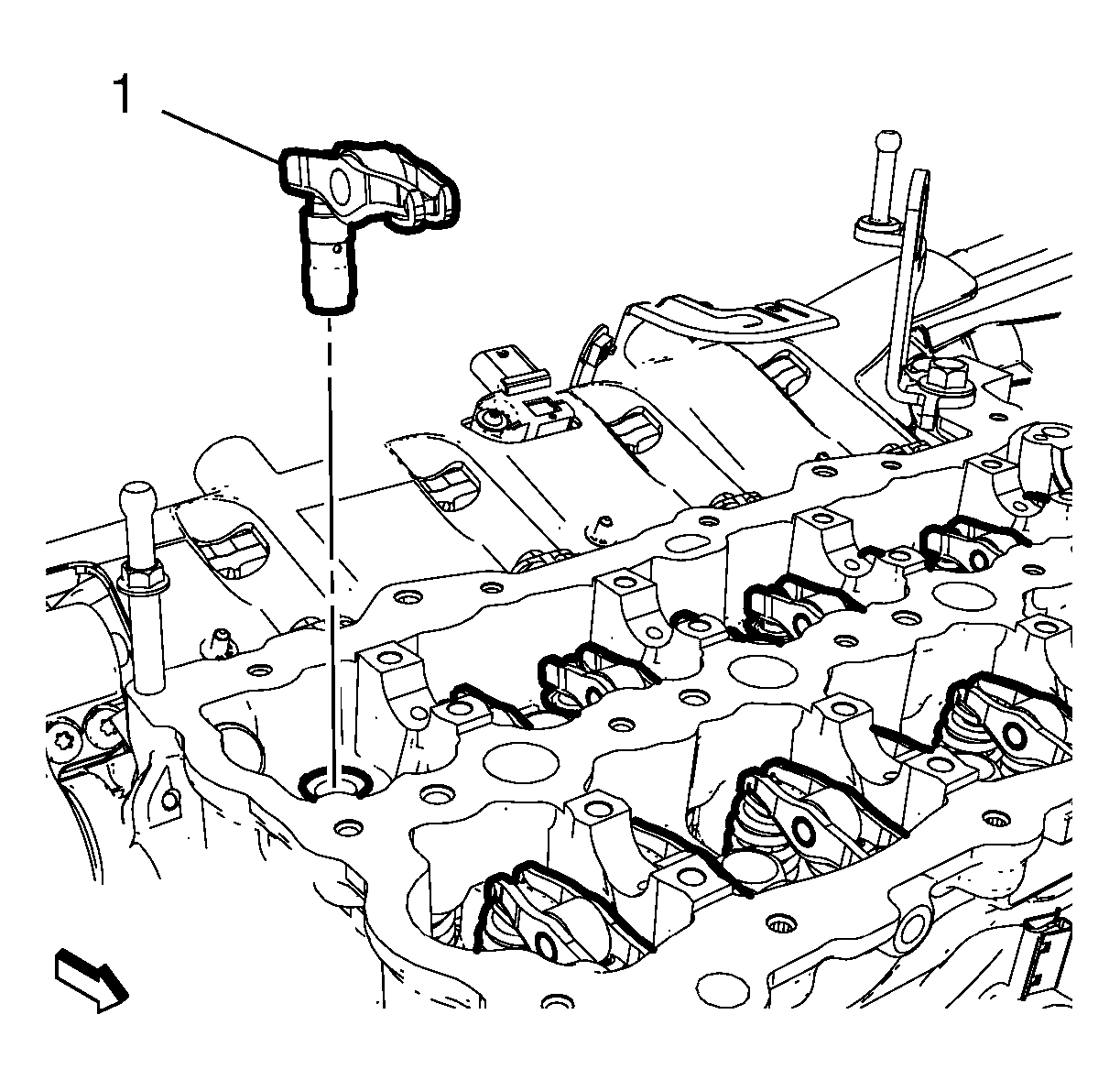

    3. Fig 2: Valve Lifter Roller Assemblies
    GM3282714Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If the valve lifters or valve lifter rollers are reused, the valve lifter or valve lifter roller must be installed in their original position.

  3. Install the 16 valve lifter with valve lifter roller (1) in the order as they was removed.
