Turbocharger Oil Feed Pipe Installation

WARNING: This page is about a different variant/trim than selected.

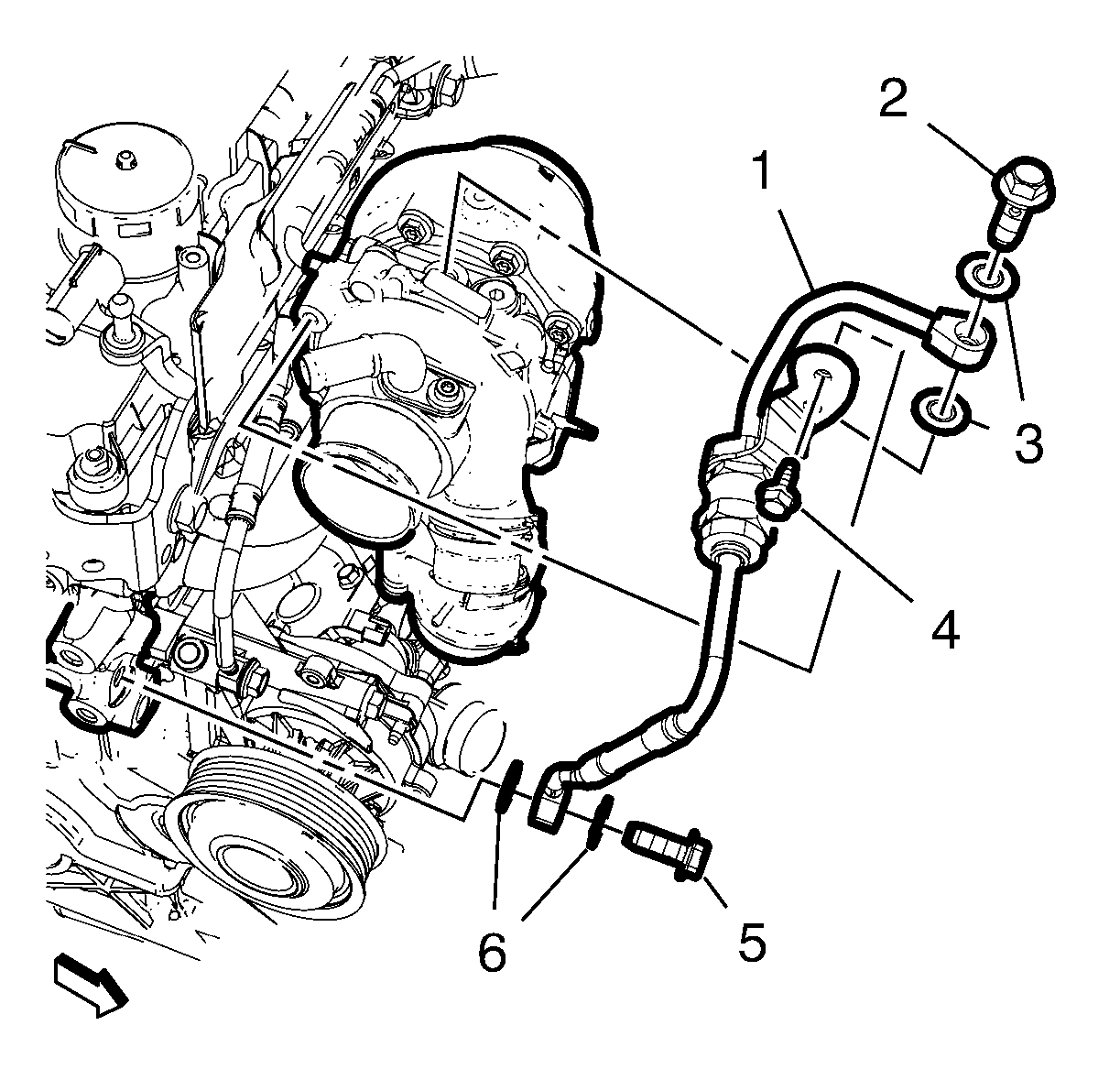

    Fig 1: Turbocharger Oil Feed Pipe And Components
    GM2900098Courtesy of GENERAL MOTORS COMPANY
  1. Install the turbocharger oil feed pipe (1).
  2. Install the turbocharger oil feed pipe bracket bolt (4) but do not tighten yet.
  3. Install the 2 NEW turbocharger oil feed pipe gaskets (6).
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the turbocharger oil feed hollow bolt (5) and tighten to 25 N.m (18 lb ft).
  5. Install the 2 NEW turbocharger oil feed pipe gaskets (3).
  6. Install the turbocharger oil feed pipe hollow bolt (2) and tighten to 25 N.m (18 lb ft).
  7. Tighten the turbocharger oil feed pipe bracket bolt (4) to 10 N.m (89 lb in).
