Turbocharger Installation

WARNING: This page is about a different variant/trim than selected.
Fig 1: Turbocharger And Components
GM4537987Courtesy of GENERAL MOTORS COMPANY
  1. Install NEW Turbocharger Gasket (9)
  2. Position the turbocharger to the turbocharger oil return pipe.
  3. Install Turbocharger (5) @ Exhaust Manifold
    4. CAUTION:

    Refer to Fastener Caution

  4. Install and tighten Turbocharger Nuts (1, 8) (Qty: 3) to 30 N.m (22 lb ft)
  5. Install NEW Turbocharger Coolant Feed Pipe Gaskets (7) (Qty: 2)
  6. Install and tighten Turbocharger Coolant Feed Pipe Hollow Screw (6) to 25 N.m (18 lb ft)
  7. Connect Thermostat Bypass Hose (3) @ Thermostat Bypass Pipe
  8. Install Thermostat Bypass Hose Clamp (4)
    9. Fig 2: Turbocharger Oil Return Pipe Bolts
    GM4421776Courtesy of GENERAL MOTORS COMPANY
  9. Install and tighten Turbocharger Oil Return Pipe Bolt (1) to 10 N.m (89 lb in)
  10. Tighten Turbocharger Oil Return Pipe Bolt (2) to 25 N.m (18 lb ft)

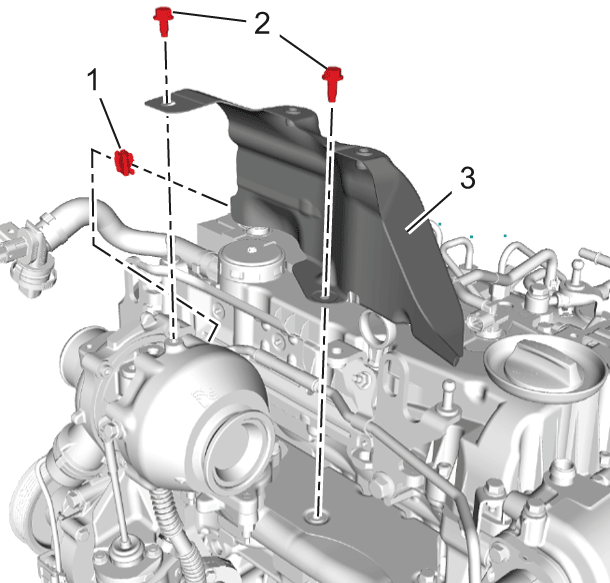

    11. Fig 3: Turbocharger Heat Shield, Bolts And Clamp
    GM4537985Courtesy of GENERAL MOTORS COMPANY
  11. Install Turbocharger Heat Shield (3)
  12. Install Turbocharger Heat Shield (3) @ Clamp (1)
  13. Install and tighten Turbocharger Heat Shield Bolts (2) (Qty: 2) to 10 N.m (89 lb in)
