Turbocharger Heat Shield Installation

WARNING: This page is about a different variant/trim than selected.

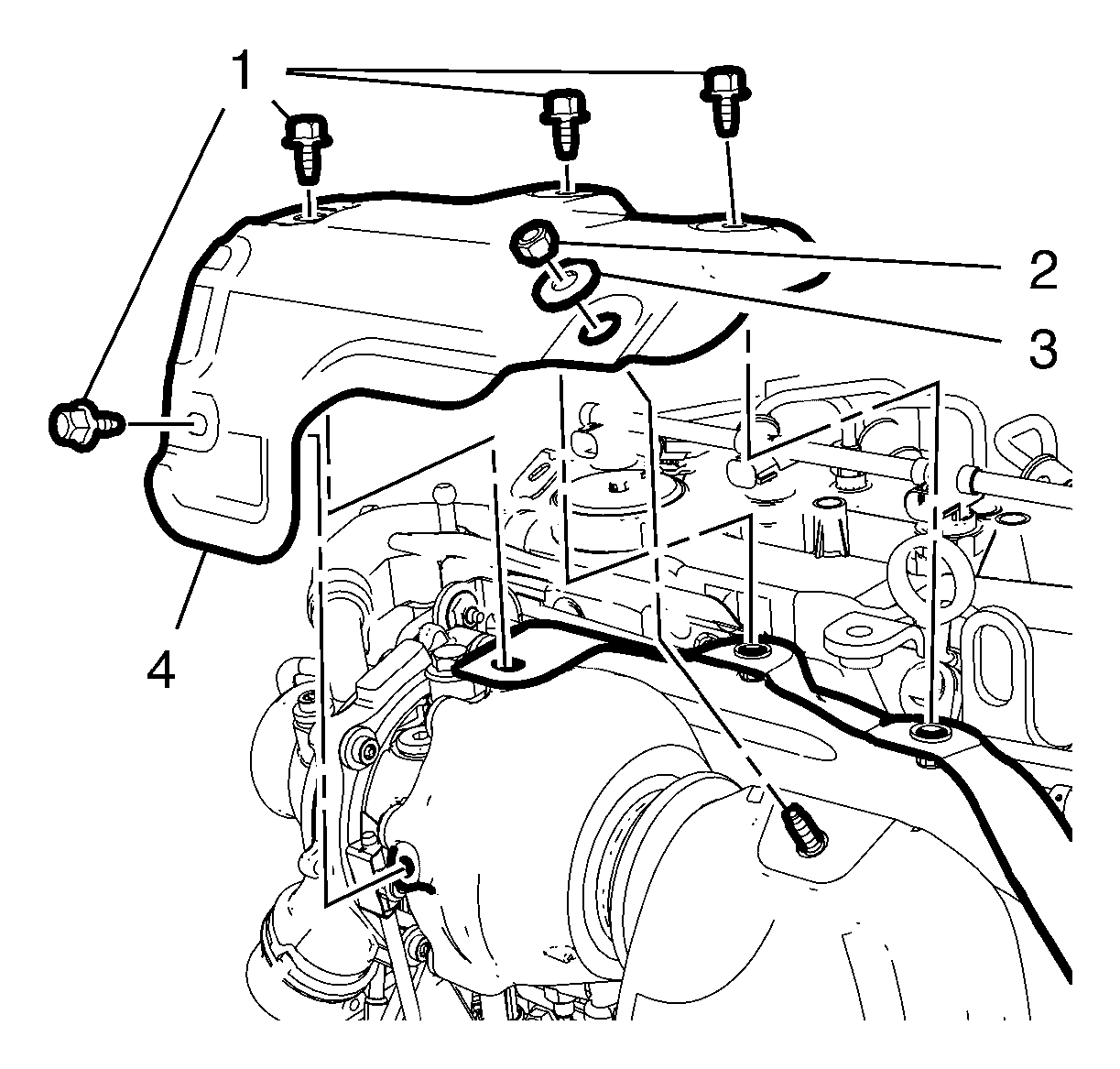

Fig 1: Turbocharger Heat Shield, Bolts, Nut And Washer

GM2900087

Courtesy of GENERAL MOTORS COMPANY

Install the turbocharger heat shield (4).
Install the turbocharger heat shield washer (3).

CAUTION:

Refer to Fastener Caution .

Install the 4 turbocharger heat shield bolts (1) and tighten to 9 N.m (80 lb in).
Install the turbocharger heat shield nut (2) and tighten to 9 N.m (80 lb in).
