Throttle Body Assembly Installation

WARNING: This page is about a different variant/trim than selected.

Clean the sealing surfaces of the throttle body assembly and the intake manifold.

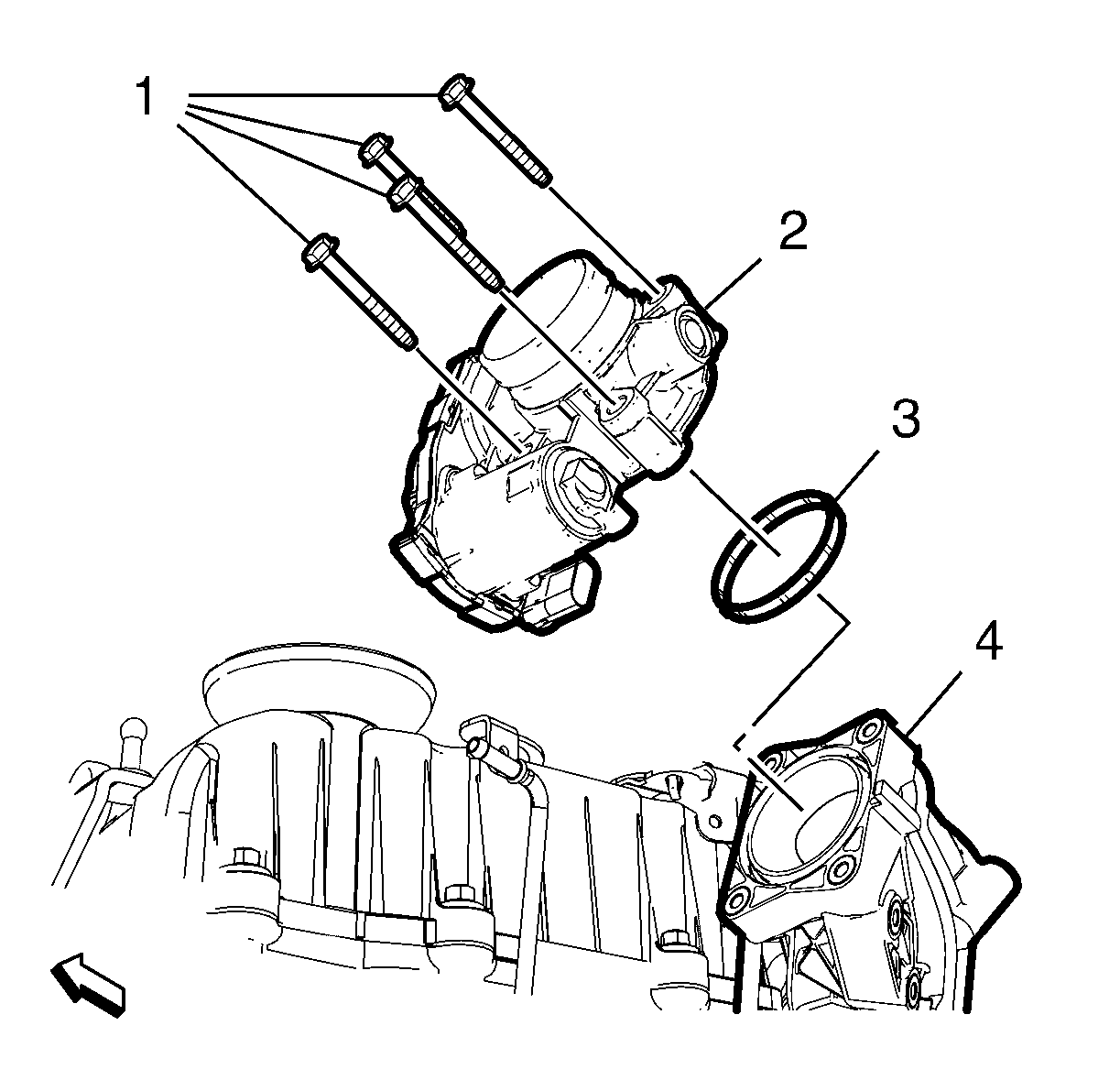

Fig 1: Throttle Body Assembly, Bolts, Gasket And Intake Manifold

GM2900111

Courtesy of GENERAL MOTORS COMPANY

Install a new throttle body assembly gasket (3) into the intake manifold (4).
Install the throttle body assembly (2).

CAUTION:

Refer to Fastener Caution .

Install the 4 throttle body assembly bolts (1) and tighten to 10 N.m (89 lb in).
