Starter Installation

WARNING: This page is about a different variant/trim than selected.

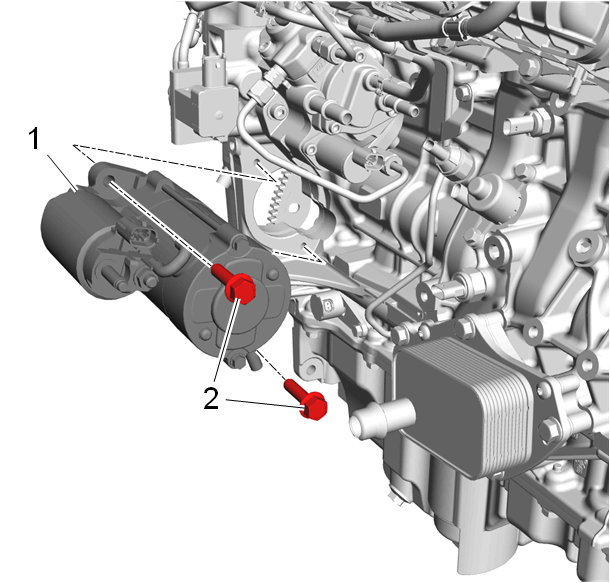

    Fig 1: Starter And Bolts
    GM3216226Courtesy of GENERAL MOTORS COMPANY
  1. Install the starter (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 2 starter bolts (2) and tighten to 22 N.m (16 lb ft).
