Piston And Connecting Rod Disassemble

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Using Piston Ring Pliers
    GM2189594Courtesy of GENERAL MOTORS COMPANY
  1. Remove the piston rings. Use a piston ring plier (1).
    2. Fig 2: Piston Rings
    GM2191182Courtesy of GENERAL MOTORS COMPANY
  2. The piston rings are ordered as followed:
    • Upper compression ring (1)
    • Lower compression ring (2)
    • Oil ring (3)

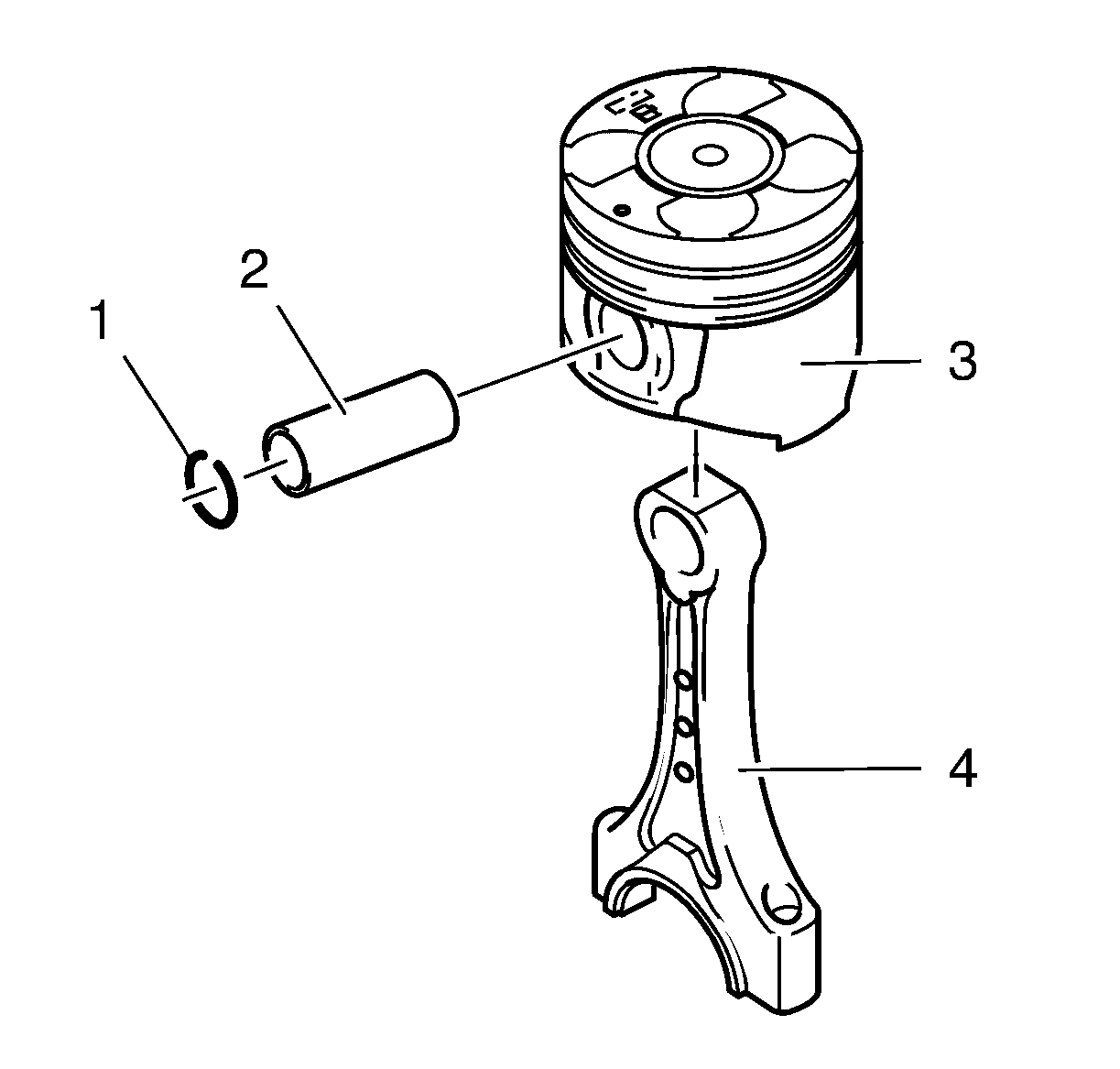

    3. Fig 3: Connecting Rod, Piston, Piston Pin And Retainer
    GM2189593Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Clamp the connecting rod.

  3. Remove the 2 piston pin retainer (1).
  4. Remove the piston pin (2).
  5. Remove the piston (3) from the connecting rod (4).
