Oil Pan Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Oil Pan Bolts
    GM3275466Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Note the difference bolt lengths.

  1. Remove the 2 oil pan bolts (3, 4).
  2. Remove the oil pan bolt (2).
  3. Remove the 12 oil pan bolts (1).

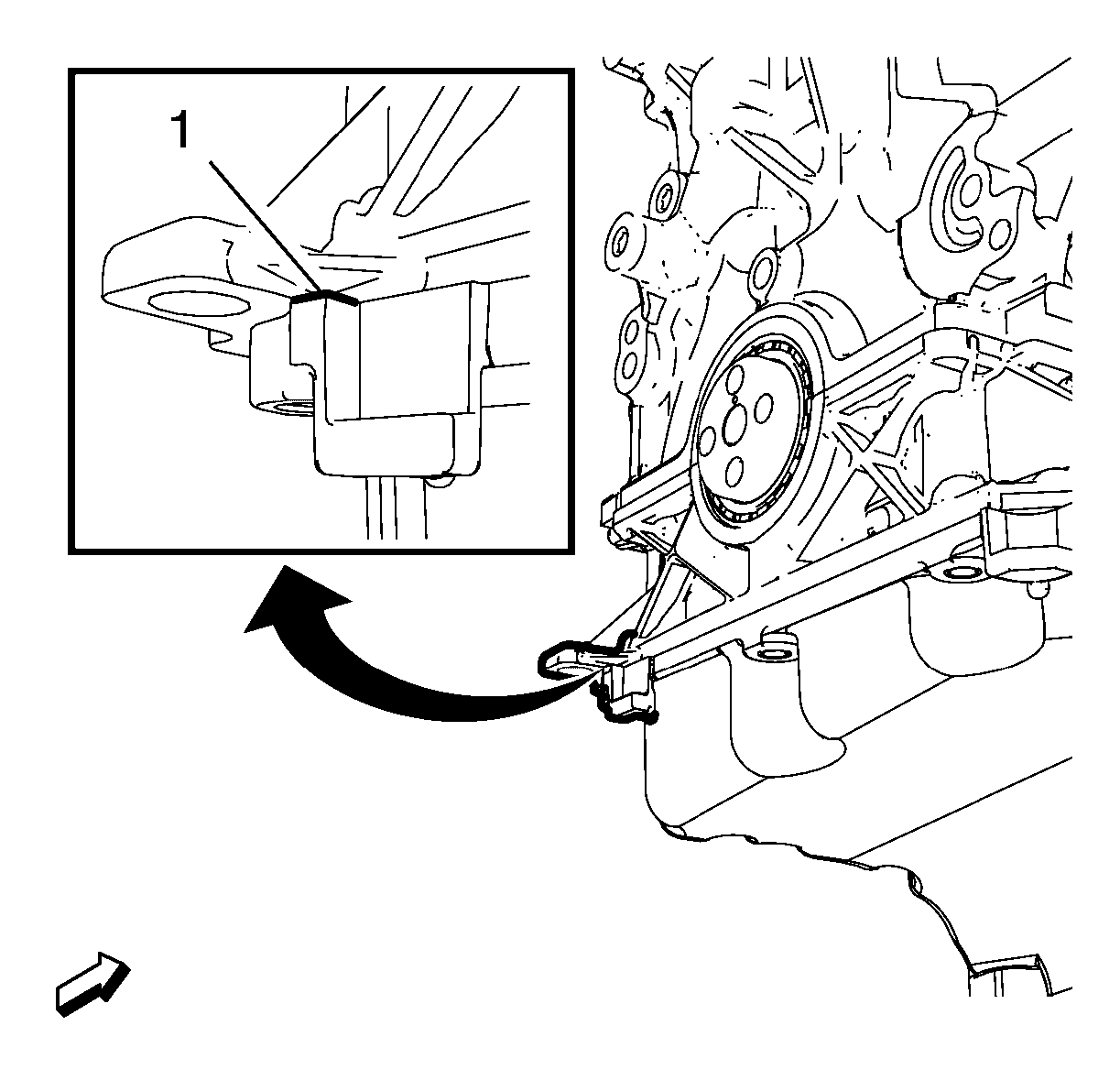

    4. Fig 2: Oil Pan And Pry Point
    GM3275467Courtesy of GENERAL MOTORS COMPANY
  4. Loosen the oil pan carefully from the lower cylinder block, use a suitable tools at the location as shown to pry (1).
  5. Remove the oil pan.
    6. Fig 3: Oil Filter Seal
    GM3283865Courtesy of GENERAL MOTORS COMPANY
  6. Remove and DISCARD the oil filter seal (1).
