Oil Pan Installation

WARNING: This page is about a different variant/trim than selected.
  1. Clean the sealing surfaces.

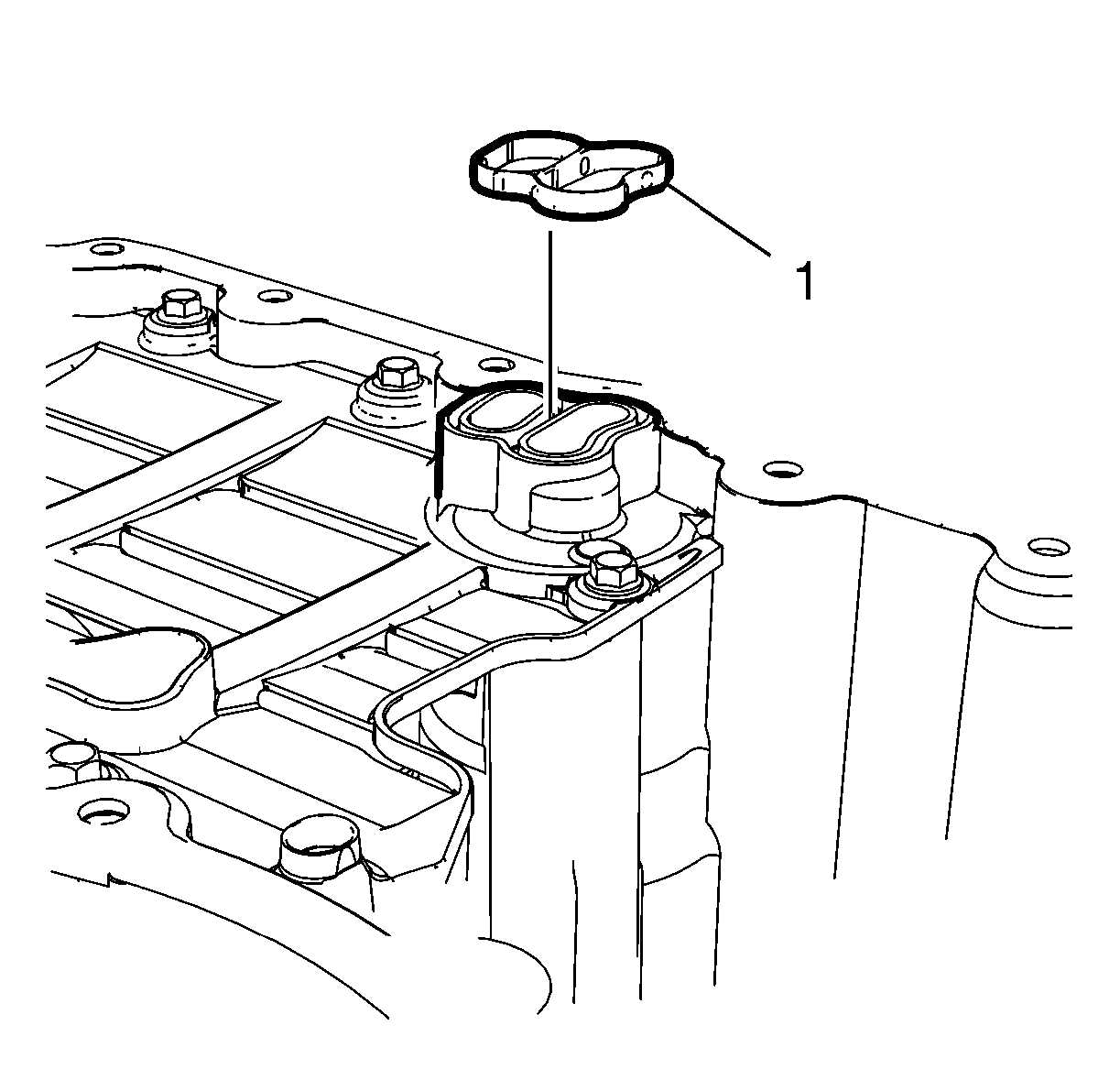

    2. Fig 1: Oil Filter Seal
    GM3283865Courtesy of GENERAL MOTORS COMPANY
  2. Install a NEW oil filter seal (1)

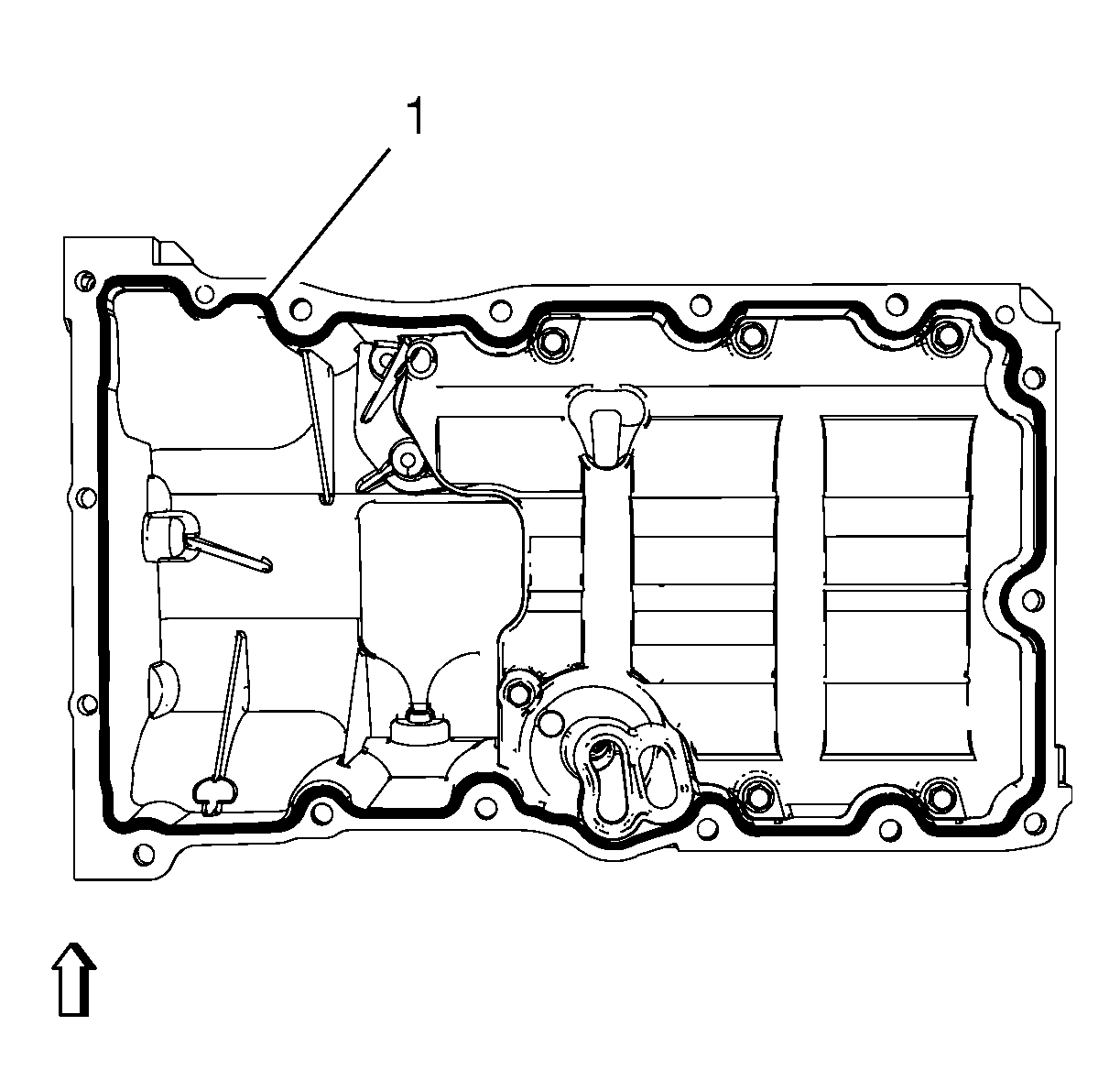

    3. Fig 2: Silicone Sealing Compound Application Area
    GM3275469Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The complete installation procedure of the oil pan should be done in 20 minutes.

  3. Apply silicone sealing compound (1) to the oil pan surface. The thickness of the sealing bead (1) should be 3.0 - 4.0 mm (0.118 - 0.157 in).

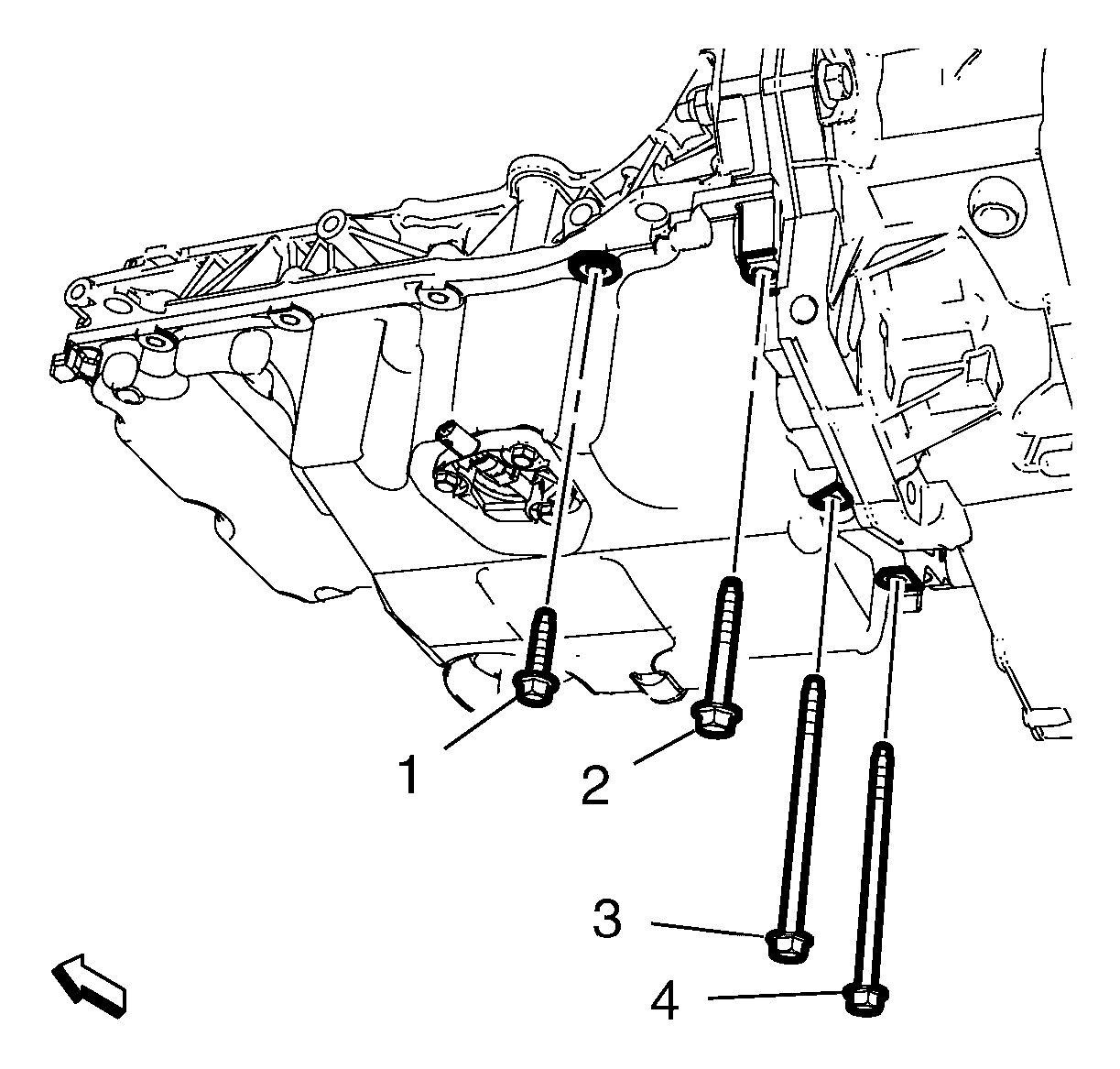

    4. Fig 3: Oil Pan Bolts
    GM3275466Courtesy of GENERAL MOTORS COMPANY
  4. Install the oil pan.
  5. Hand tighten the 12 oil pan bolts (1).
  6. Hand tighten the oil pan bolt (2).
  7. Hand tighten the 2 oil pan bolts (3, 4).

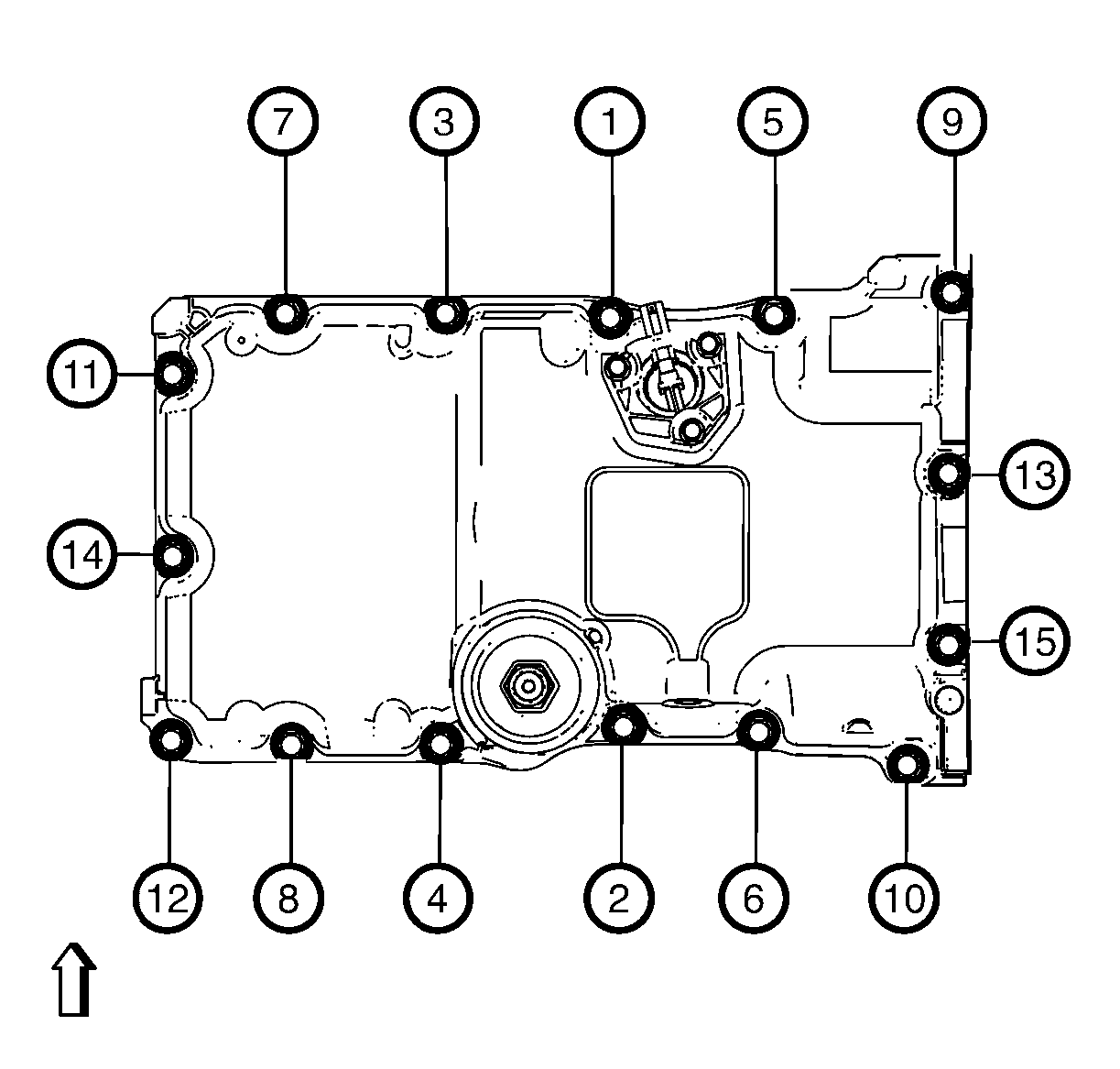

    8. Fig 4: Oil Pan Bolt Tightening Sequence
    GM3275471Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  8. Tighten the 15 oil pan bolts in sequence as shown to 25 N.m (18 lb ft).
