Intake Manifold Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Fuel Rail Fuel Pressure Sensor Wiring Harness Bracket, Fuel Rail Return Pipe Bracket And Bolts
    GM3216218Courtesy of GENERAL MOTORS COMPANY
  1. Remove the 2 fuel rail fuel pressor sensor wiring harness bracket bolts (1).
  2. Remove the fuel rail fuel pressor sensor wiring harness bracket (2).
  3. Remove the 2 fuel rail return pipe bracket bolts (3).
  4. Remove the fuel rail return pipe bracket (4).

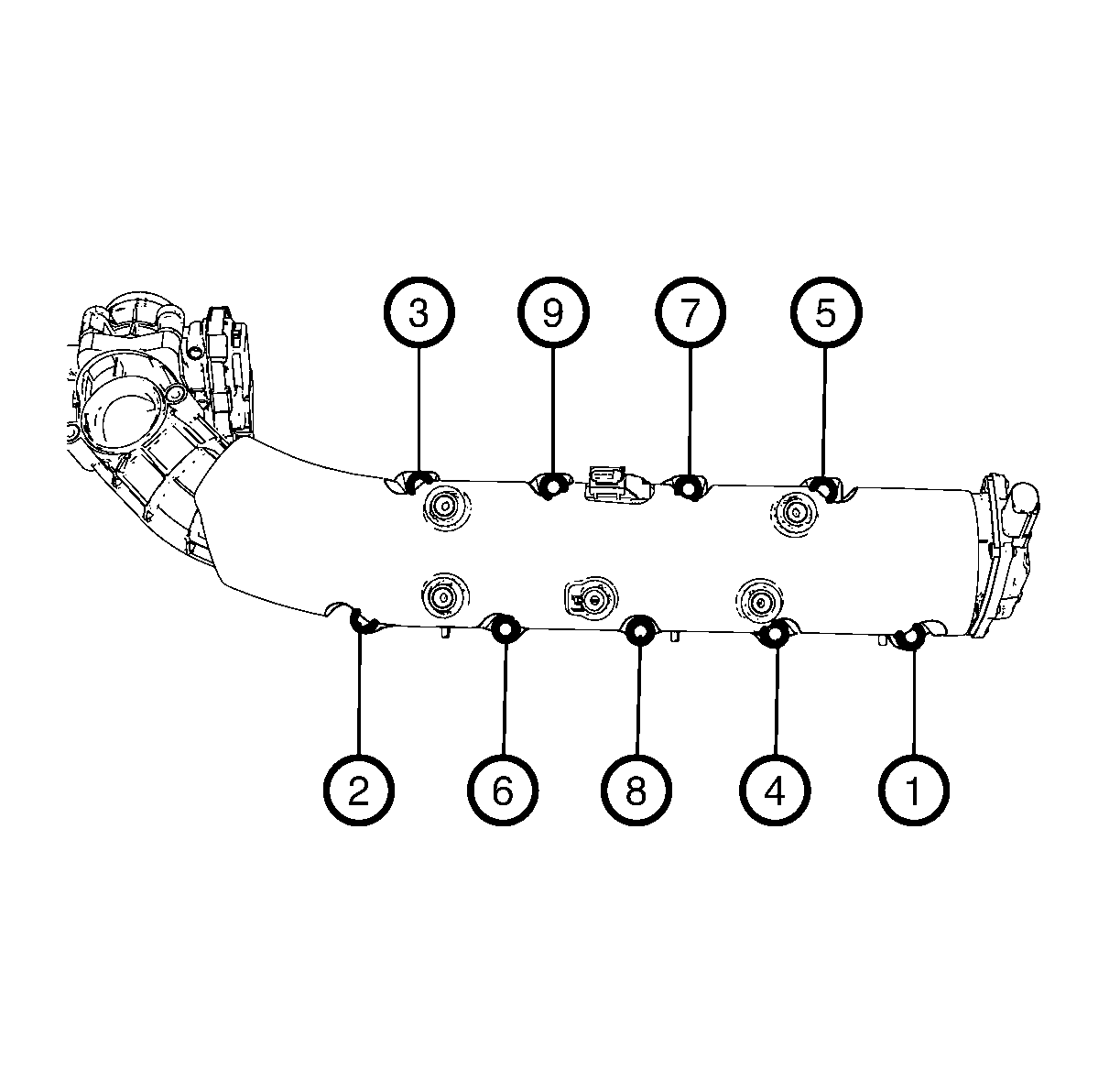

    5. Fig 2: Intake Manifold Bolt Loosening Sequence
    GM3216220Courtesy of GENERAL MOTORS COMPANY
  5. Loosen 9 intake manifold bolts in the sequence as shown.
    6. Fig 3: Intake Manifold, Bolts And Gasket
    GM3216217Courtesy of GENERAL MOTORS COMPANY
  6. Remove the 9 intake manifold bolts (1).
  7. Remove the intake manifold (2).
  8. Remove and DISCARD the intake manifold gasket (3).
