Intake Manifold Installation

WARNING: This page is about a different variant/trim than selected.

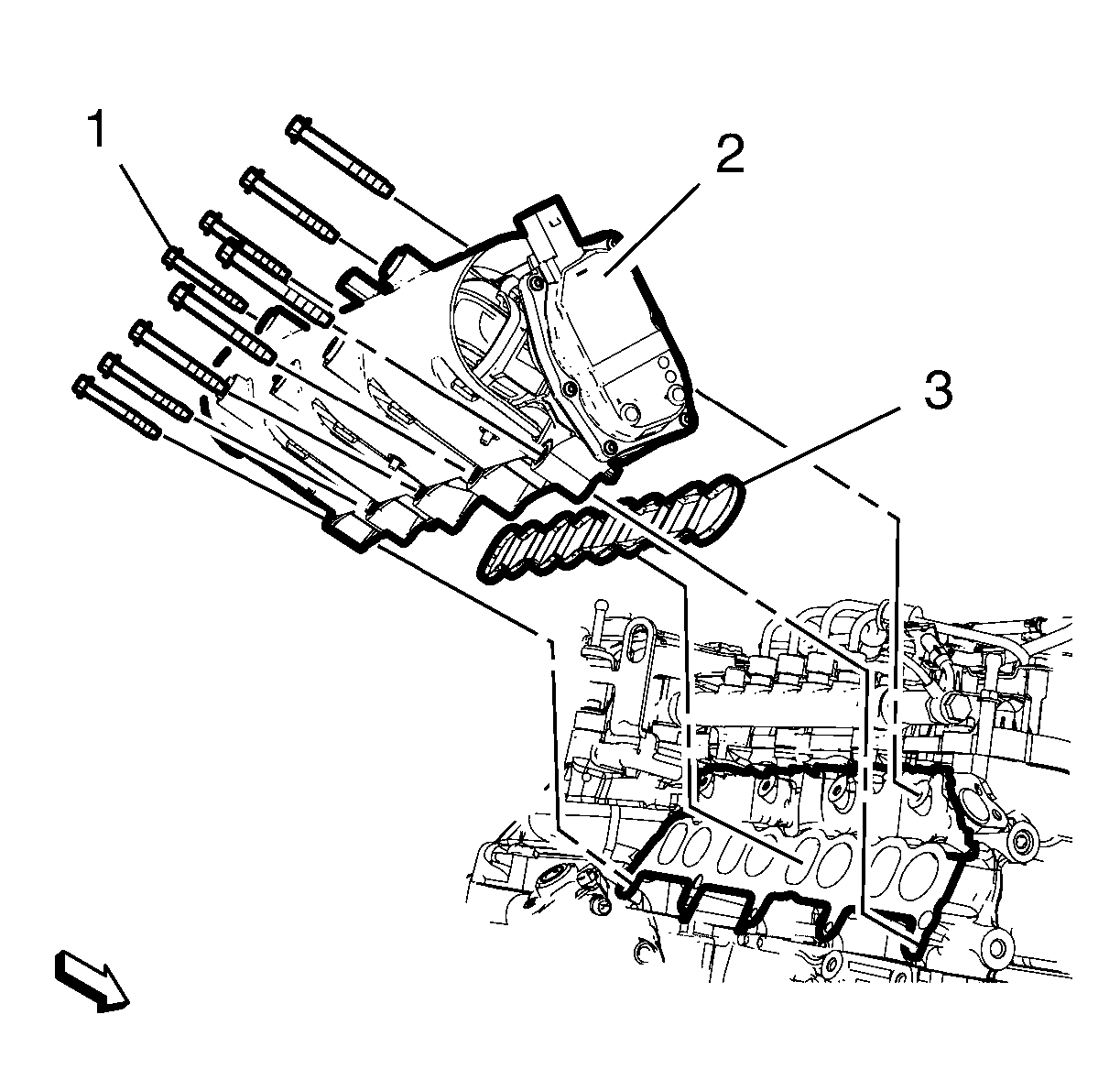

    Fig 1: Intake Manifold, Bolts And Gasket
    GM3216217Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW intake manifold gasket (3).
  2. Install the intake manifold (2).
  3. Loosely install the 9 intake manifold bolts (1).

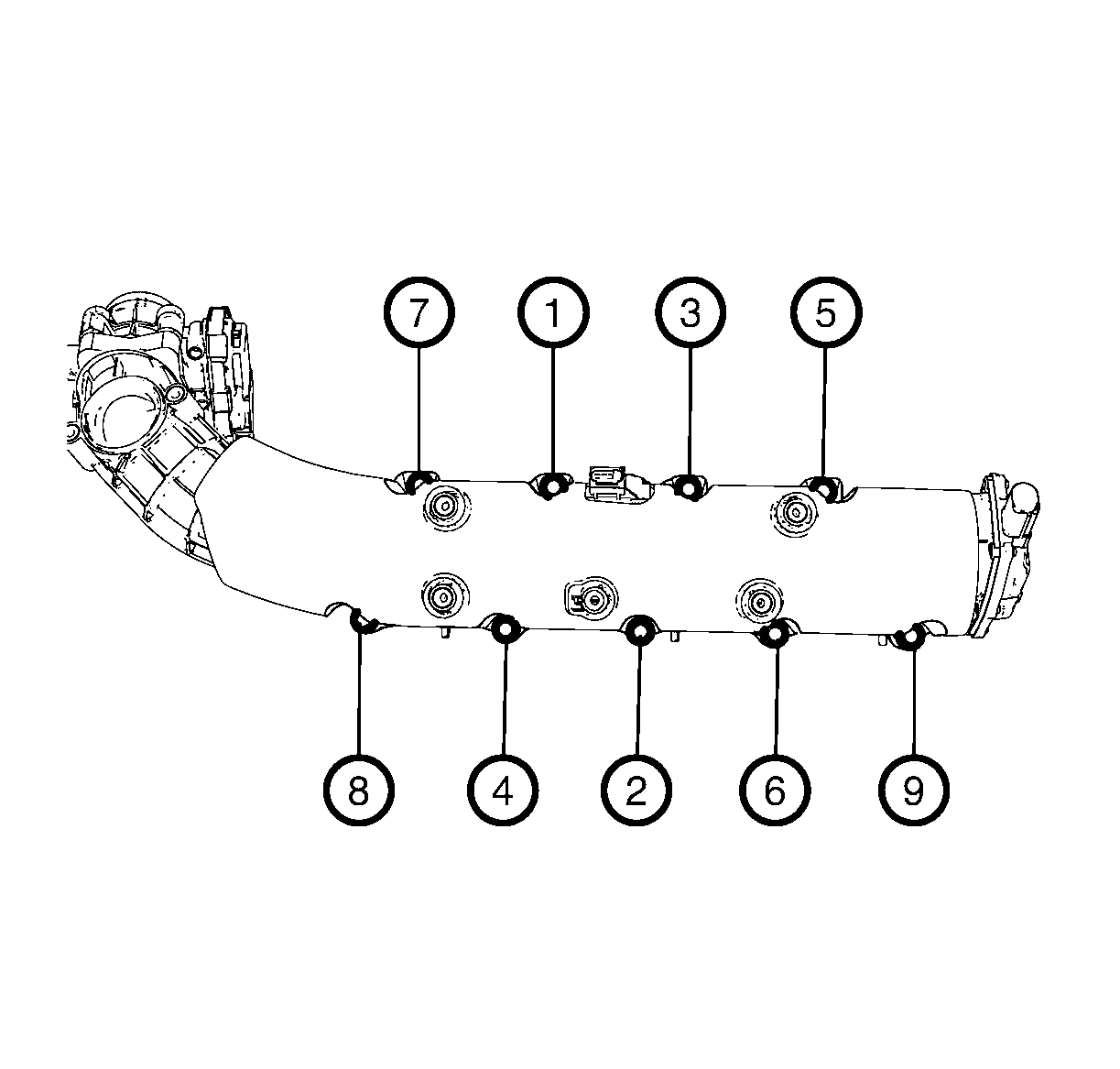

    4. Fig 2: Intake Manifold Bolt Tightening Sequence
    GM3216223Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Tighten the 9 Intake manifold bolts in sequence as shown to 12 N.m (106 lb in).

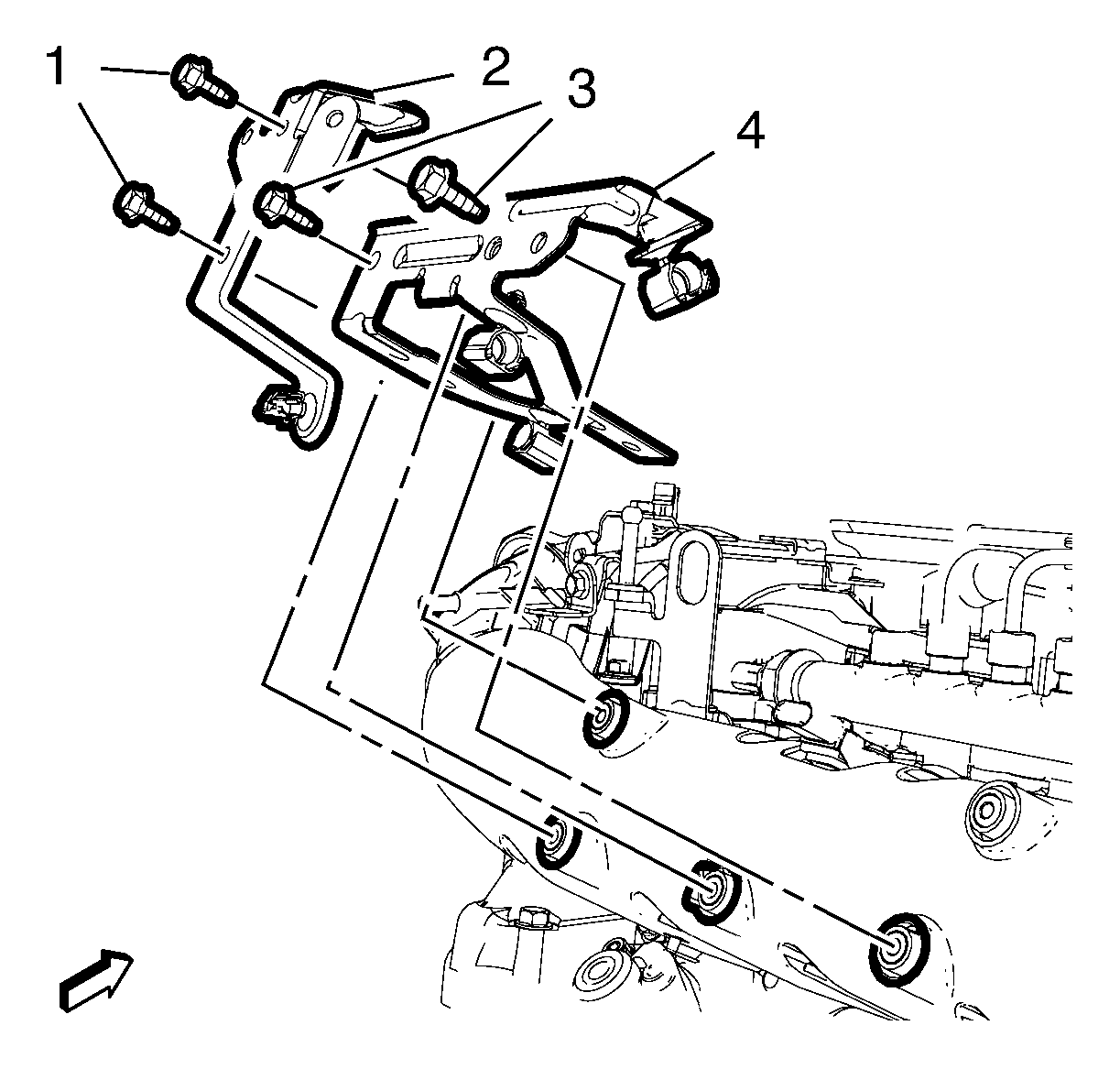

    5. Fig 3: Fuel Rail Fuel Pressure Sensor Wiring Harness Bracket, Fuel Rail Return Pipe Bracket And Bolts
    GM3216218Courtesy of GENERAL MOTORS COMPANY
  5. Install the fuel rail return pipe bracket (4).
  6. Install the 2 fuel rail return pipe bracket bolts (3) and tighten to 9 N.m (80 lb in).
  7. Install the fuel rail fuel pressor sensor wiring harness bracket (2).
  8. Install the 2 fuel rail fuel pressor sensor wiring harness bracket bolts (1) and tighten to 9 N.m (80 lb in).
