Intake Manifold Brace Installation

WARNING: This page is about a different variant/trim than selected.

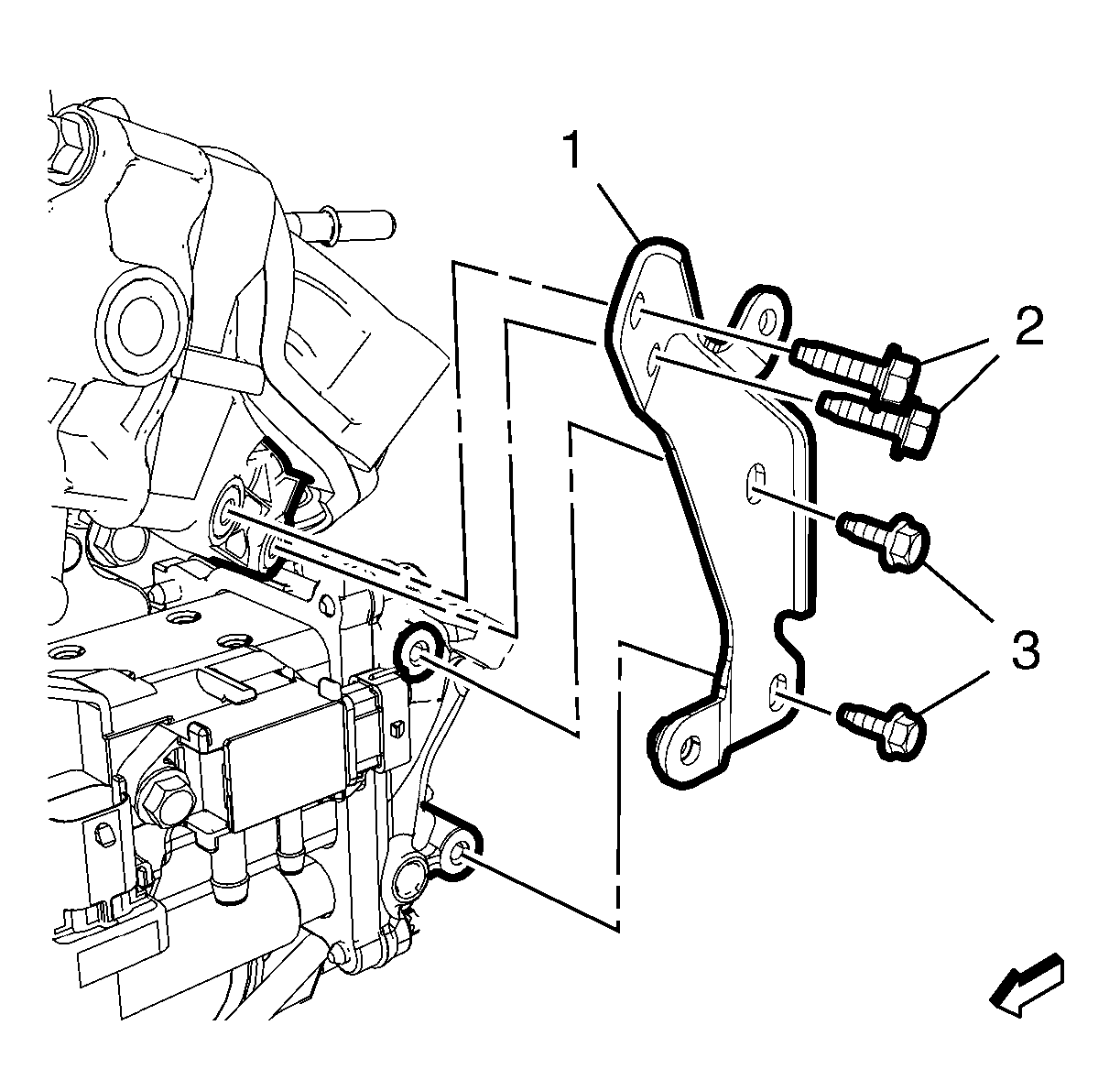

    Fig 1: Intake Manifold Brace And Bolts
    GM2900107Courtesy of GENERAL MOTORS COMPANY
  1. Install the intake manifold brace (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 4 intake manifold brace bolts (2, 3) and tighten to 10 N.m (89 lb in).
