Generator Installation

WARNING: This page is about a different variant/trim than selected.

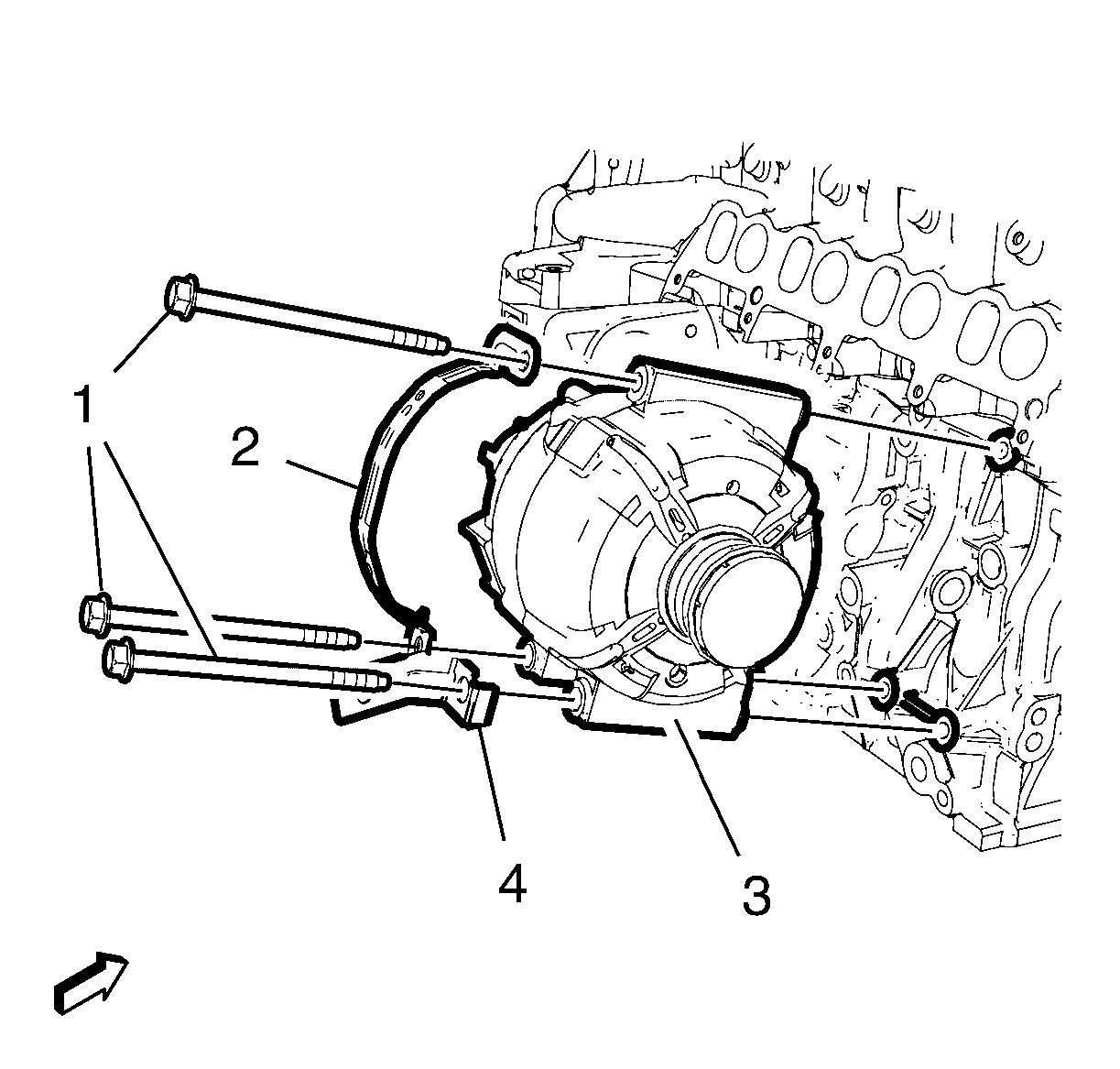

Fig 1: Generator, Bolts And Wiring Brackets

GM3216228

Courtesy of GENERAL MOTORS COMPANY

Install the generator (3).
Install the wiring harness bracket (2).
Install the nitrogen oxide sensor wire bracket (4).

CAUTION:

Refer to Fastener Caution .

Install the 3 generator bolts (1) and tighten to 22 N.m (16 lb ft).
