Fuel Return Hose Removal

WARNING: This page is about a different variant/trim than selected.

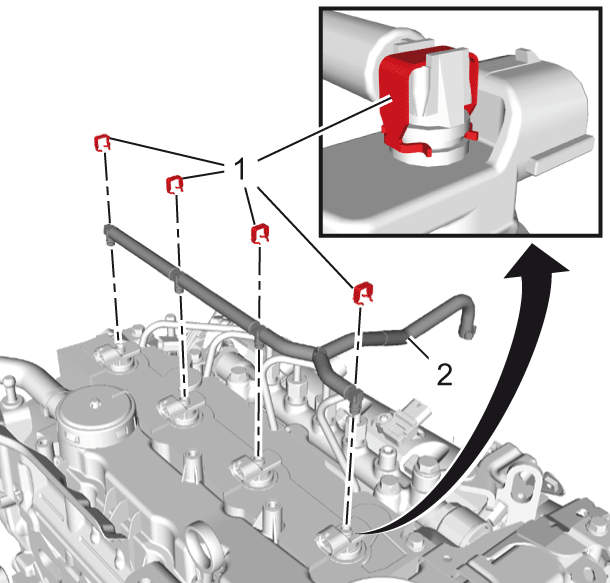

    Fig 1: Fuel Return Hose And Clamps
    GM4421877Courtesy of GENERAL MOTORS COMPANY
  1. Remove and DISCARD Fuel Return Hose Clamps (1) (Qty: 4)
  2. Unclip Fuel Return Hose (2) @ Fuel Injectors (Qty: 4)
  3. Remove Fuel Return Hose (2)
