Fuel Rail Installation

WARNING: This page is about a different variant/trim than selected.

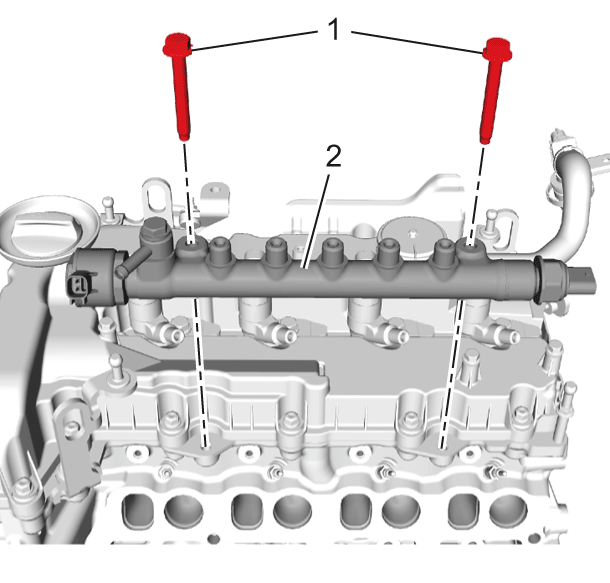

    Fig 1: Fuel Injection Fuel Rail And Bolts
    GM4421875Courtesy of GENERAL MOTORS COMPANY
  1. Install Fuel Injection Fuel Rail (2)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install and tighten Fuel Injection Fuel Rail Bolts (1) (Qty: 2) to 25 N.m (18 lb ft)
