Fuel Pressure Sensor Installation

WARNING: This page is about a different variant/trim than selected.

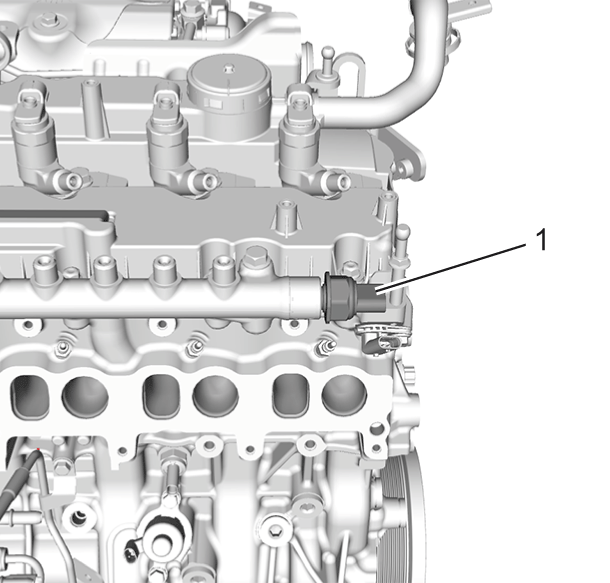

    Fig 1: Fuel Injection Fuel Rail Fuel Pressure Sensor
    GM4585063Courtesy of GENERAL MOTORS COMPANY
  1. Install NEW Fuel Injection Fuel Rail Fuel Pressure Sensor (1) - Hand tighten
    2. CAUTION:

    Refer to Component Fastener Tightening Caution

  2. Tighten Fuel Injection Fuel Rail Fuel Pressure Sensor (1) to 35 N.m (26 lb ft)
