Fuel Injection Pump Installation

WARNING: This page is about a different variant/trim than selected.

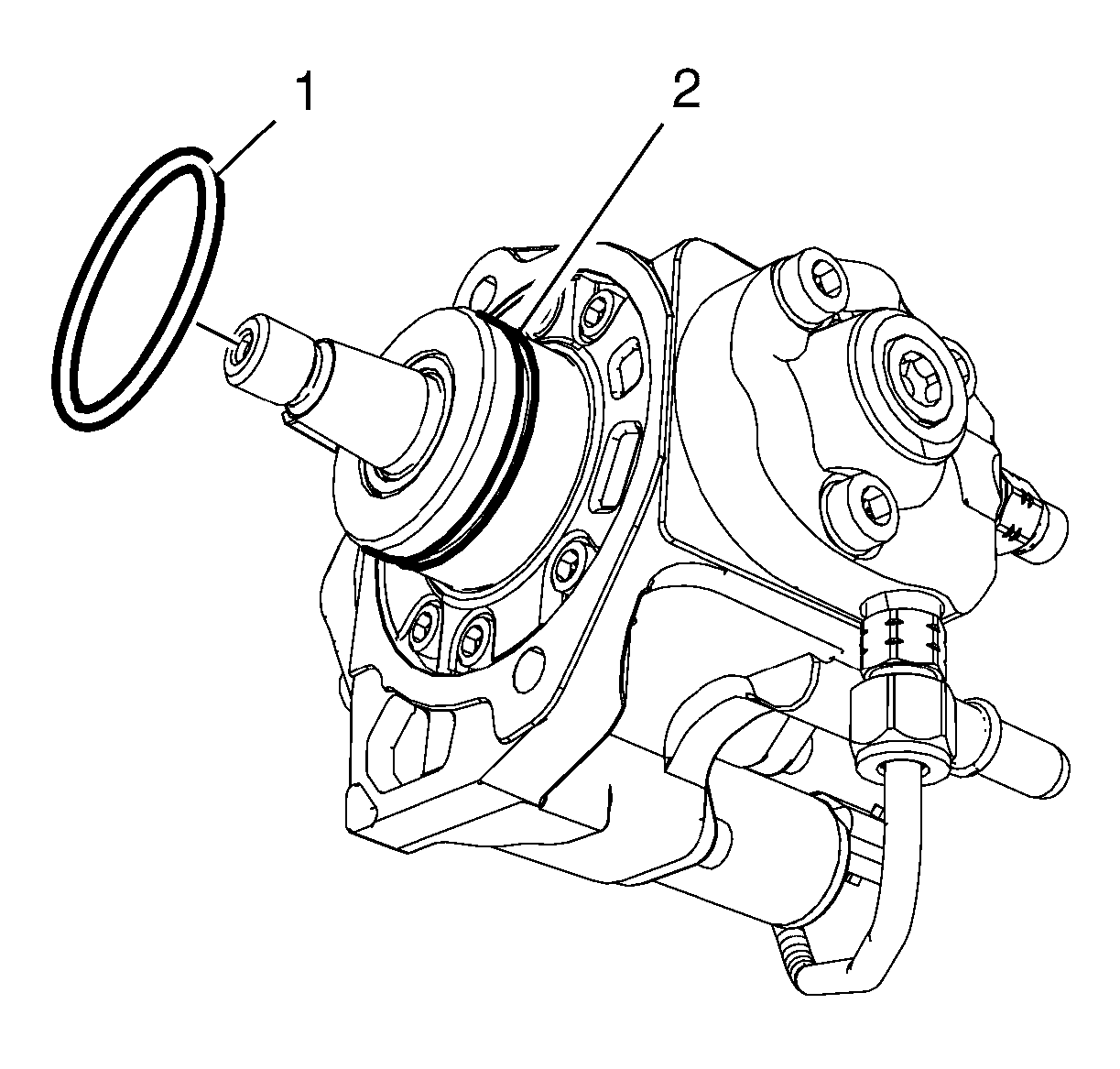

    Fig 1: Fuel Injection Pump Seal Ring And Fuel Injection Pump Sealing Groove
    GM3405285Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW fuel injection pump seal ring (1) to the fuel injection pump sealing groove (2).

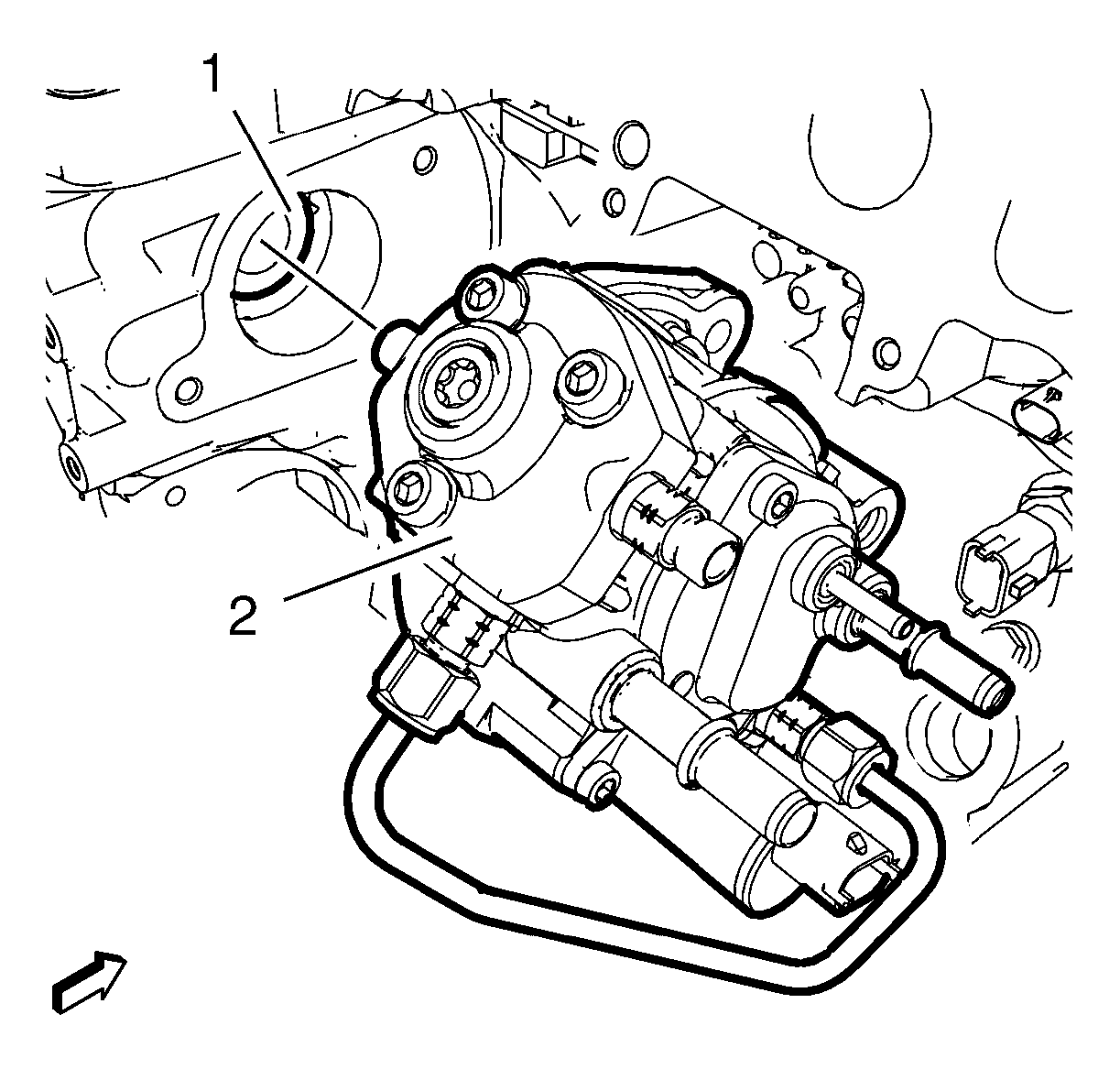

    2. Fig 2: Fuel Injection Fuel Pump
    GM3275416Courtesy of GENERAL MOTORS COMPANY
  2. Install the fuel injection pump (2).

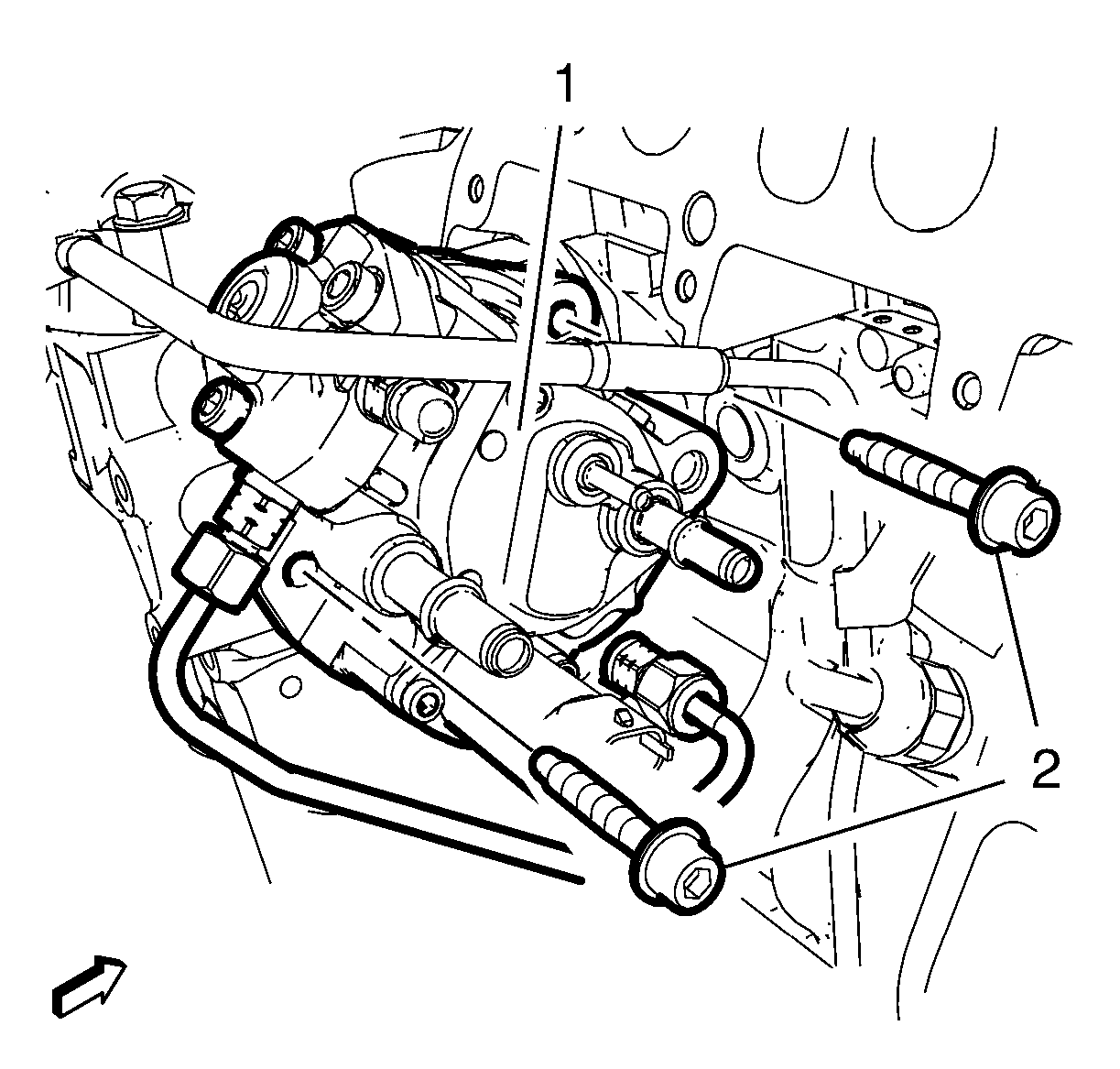

    3. Fig 3: Fuel Injection Fuel Pump And Bolts
    GM3252382Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the 2 fuel injection fuel pump bolts (2) to the fuel injection fuel pump (1) and tighten to 25 N.m (18 lb ft).
