Exhaust Temperature Sensor Installation - Position 1

WARNING: This page is about a different variant/trim than selected.

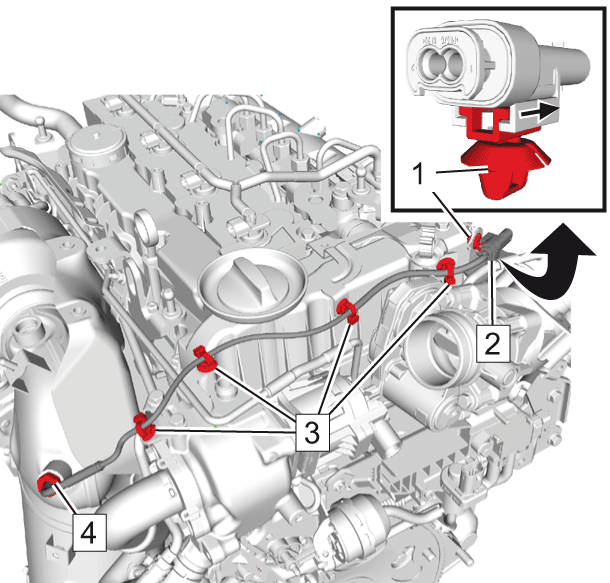

    Fig 1: Exhaust Temperature Sensor - Position 1, Electrical Connector And Retainers
    GM4421863Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install and tighten Exhaust Temperature Sensor - Position 1 (4) to 45 N.m (33 lb ft)
  2. Install Wiring Harness Retainers (3) (Qty: 4)
  3. Install Electrical Connector (2) @ Retainer (1)
