Exhaust Gas Recirculation Cooler Temperature Sensor Installation - Position 2
WARNING: This page is about a different variant/trim than selected.
NOTE:

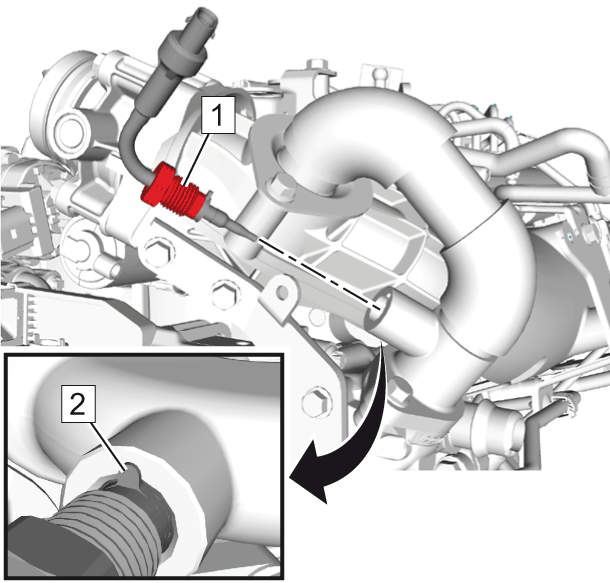

The guide lug (2) must fit the groove.
CAUTION:
Refer to Fastener Caution
Install and tighten Exhaust Gas Recirculation Cooler Temperature Sensor - Position 2 (1) to 45 N.m (33 lb ft)
