Exhaust Gas Recirculation Cooler Temperature Sensor Installation - Position 1
WARNING: This page is about a different variant/trim than selected.

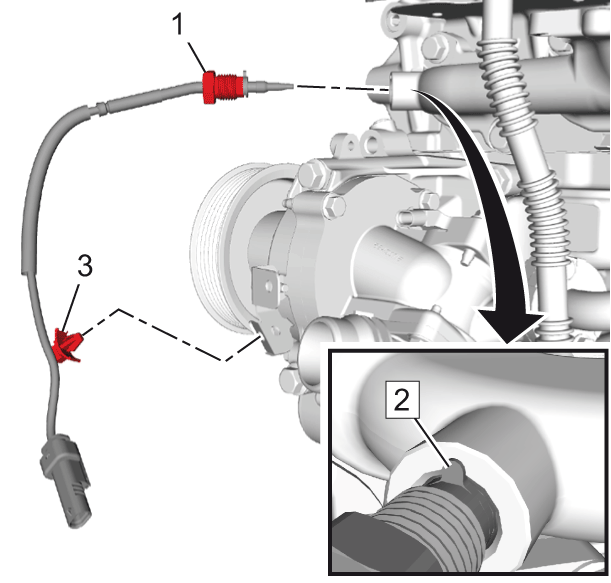

- Install and tighten Exhaust Gas Recirculation Cooler Temperature Sensor-Position 1 (1) to 45 N.m (33 lb ft)
- Install Wiring Harness Clip (3)
NOTE:
The guide lug (2) must fit the groove.
CAUTION:
Refer to Fastener Caution
