Exhaust Gas Recirculation Cooler Outlet Pipe Removal

WARNING: This page is about a different variant/trim than selected.

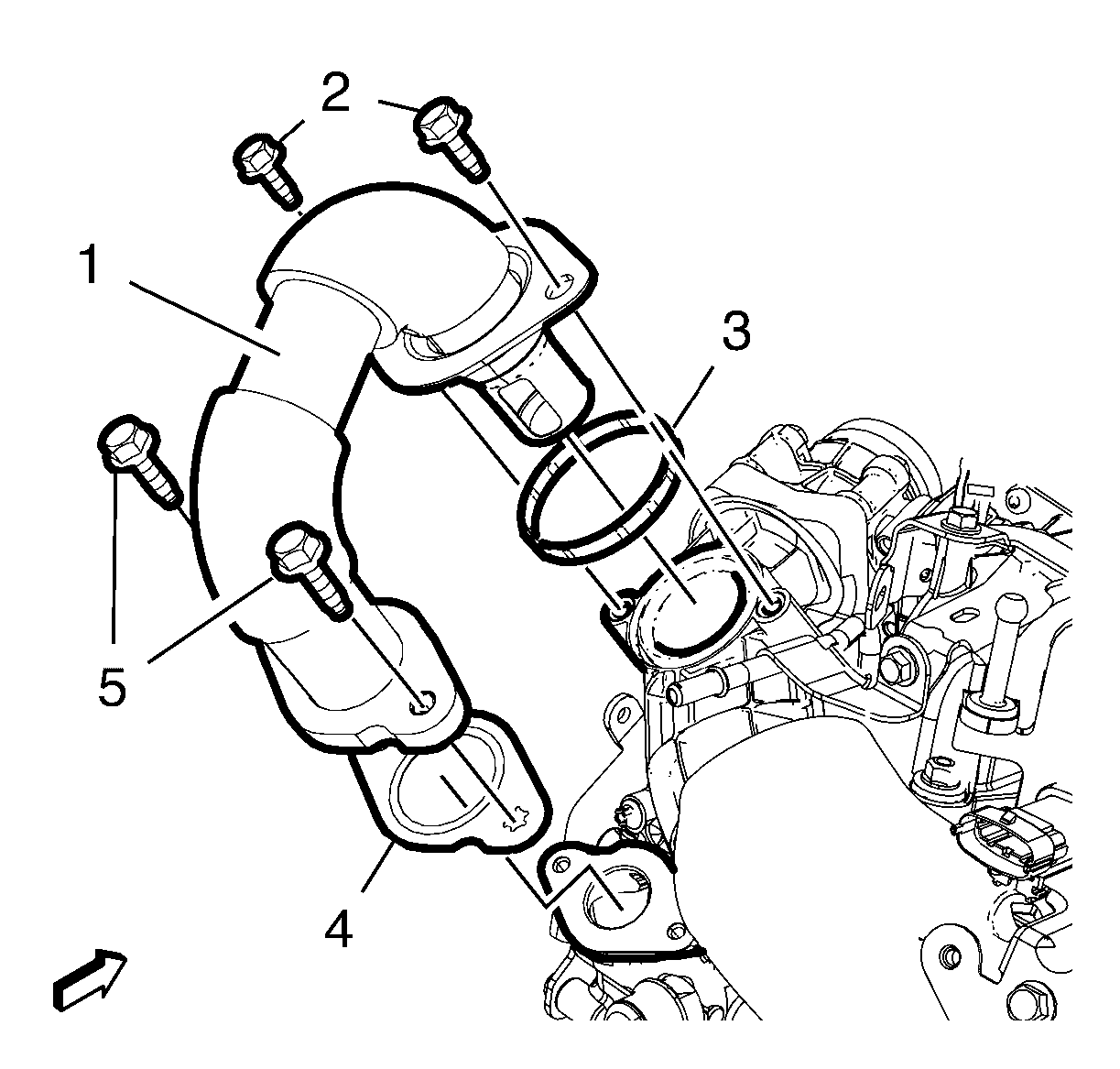

Fig 1: Exhaust Gas Recirculation Cooler Outlet Pipe And Components
GM2900106Courtesy of GENERAL MOTORS COMPANY
  1. Remove the 4 exhaust gas recirculation cooler outlet pipe bolts (2, 5).
  2. Remove the exhaust gas recirculation cooler outlet pipe (1).
  3. Remove the exhaust gas recirculation cooler outlet pipe seal (3).
  4. Remove and DISCARD the exhaust gas recirculation cooler outlet pipe gasket (4).
