Engine Oil Cooler Installation

WARNING: This page is about a different variant/trim than selected.

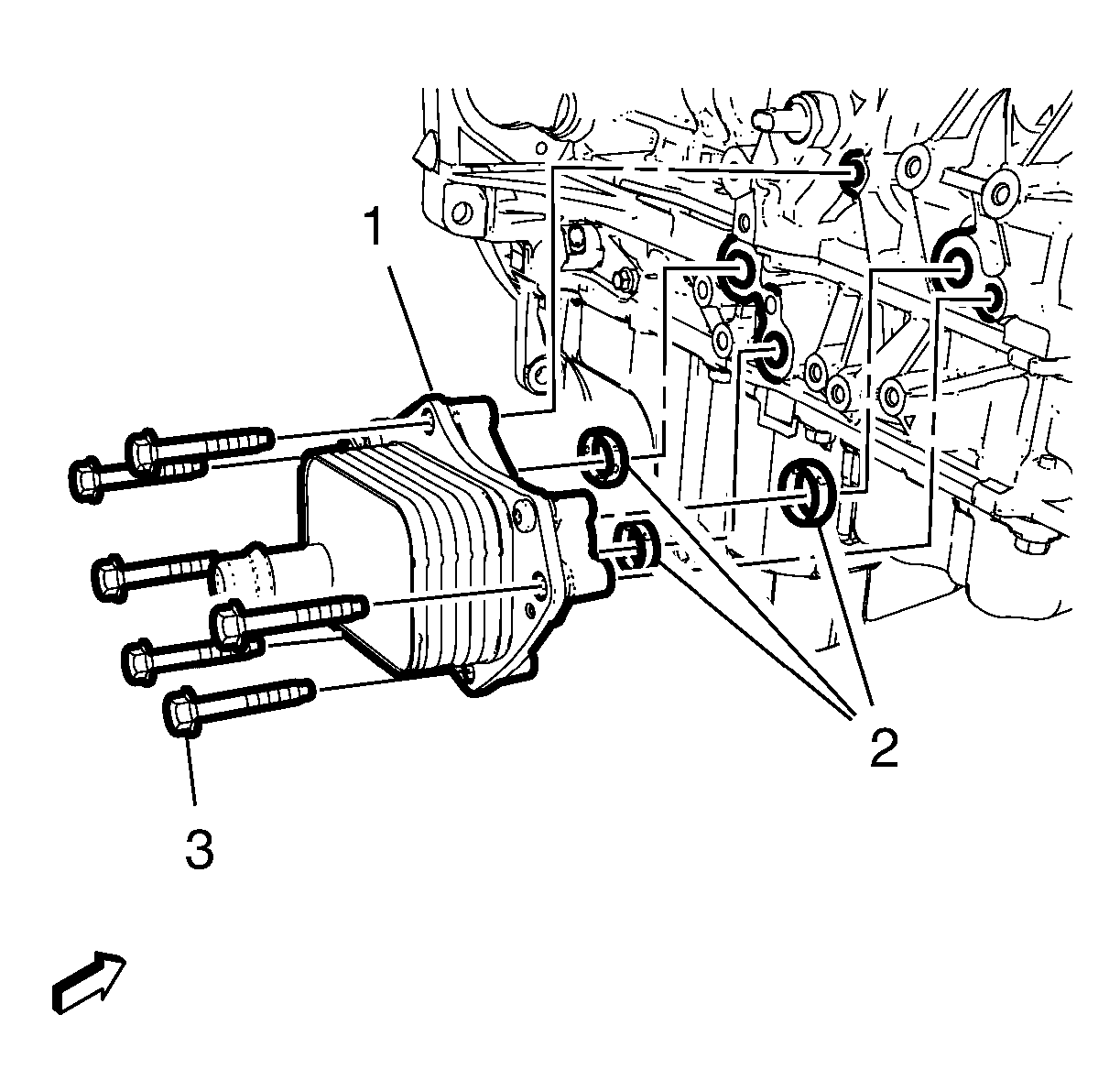

    Fig 1: Engine Oil Cooler, Bolts And Gaskets
    GM3221549Courtesy of GENERAL MOTORS COMPANY
  1. Install the NEW 3 oil cooler adapter gaskets (2).
  2. Install the oil cooler with oil cooler adapter (1).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the 6 oil cooler bolts (3) and tighten to 25 N.m (18 lb ft).
