Engine Mount Bracket Installation

Special Tools

EN-45059  Angle Meter

Equivalent regional tools: Special Tools

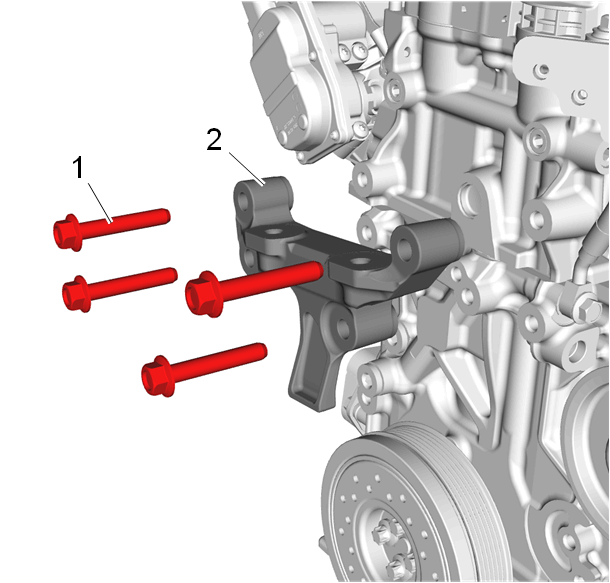

Fig 1: Engine Mount Bracket And Bolts

Courtesy of GENERAL MOTORS COMPANY

1. Install Engine Mount Bracket (2)
CAUTION:

Refer to Fastener Caution

2. Install NEW Engine Mount Bracket Bolts (1) (Qty: 4) - Hand tighten
CAUTION:

Refer to Torque-to-Yield Fastener Caution

3. Tighten Engine Mount Bracket Bolts (1) (Qty: 4) in sequence
   1. First Pass: 58 N.m (43 lb ft)
   2. Final Pass: 60-75 degrees - Use the special tool: EN-45059  Angle Meter
