Engine Block Disassemble

WARNING: This page is about a different variant/trim than selected.

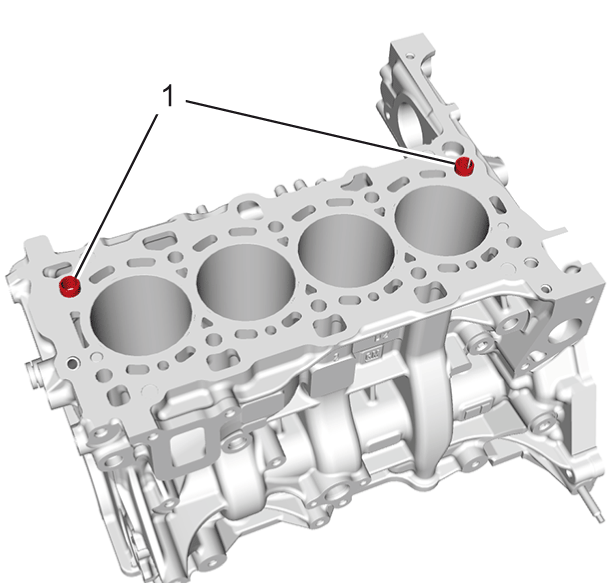

    Fig 1: Cylinder Head Guide Sleeves
    GM4629159Courtesy of GENERAL MOTORS COMPANY
  1. Remove the 2 cylinder head guide sleeves (1).

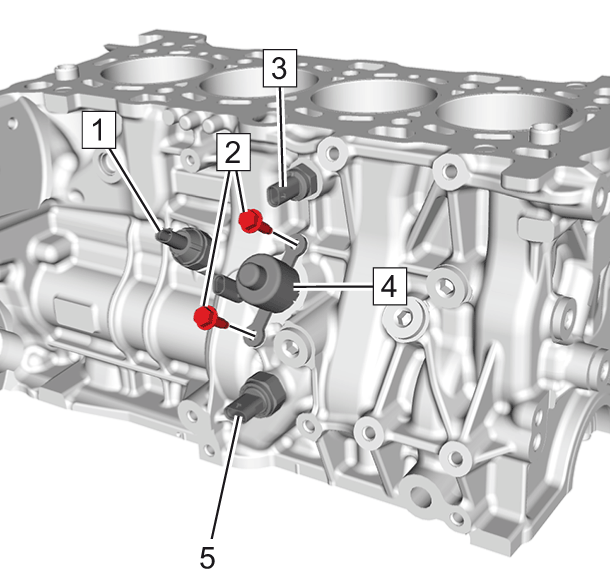

    2. Fig 2: Engine Oil Pressure Switch, Engine Oil Pressure Sensor, Engine Coolant Temperature Sensor, Piston Oil Nozzle Oil Control Solenoid Valve And Bolts
    GM4626902Courtesy of GENERAL MOTORS COMPANY
  2. Remove Engine Oil Pressure Switch (1)
  3. Remove Engine Coolant Temperature Sensor (3)
  4. Remove the 2 piston oil nozzle oil control solenoid valve bolts (2).
  5. Remove the piston oil nozzle oil control solenoid valve (4).
  6. Remove Engine Oil Pressure Sensor (5)

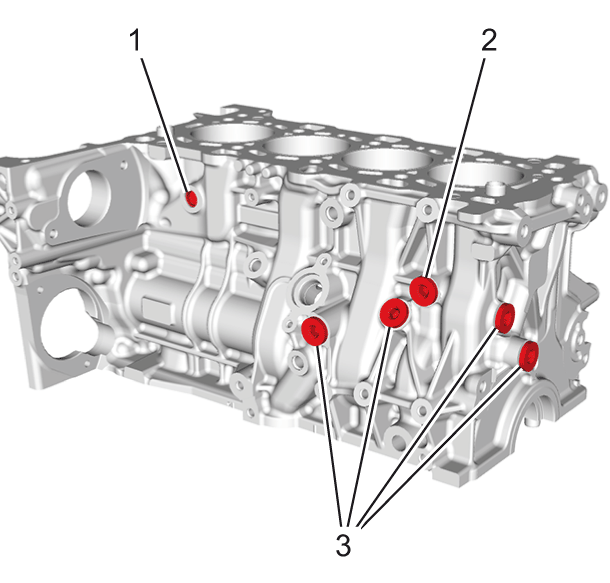

    7. Fig 3: Engine Block Plugs
    GM4626901Courtesy of GENERAL MOTORS COMPANY
  7. Remove and DISCARD Engine Block Core Hole Plug (1)
  8. Remove Engine Block Coolant Drain Hole Plug (2)
  9. Remove Engine Block Oil Gallery Plugs (3) (Qty: 4)

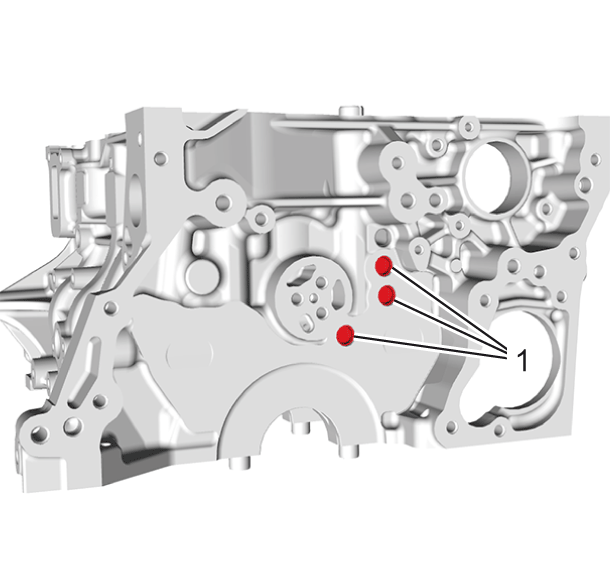

    10. Fig 4: Engine Block Core Hole Plugs
    GM4626899Courtesy of GENERAL MOTORS COMPANY
  10. Remove and DISCARD Engine Block Core Hole Plugs (1) (Qty: 3)

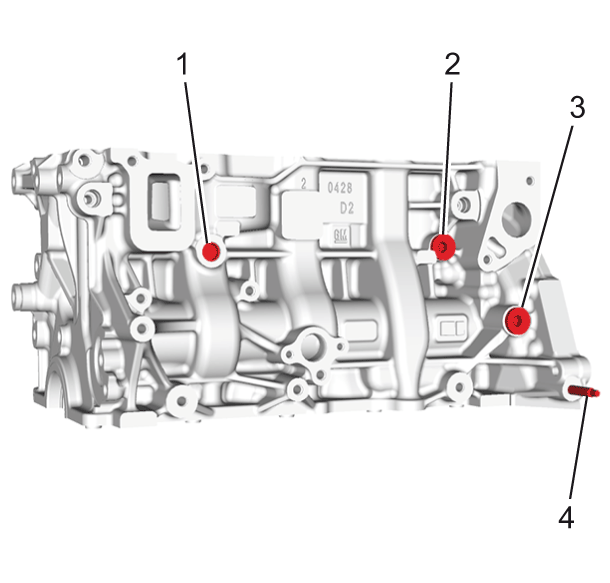

    11. Fig 5: Catalytic Converter Stud And Engine Block Plugs
    GM4626898Courtesy of GENERAL MOTORS COMPANY
  11. Remove Catalytic Converter Stud (4)
  12. Remove and DISCARD Engine Block Core Hole Plug (1)
  13. Remove Engine Block Coolant Drain Hole Plug (2)
  14. Remove Engine Block Oil Gallery Plug (3)

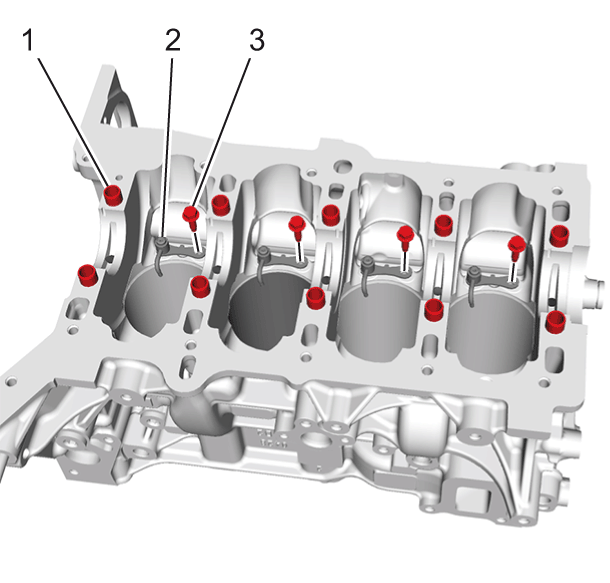

    15. Fig 6: Piston Oil Nozzles, Bolts And Lower Crankcase Guide Sleeves
    GM4626896Courtesy of GENERAL MOTORS COMPANY
  15. Remove Piston Oil Nozzle Bolts (3) (Qty: 4)
  16. Piston Oil Nozzles (2) (Qty: 4)
  17. Remove the 10 lower crankcase guide sleeves (1).
