Engine Block Assemble

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Piston Oil Nozzles, Bolts And Lower Crankcase Guide Sleeves
    GM4626896Courtesy of GENERAL MOTORS COMPANY
  1. Install the 10 lower crankcase guide sleeves (1).
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Piston Oil Nozzles (2) (Qty: 4)
  3. Install and tighten Piston Oil Nozzle Bolts (3) (Qty: 4) to 10 N.m (89 lb in)
    4. Fig 2: Catalytic Converter Stud And Engine Block Plugs
    GM4626898Courtesy of GENERAL MOTORS COMPANY
  4. Install and tighten Engine Block Coolant Drain Hole Plug (2) to 65 N.m (48 lb ft)
  5. Install and tighten Engine Block Oil Gallery Plug (3) to 65 N.m (48 lb ft)
  6. Install NEW Engine Block Core Hole Plug (1)
  7. Install and tighten Catalytic Converter Stud (4) to 9 N.m (80 lb in)
    8. Fig 3: Engine Block Core Hole Plugs
    GM4626899Courtesy of GENERAL MOTORS COMPANY
  8. Install NEW Engine Block Core Hole Plugs (1) (Qty: 3)
    9. Fig 4: Engine Block Plugs
    GM4626901Courtesy of GENERAL MOTORS COMPANY
  9. Install and tighten Engine Block Coolant Drain Hole Plug (2) to 65 N.m (48 lb ft)
  10. Install and tighten Engine Block Oil Gallery Plugs (3) (Qty: 4) to 65 N.m (48 lb ft)
  11. Install NEW Engine Block Core Hole Plug (1)
    12. Fig 5: Engine Oil Pressure Switch, Engine Oil Pressure Sensor, Engine Coolant Temperature Sensor, Piston Oil Nozzle Oil Control Solenoid Valve And Bolts
    GM4626902Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution

  12. Install and tighten Engine Oil Pressure Sensor (5) to 35 N.m (26 lb ft)
  13. Install the piston oil nozzle oil control solenoid valve (4).
  14. Install the 2 piston oil nozzle oil control solenoid valve bolts (2) and tighten to 10 N.m (89 lb in).
  15. Install and tighten Engine Coolant Temperature Sensor (3) to 33 N.m (24 lb ft)
  16. Install and tighten Engine Oil Pressure Switch (1) to 35 N.m (26 lb ft)

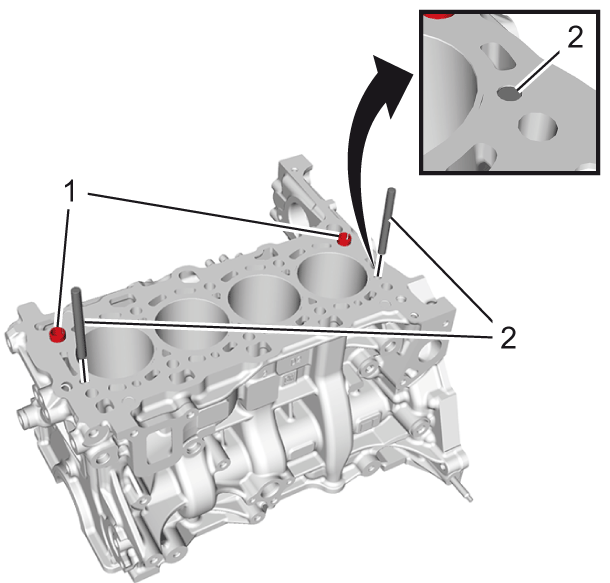

    17. Fig 6: Cylinder Head Guide Sleeves And Deflectors
    GM4629152Courtesy of GENERAL MOTORS COMPANY
  17. Install the 2 cylinder head guide sleeves (1).
  18. Check that the 2 deflectors (2) are installed in the engine block and install 2 NEW deflectors if the deflectors are missing.
