Crankshaft Position Sensor Installation

WARNING: This page is about a different variant/trim than selected.

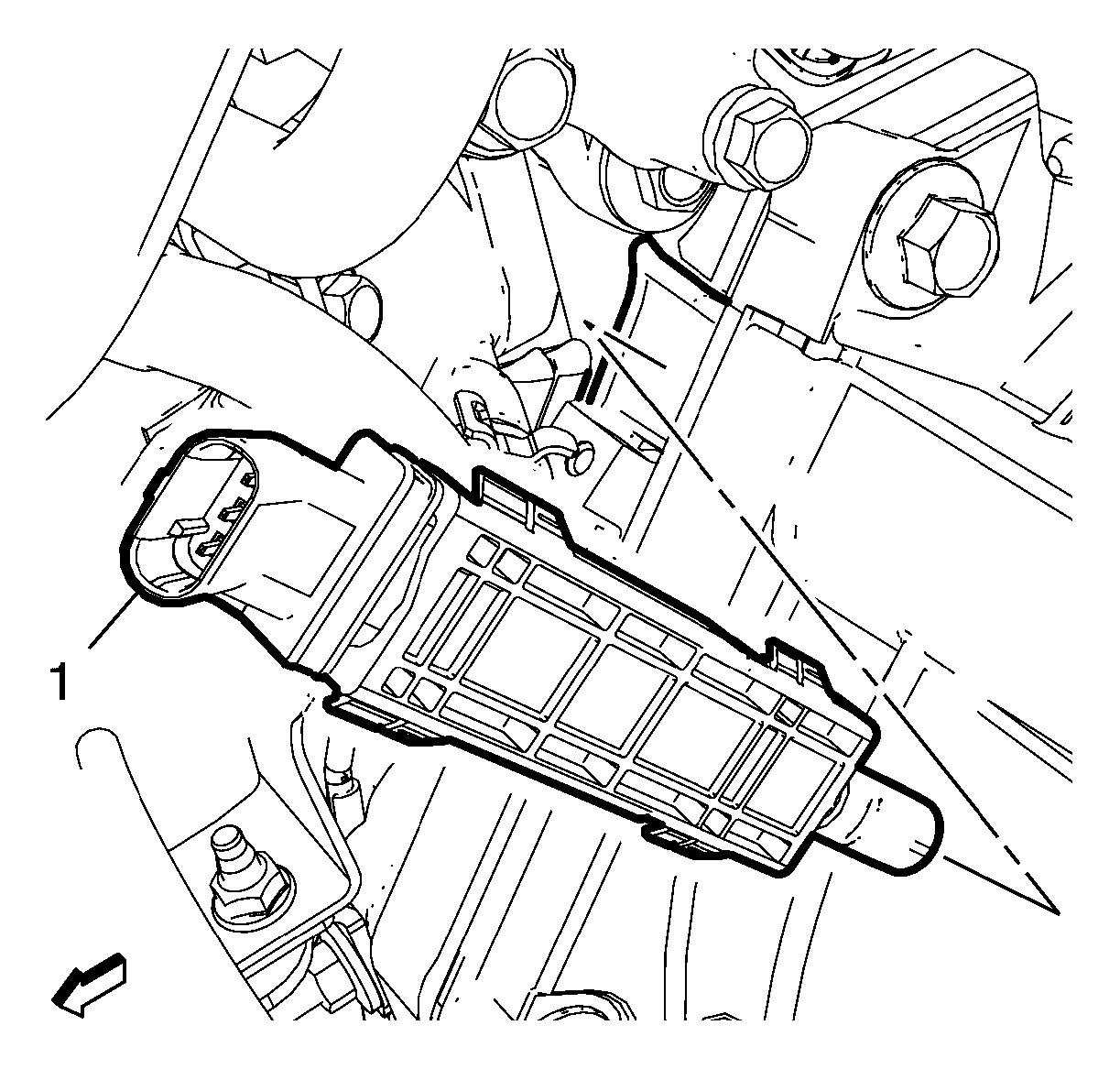

Fig 1: Crankshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

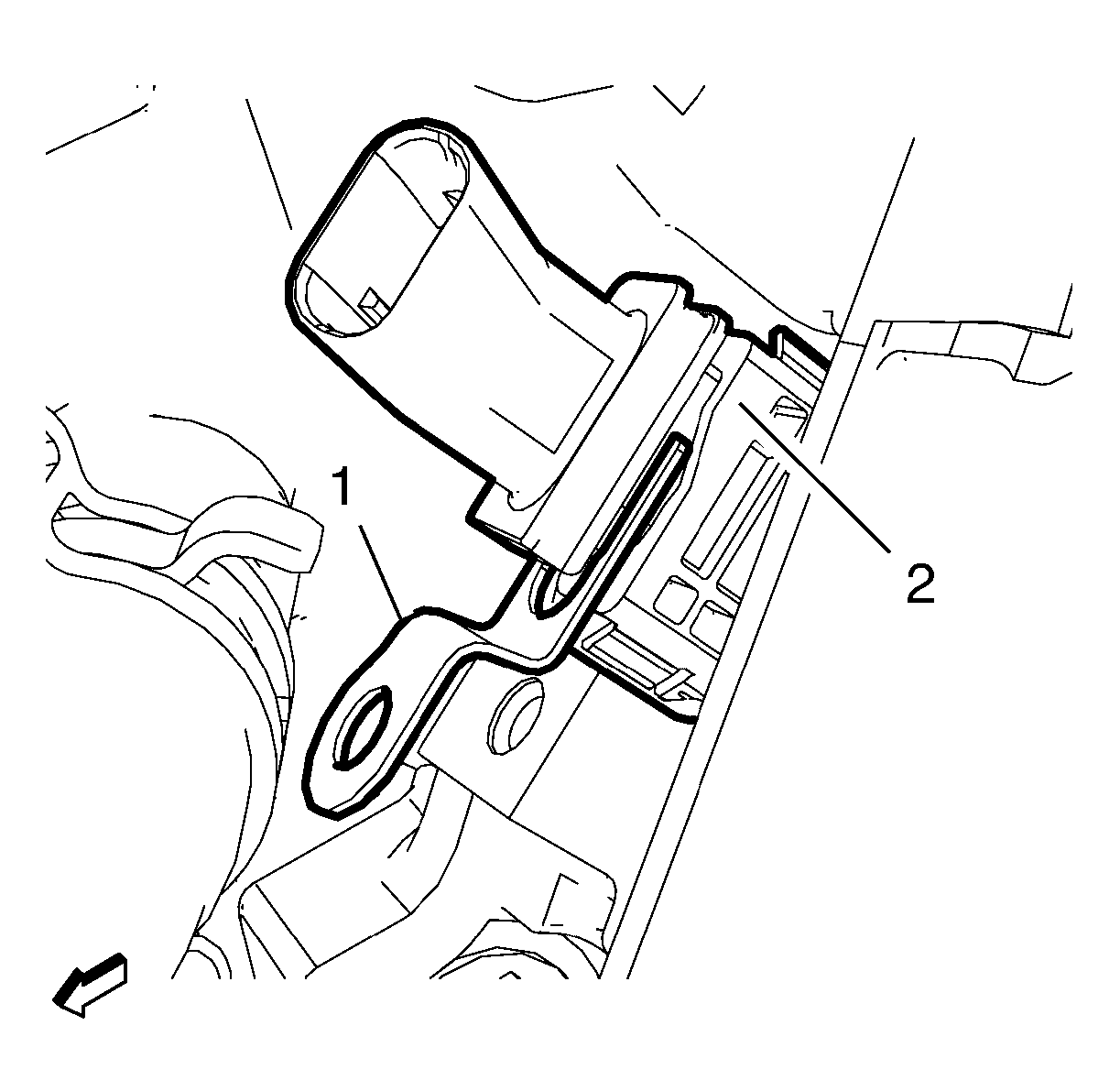

Fig 2: Crankshaft Position Sensor Retainer Spring Into Correct Channel

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Slightly lift the crankshaft position sensor to install the retainer spring.

Install the crankshaft position sensor retainer spring (1) into the correct channel (2) of the crankshaft position sensor.

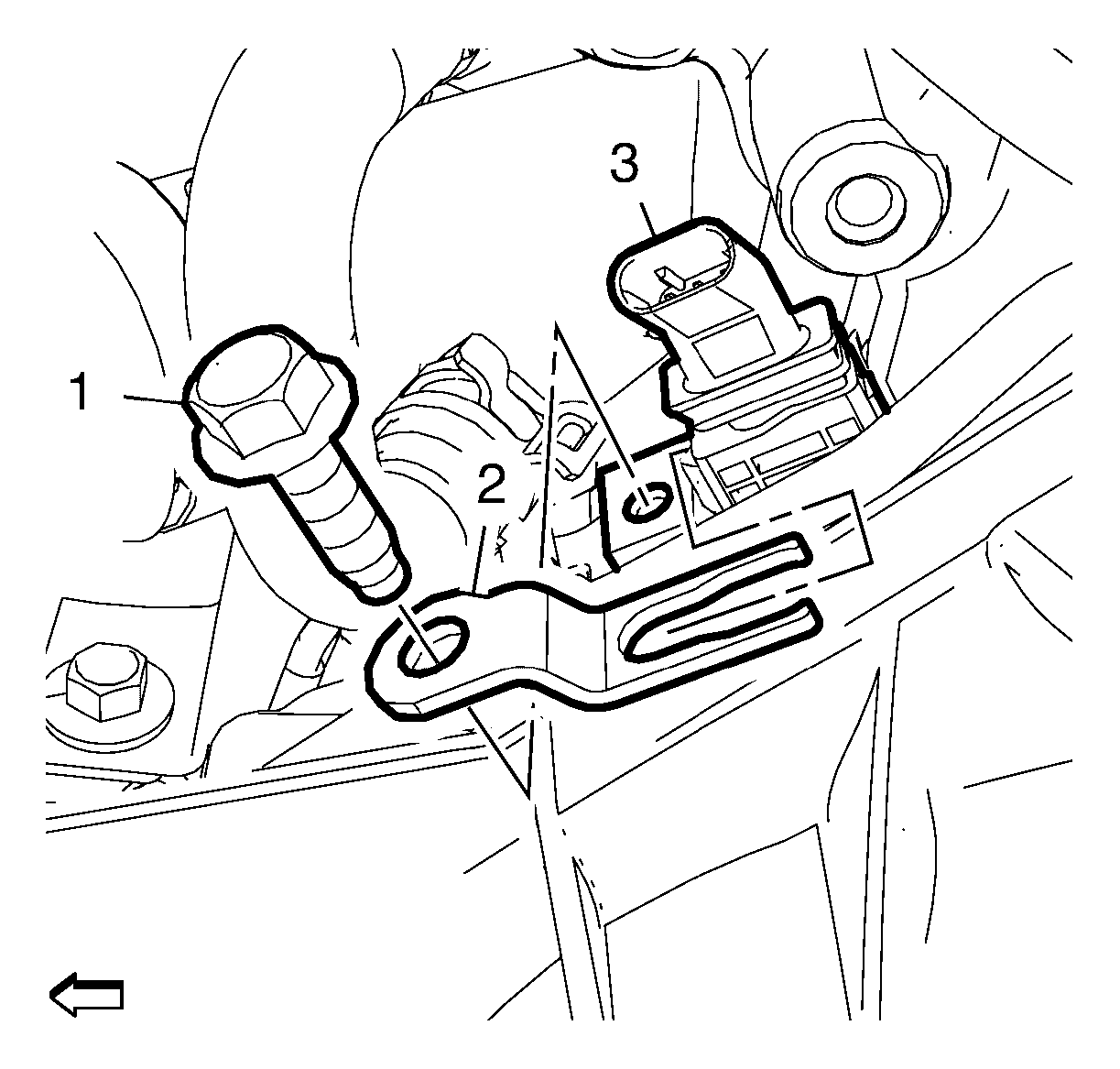

Fig 3: Crankshaft Position Sensor, Bolt And Retainer Spring

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Install the crankshaft position sensor bolt (1) and tighten to 10 N.m (89 lb in).
