Catalytic Converter Heat Shield Installation

WARNING: This page is about a different variant/trim than selected.

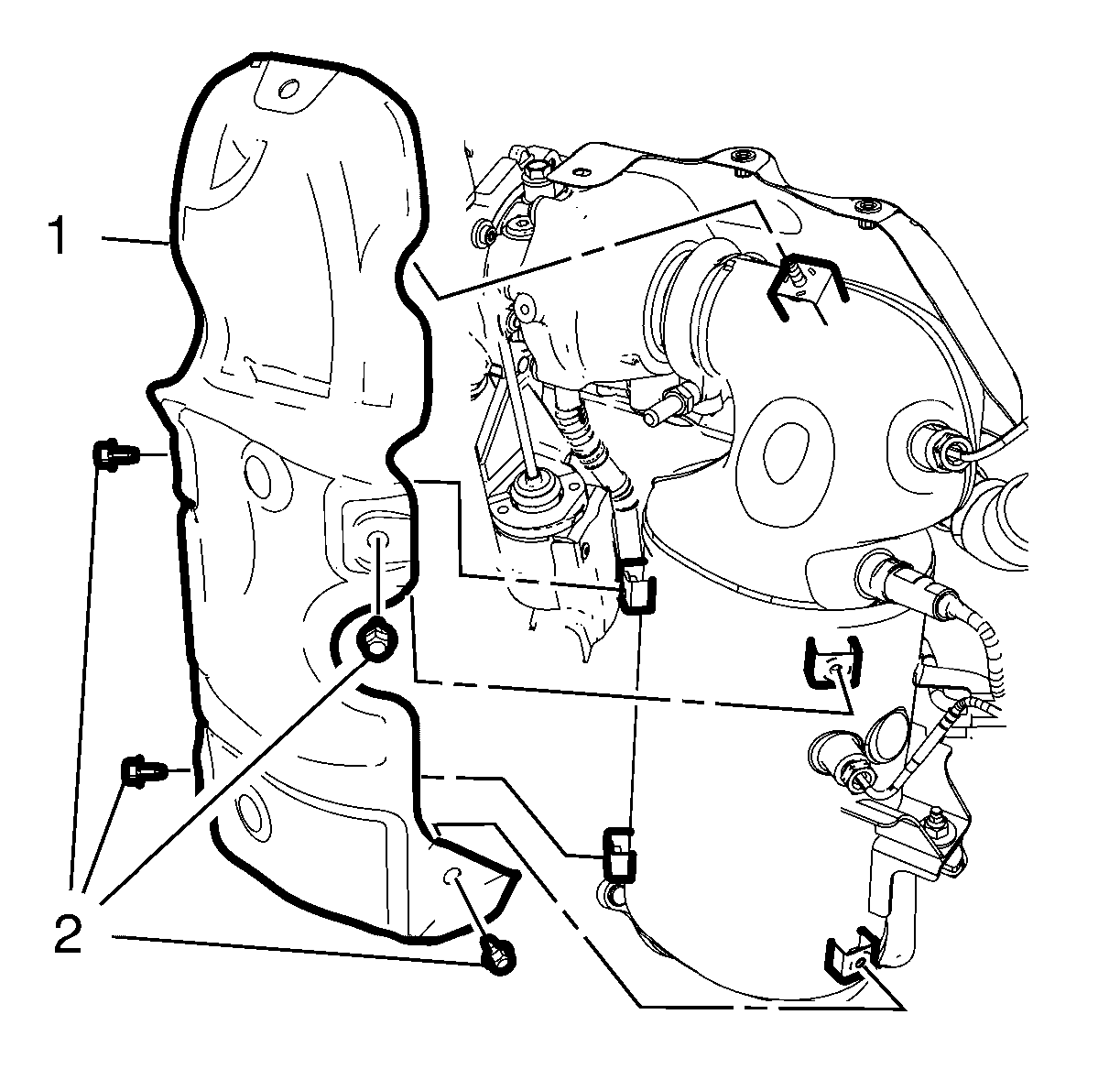

Fig 1: Catalytic Converter Heat Shield And Bolts
GM2900088Courtesy of GENERAL MOTORS COMPANY
  1. Install the catalytic converter heat shield (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 4 catalytic converter heat shield bolts (2) and tighten to 9 N.m (80 lb in).
