Camshaft Position Sensor Installation

WARNING: This page is about a different variant/trim than selected.

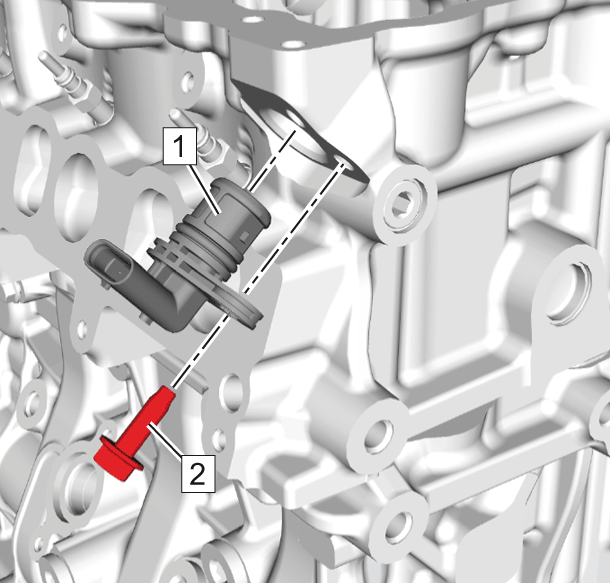

    Fig 1: Camshaft Position Sensor And Bolt
    GM4538020Courtesy of GENERAL MOTORS COMPANY
  1. Install Camshaft Position Sensor (1)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install and tighten Camshaft Position Sensor Bolt (2) to 10 N.m (89 lb in)
