Belt Idler Pulley Installation

WARNING: This page is about a different variant/trim than selected.

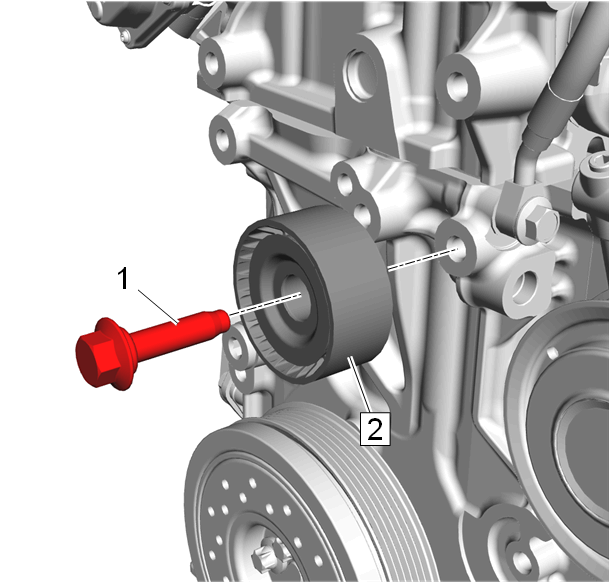

Fig 1: Drive Belt Idler Pulley And Bolt
GM2900082Courtesy of GENERAL MOTORS COMPANY
  1. Install the drive belt idler pulley (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the drive belt idler pulley bolt (1) and tighten to 58 N.m (43 lb ft).
