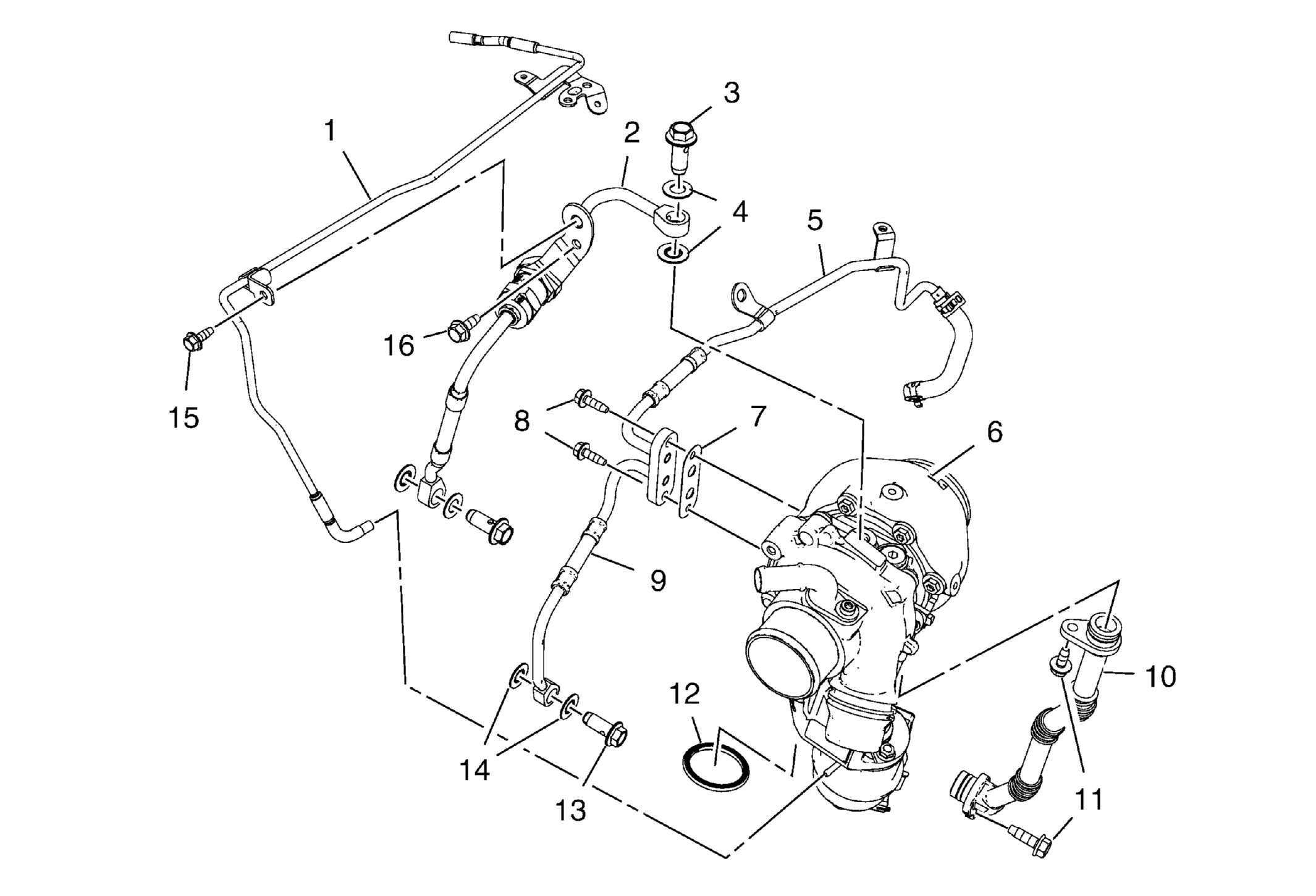

Disassembled Views: Turbocharger
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Turbocharger Wastegate Actuator Pipe |
| 2 | Turbocharger Oil Feed Pipe |
| 3 | Turbocharger Oil Feed Pipe Bolt |
| 4 | Turbocharger Oil Feed Pipe Gaskets |
| 5 | Turbocharger Coolant Return Pipe |
| 6 | Turbocharger |
| 7 | Turbocharger Coolant Feed and Return Pipe Gasket |
| 8 | Turbocharger Coolant Feed and Return Pipe Bolts |
| 9 | Turbocharger Coolant Feed Pipe |
| 10 | Turbocharger Oil Return Pipe |
| 11 | Turbocharger Oil Return Pipe Bolts |
| 12 | Turbocharger Gasket |
| 13 | Turbocharger Coolant Feed Pipe Bolt |
| 14 | Turbocharger Coolant Feed Pipe Gaskets |
| 15 | Turbocharger Wastegate Actuator Pipe Bracket Bolt |
| 16 | Turbocharger Oil Feed Pipe Bracket Bolt |
