Intake Manifold
WARNING: This page is about a different variant/trim than selected.

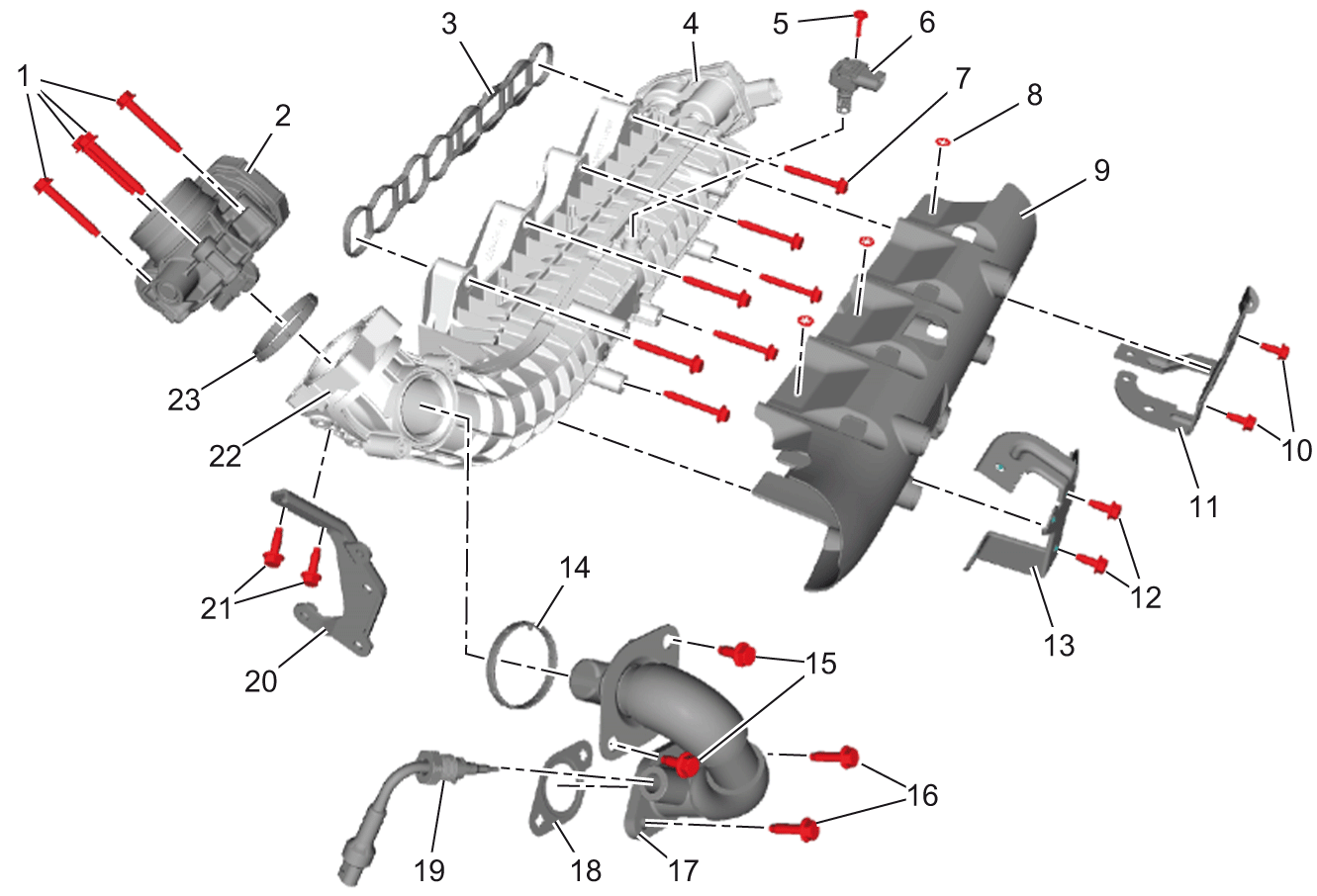

| Callout | Component Name |
|---|---|
| 1 | Throttle Body Bolt |
| 2 | Throttle Body |
| 3 | Intake Manifold Gasket |
| 4 | Intake Manifold Runner Control Valve Actuator |
| 5 | Intake Air Pressure and Temperature Sensor Bolt |
| 6 | Intake Air Pressure and Temperature Sensor |
| 7 | Intake Manifold Bolt |
| 8 | Intake Manifold Cover Washer |
| 9 | Intake Manifold Cover |
| 10 | Fuel Injection Fuel Return Pipe Bracket Bolt |
| 11 | Fuel Injection Fuel Return Pipe Bracket |
| 12 | Fuel Injection Fuel Rail Pressure Sensor Wiring Harness Bracket Bolt |
| 13 | Fuel Injection Fuel Rail Pressure Sensor Wiring Harness Bracket |
| 14 | Exhaust Gas Recirculation Cooler Outlet Pipe Seal |
| 15 | Exhaust Gas Recirculation Cooler Outlet Pipe Bolt |
| 16 | Exhaust Gas Recirculation Cooler Outlet Pipe Bolt |
| 17 | Exhaust Gas Recirculation Cooler Outlet Pipe |
| 18 | Exhaust Gas Recirculation Cooler Outlet Pipe Gasket |
| 19 | Exhaust Gas Recirculation Cooler Temperature Sensor-Position 2 |
| 20 | Intake Manifold Brace |
| 21 | Intake Manifold Brace Bolt |
| 22 | Intake Manifold |
