Fuel Injection Fuel System
WARNING: This page is about a different variant/trim than selected.

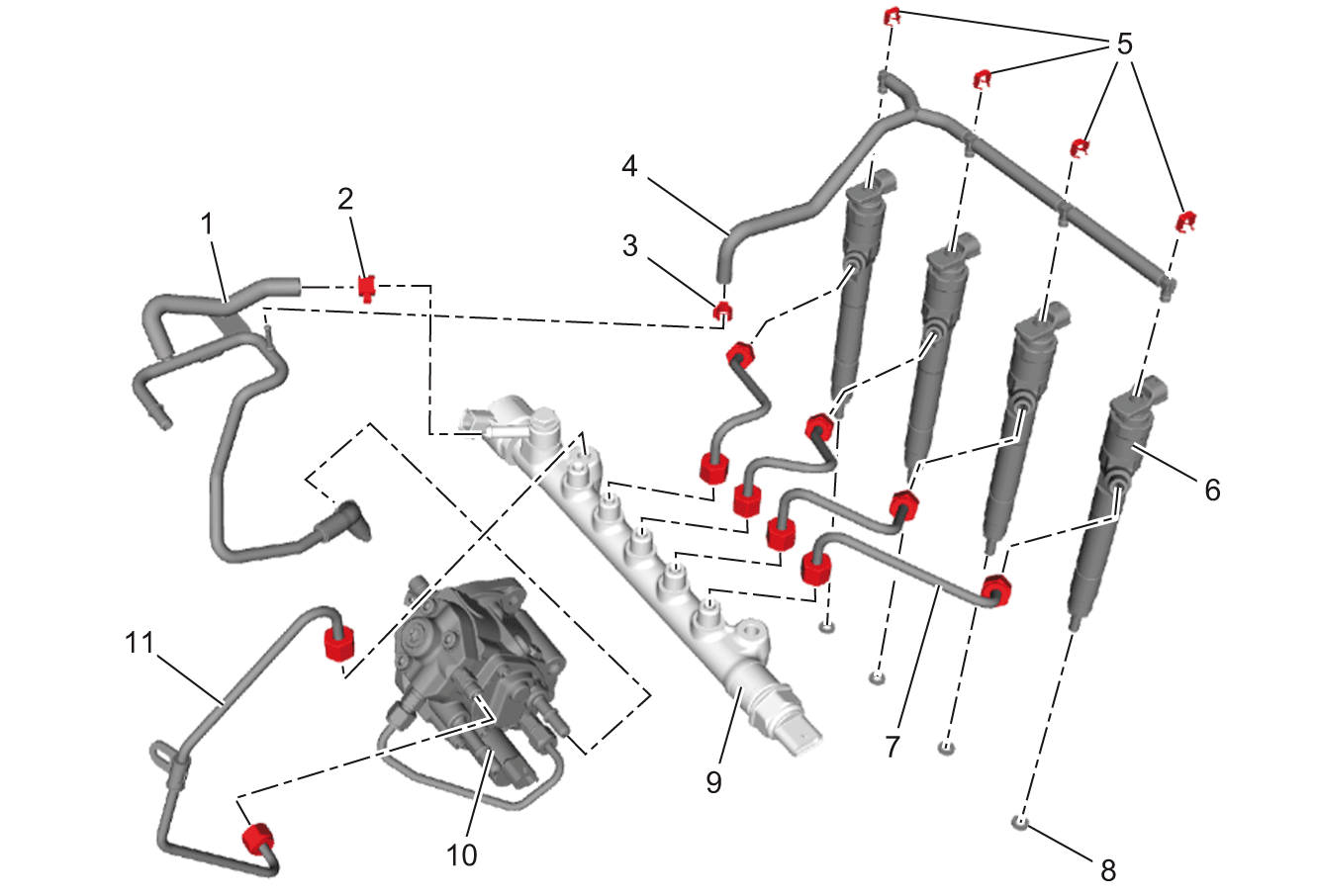

| Callout | Component Name |
|---|---|
| 1 | Diesel Fuel Separator |
| 2 | Diesel Fuel Separator Hose Clamp |
| 3 | Fuel Return Hose Clamp |
| 4 | Fuel Return Hose |
| 5 | Fuel Return Hose Clip |
| 6 | Fuel Injector |
| 7 | Fuel Injection Fuel Feed Pipe - Fuel Rail to Fuel Injector |
| 8 | Fuel Injector Seal Ring |
| 9 | Fuel Rail |
| 10 | Fuel Injection Pump |
| 11 | Fuel Injection Fuel Feed Pipe - Fuel Injection Pump to Fuel Rail |
