Exhaust Manifold
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY

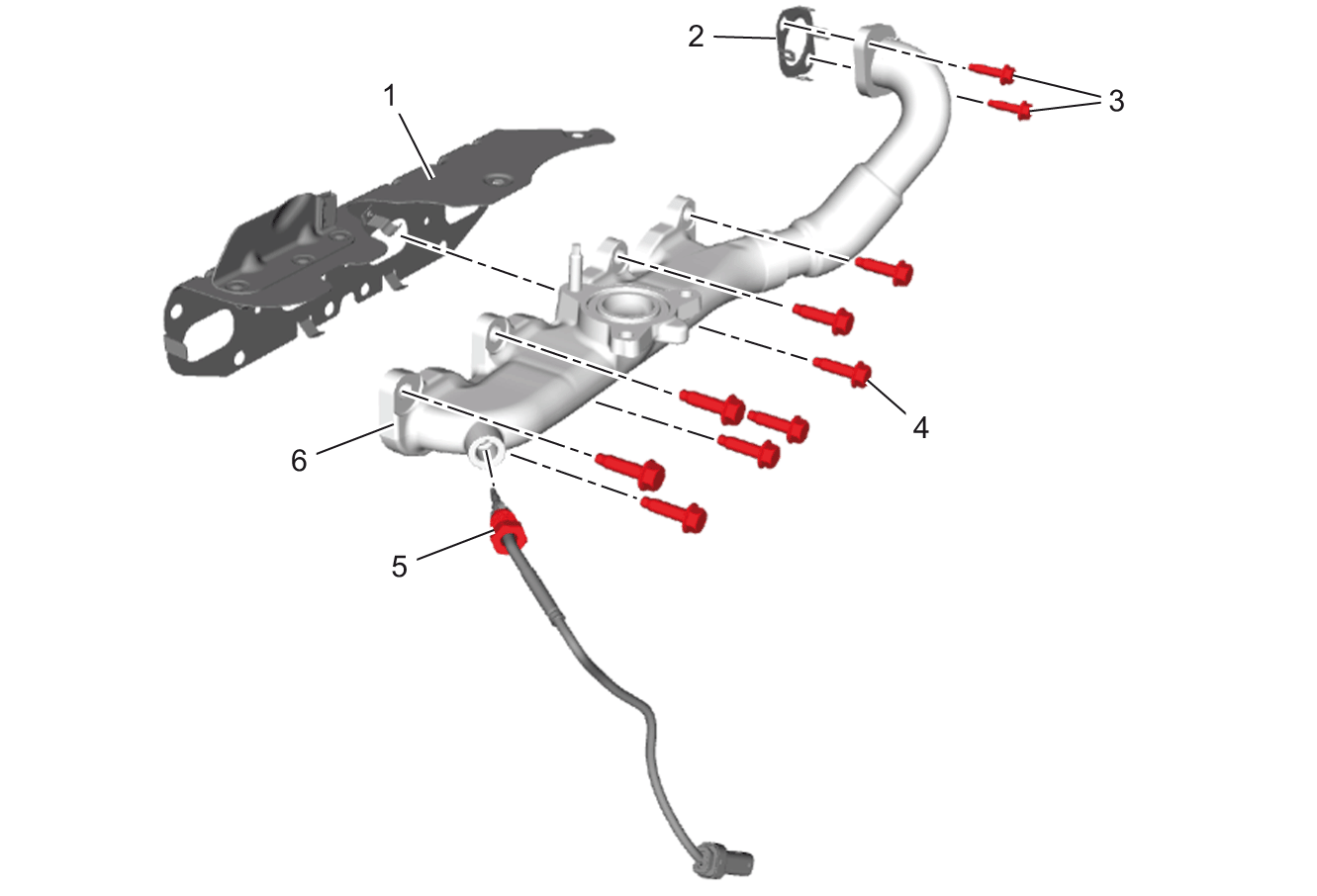

| Callout |
Component Name |
| 1 |
Exhaust Manifold Gasket |
| 2 |
Exhaust Gas Recirculation Pipe Gasket |
| 3 |
Exhaust Gas Recirculation Pipe Bolt |
| 4 |
Exhaust Manifold Bolt |
| 5 |
Exhaust Gas Recirculation Cooler Temperature Sensor-Position 1 |
| 6 |
Exhaust Manifold |
