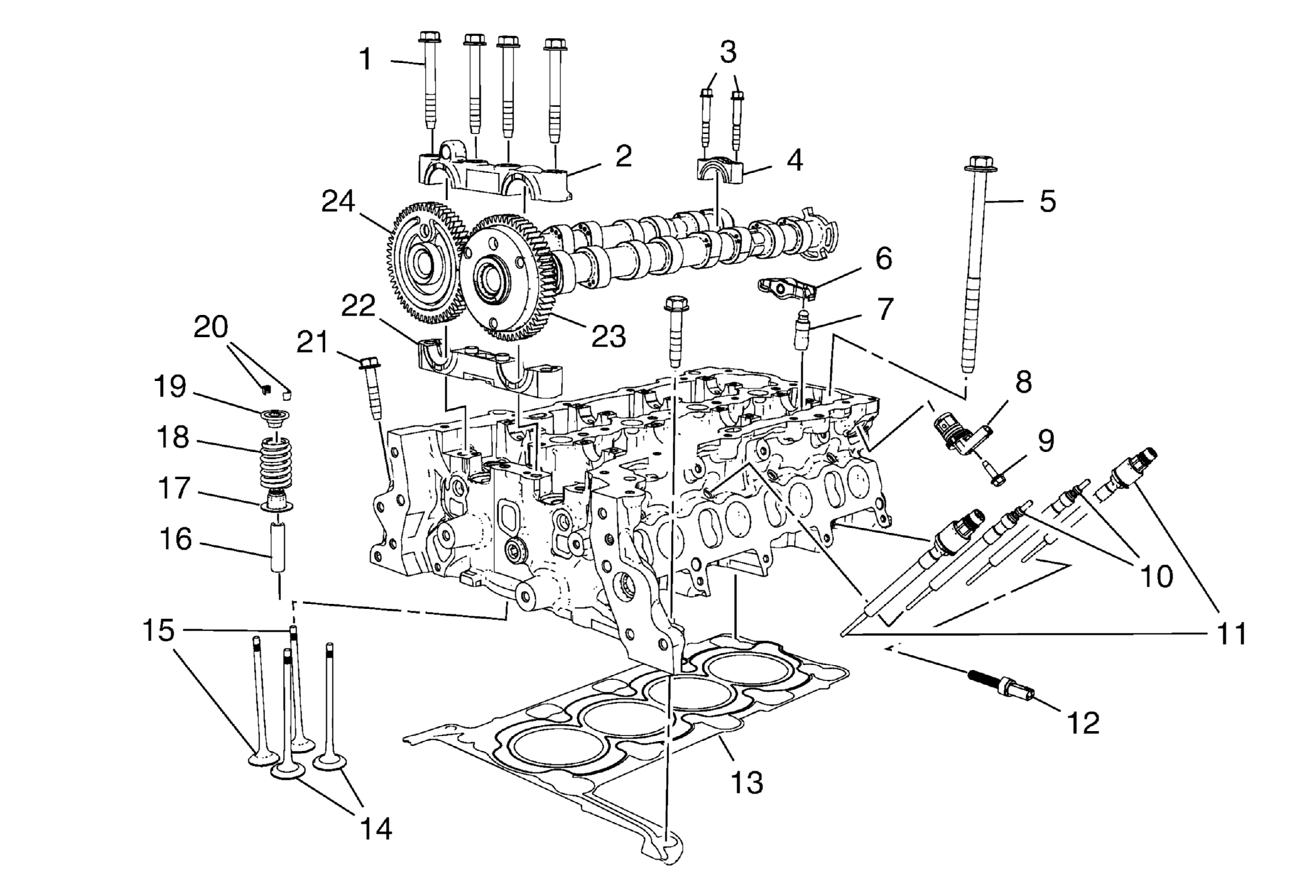

Cylinder Head
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Camshaft Bearing Rear Cap Bolts |
| 2 | Camshaft Bearing Rear Cap |
| 3 | Camshaft Bearing Cap Bolts |
| 4 | Camshaft Bearing Cap |
| 5 | Cylinder Head Bolts |
| 6 | Valve Lifter Roller |
| 7 | Valve Lifter |
| 8 | Camshaft Position Sensor |
| 9 | Camshaft Position Sensor Bolt |
| 10 | Glow Plugs without Pressure Sensor |
| 11 | Glow Plugs with Pressure Sensor |
| 12 | Engine Metal Temperature Sensor |
| 13 | Cylinder Head Gasket |
| 14 | Intake Valves |
| 15 | Exhaust Valves |
| 16 | Valve Guides |
| 17 | Valve Stem Oil Seal |
| 18 | Valve Spring |
| 19 | Valve Spring Retainer |
| 20 | Valve Stem Keys |
| 21 | Cylinder Head Outer Bolts |
| 22 | Camshaft Lower Rear Bearing |
| 23 | Intake Camshaft |
| 24 | Exhaust Camshaft |
