Camshaft Housing
WARNING: This page is about a different variant/trim than selected.

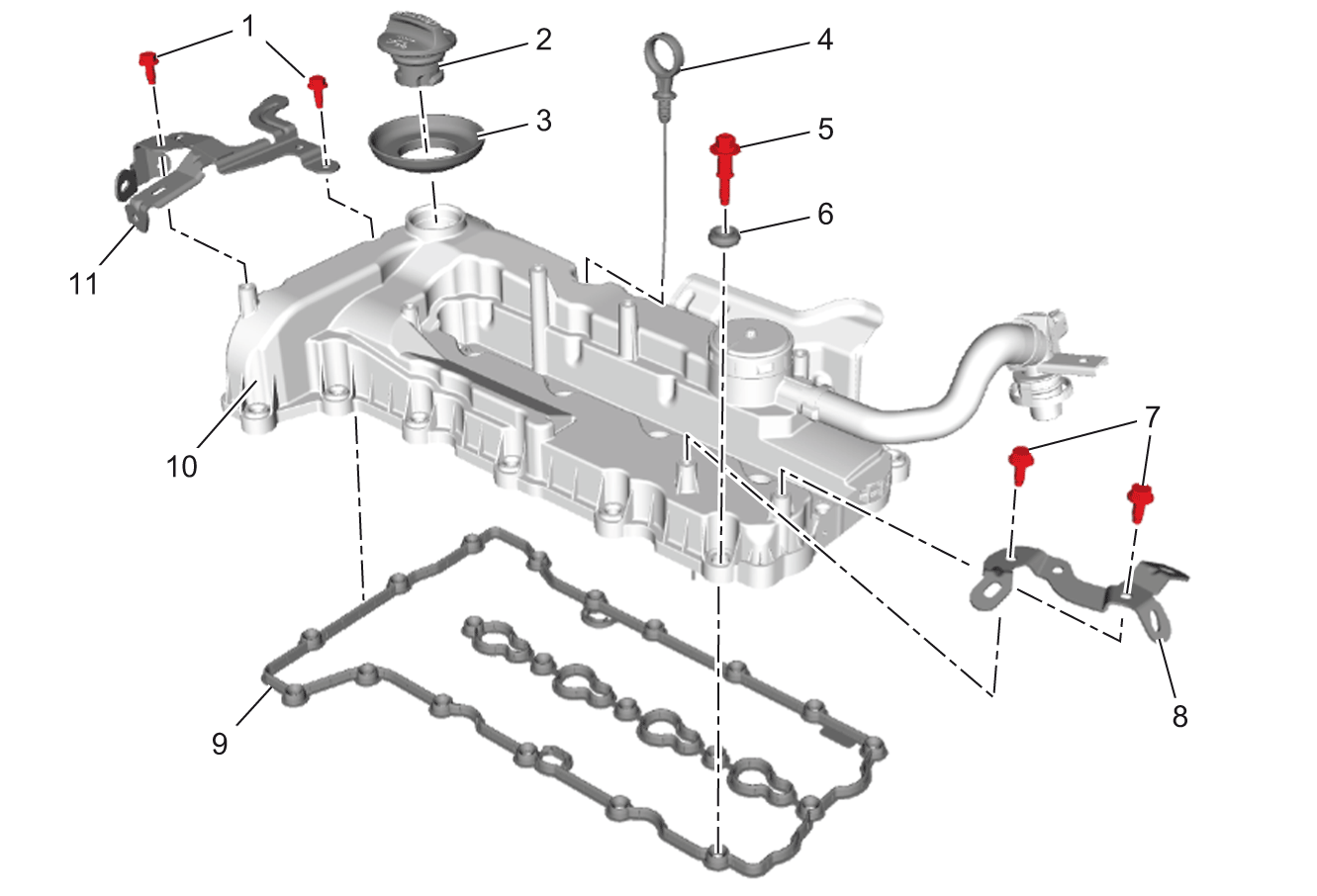

| Callout | Component Name |
|---|---|
| 1 | Wiring Harness Bracket Bolt |
| 2 | Oil Filler Cap |
| 3 | Oil Filler Tube Gasket |
| 4 | Oil Level Indicator |
| 5 | Camshaft Housing Cover Bolt |
| 6 | Camshaft Housing Cover Insulator |
| 7 | Wiring Harness Bracket Bolt |
| 8 | Wiring Harness Bracket |
| 9 | Camshaft Housing Cover Gasket |
| 10 | Camshaft Housing |
| 11 | Wiring Harness Bracket |
