Section 16 (Engine Controls And Fuel - 1.6L (LH7) Diesel - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics 1.6L (LH7)
>>
Emission Controls - Reductant System
Emission Controls - Reductant System
WARNING:
This page is about a different variant/trim than selected.

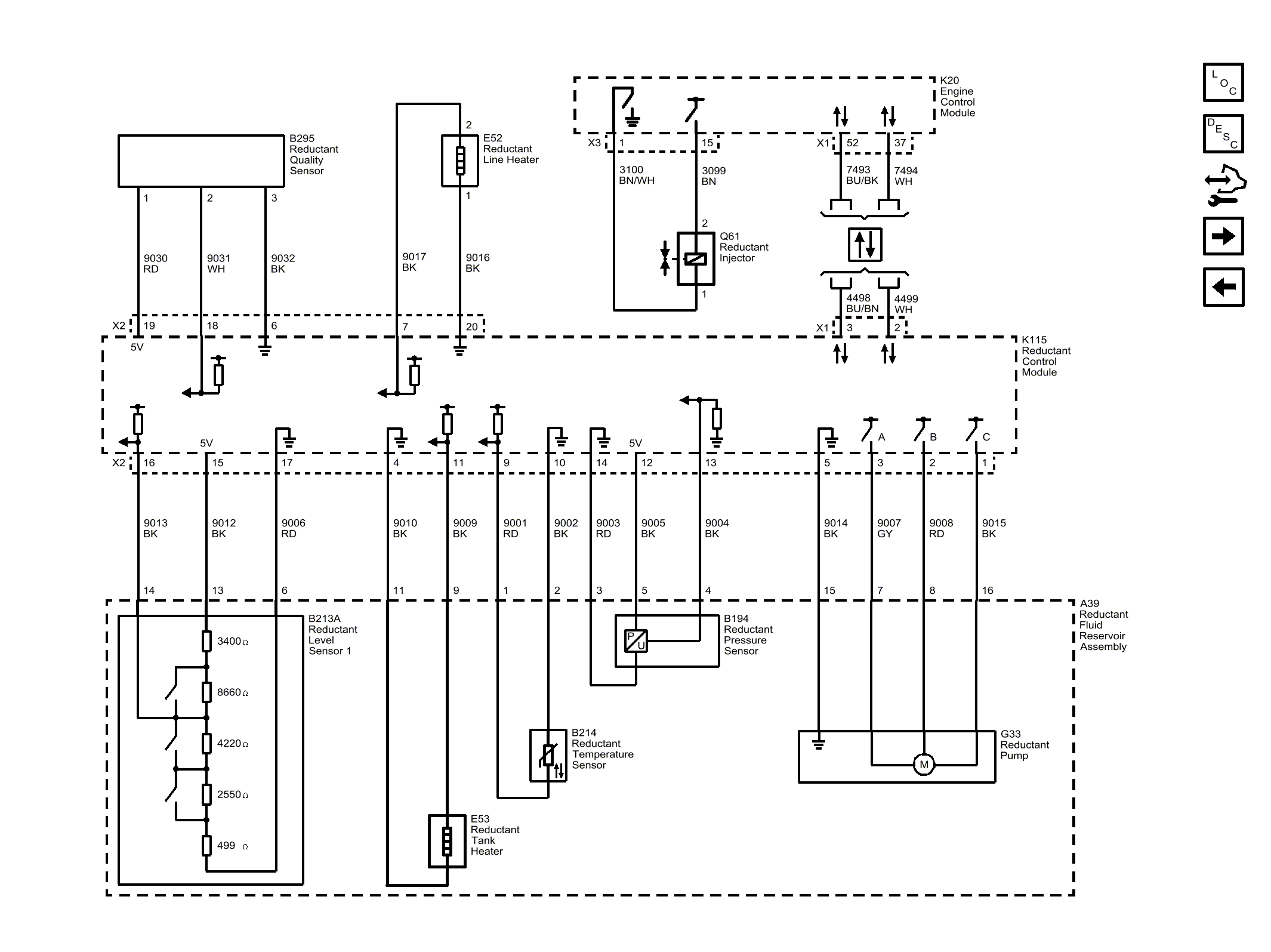

Fig 1: Emission Controls - Reductant System
Courtesy of GENERAL MOTORS COMPANY
