Section 16 (Engine Controls And Fuel - 1.6L (LH7) Diesel - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics 1.6L (LH7)
>>
Emission Controls - Nitrogen Oxides, Exhaust Particulate Matter Sensor, and Reductant Sensor Module
Emission Controls - Nitrogen Oxides, Exhaust Particulate Matter Sensor, and Reductant Sensor Module
WARNING:
This page is about a different variant/trim than selected.

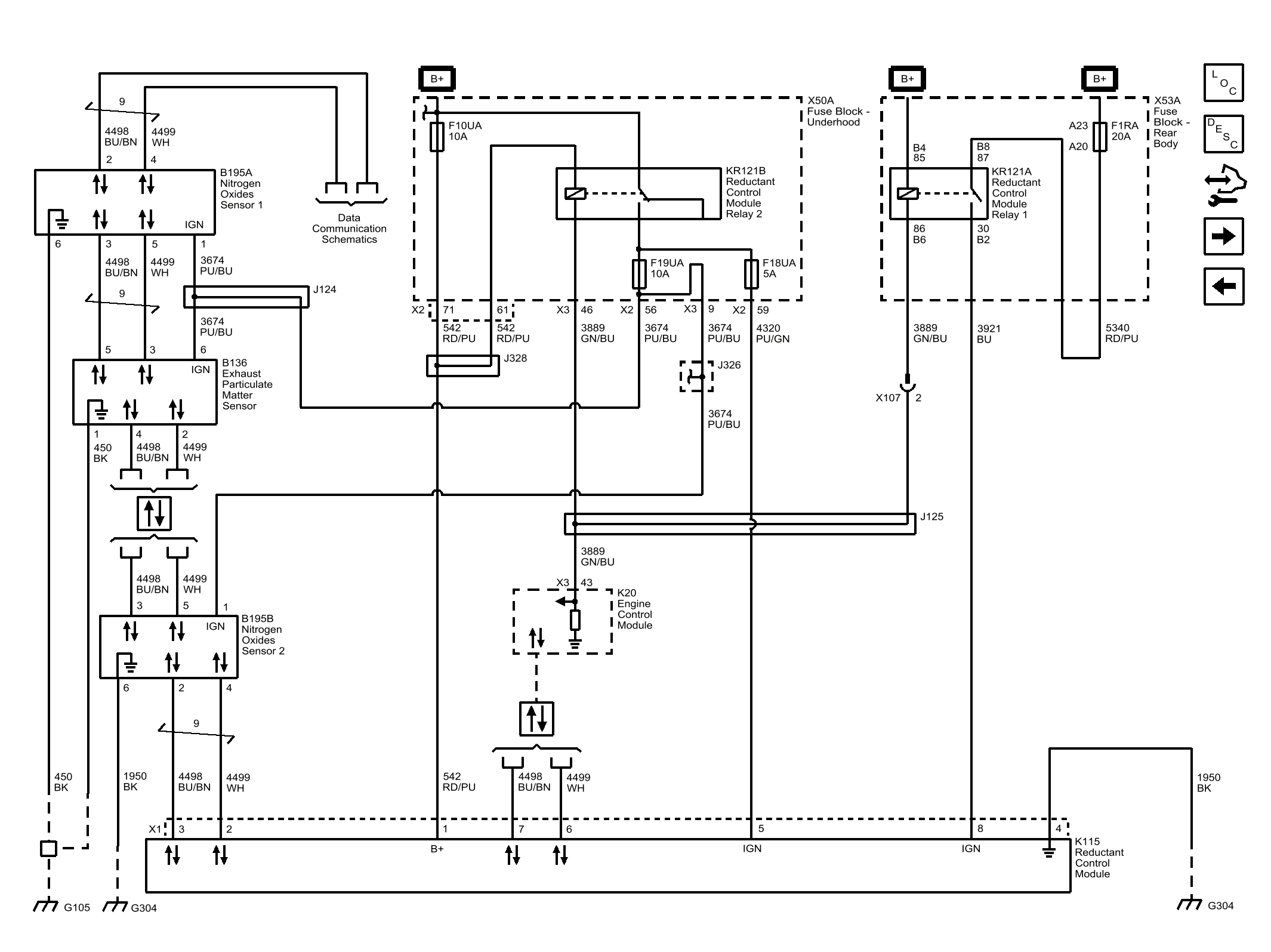

Fig 1: Emission Controls - Nitrogen Oxides, Exhaust Particulate Matter Sensor, and Reductant Sensor Module
Courtesy of GENERAL MOTORS COMPANY
