Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement

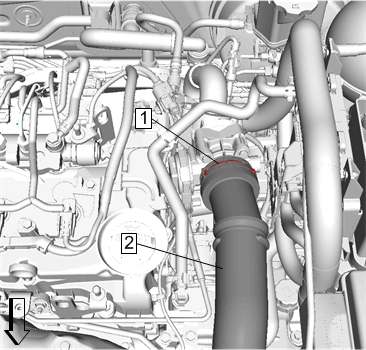

    2. Fig 1: Charge Air Cooler Outlet Air Tube And Retaining Clip
    GM4695620Courtesy of GENERAL MOTORS COMPANY
  2. Remove Charge Air Cooler Outlet Air Tube (2) @ Throttle Body. Refer to Charge Air Cooler Outlet Air Tube Replacement
    3. Fig 2: Throttle Body, Bolts And Gasket
    GM4175073Courtesy of GENERAL MOTORS COMPANY
  3. Remove Throttle Body Bolts (3) (Qty: 4)
    4. Fig 3: Electrical Connector
    GM4175072Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the electrical connector. (1)
  5. Remove the throttle body. (1)
  6. Remove and DISCARD the throttle body gasket. (2)
