Installation Procedure
WARNING: This page is about a different variant/trim than selected.

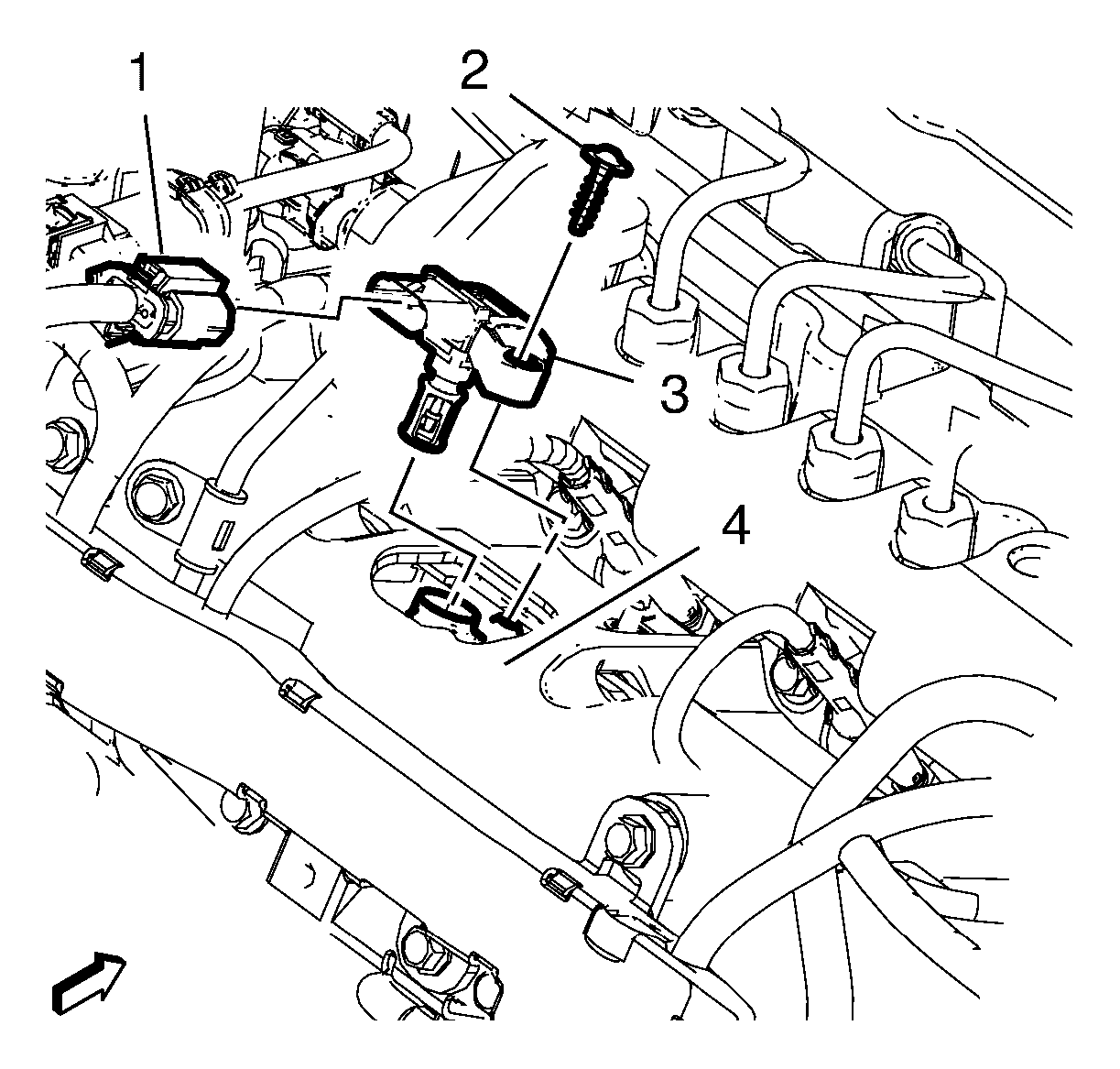

- Install the intake air pressure and temperature sensor (3) to the intake manifold (4).
- Install the bolt (2) to intake air pressure and temperature sensor (3) and tighten to 1.6 N.m (14 lb in).
- Connect the wiring harness plug (2) to the intake air pressure and temperature sensor (3).
- Install Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
- Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (KL9)
CAUTION:
Refer to Fastener Caution .
