Fuel Tank Vent Hose Replacement (AWD)

WARNING: This page is about a different variant/trim than selected.

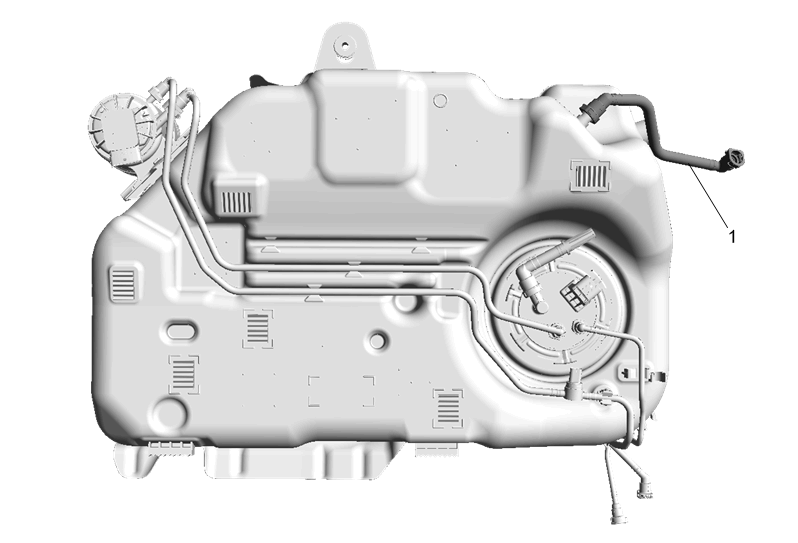

Fig 1: Fuel Tank Vent Hose (AWD)
GM4664953Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Remove Fuel Tank. Refer to Fuel Tank Replacement (AWD)
1 Fuel Tank Vent Hose
Procedure
Disconnect the fuel tank vent hose. Refer to Plastic Collar Quick Connect Fitting Service
