Installation Procedure

WARNING: This page is about a different variant/trim than selected.

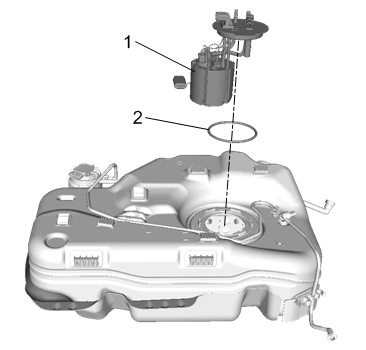

    Fig 1: Fuel Tank Fuel Pump Module And O-Ring
    GM4673677Courtesy of GENERAL MOTORS COMPANY
  1. Install NEW O-Ring (2)
  2. Install Fuel Tank Fuel Pump Module (1)

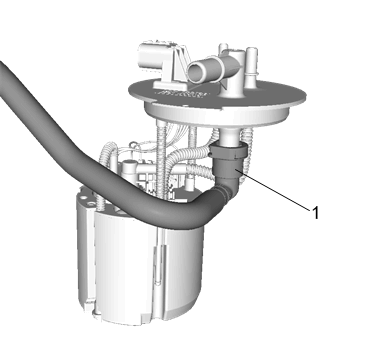

    3. Fig 2: Fuel Tank Vent Hose
    GM4673679Courtesy of GENERAL MOTORS COMPANY
  3. Connect Fuel Tank Vent Hose (1). Refer to Plastic Collar Quick Connect Fitting Service

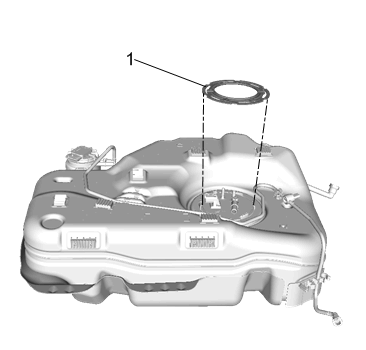

    4. Fig 3: Fuel Pump Lock Ring
    GM4673676Courtesy of GENERAL MOTORS COMPANY
  4. Install Fuel Pump Lock Ring (1) - CH 52075  Fuel Sender Lock Ring Wrench

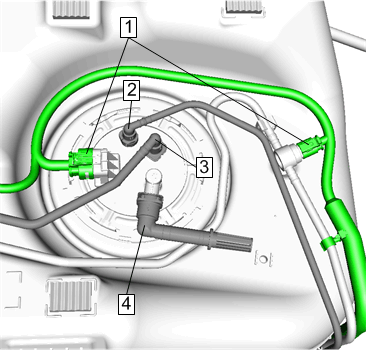

    5. Fig 4: Electrical Connectors, Fuel Pump Fuel Return Hose, Fuel Pump To Fuel Filter Hose And Fuel Tank Vent
    GM4673672Courtesy of GENERAL MOTORS COMPANY
  5. Connect Fuel Tank Vent (4). Refer to Plastic Collar Quick Connect Fitting Service
  6. Connect Fuel Pump to Fuel Filter Hose (3). Refer to Plastic Collar Quick Connect Fitting Service
  7. Connect Fuel Pump Fuel Return Hose (2). Refer to Plastic Collar Quick Connect Fitting Service
  8. Connect Electrical Connectors (1) (Qty: 2)
  9. Install Fuel Tank. Refer to Fuel Tank Replacement (AWD)
