Removal Procedure

WARNING: This page is about a different variant/trim than selected.
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

  1. Remove Fuel Tank. Refer to Fuel Tank Replacement (AWD)

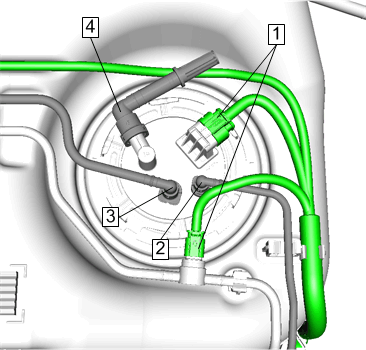

    2. Fig 1: Electrical Connectors, Fuel Pump Fuel Return Hose, Fuel Pump To Fuel Filter Hose And Fuel Tank Vent
    GM4673680Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect Electrical Connectors (1) (Qty: 2)
  3. Disconnect Fuel Pump Fuel Return Hose (2). Refer to Plastic Collar Quick Connect Fitting Service
  4. Disconnect Fuel Pump to Fuel Filter Hose (3). Refer to Plastic Collar Quick Connect Fitting Service
  5. Disconnect Fuel Tank Vent (4). Refer to Plastic Collar Quick Connect Fitting Service

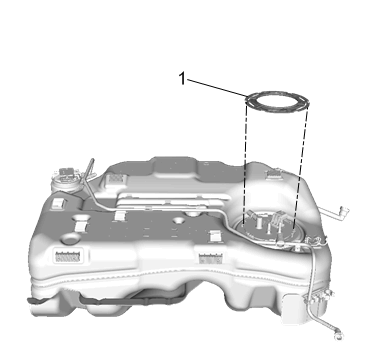

    6. Fig 2: Fuel Pump Lock Ring
    GM4673681Courtesy of GENERAL MOTORS COMPANY
  6. Remove Fuel Pump Lock Ring (1) - CH 52075  Fuel Sender Lock Ring Wrench

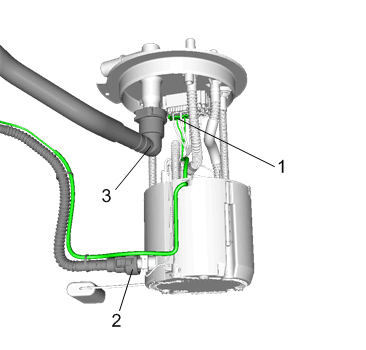

    7. Fig 3: Electrical Connector, Transfer Hose And Fuel Tank Vent Hose
    GM4673684Courtesy of GENERAL MOTORS COMPANY
  7. Disconnect Electrical Connector (1)
  8. Disconnect Transfer Hose (2). Refer to Plastic Collar Quick Connect Fitting Service
  9. Disconnect Fuel Tank Vent Hose (3). Refer to Plastic Collar Quick Connect Fitting Service

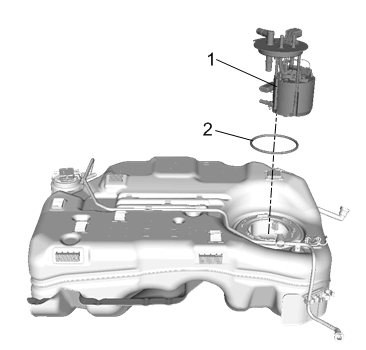

    10. Fig 4: Fuel Tank Fuel Pump Module And O-Ring
    GM4673682Courtesy of GENERAL MOTORS COMPANY
  10. Remove Fuel Tank Fuel Pump Module (1)
  11. Remove and DISCARD O-Ring (2)
