Fuel Pump Fuel Return Hose Replacement (AWD)
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Remove Fuel Tank. Refer to Fuel Tank Replacement (AWD) Refer to Safety Glasses Warning . |
|

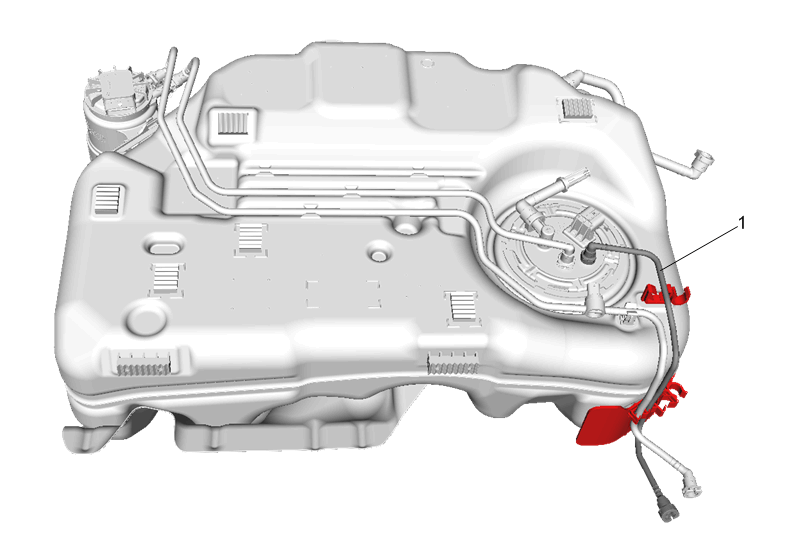

| 1 | Fuel Pump Fuel Return Hose Procedure Disconnect the fuel pump fuel return hose and remove from retainers. Refer to Plastic Collar Quick Connect Fitting Service |
