Removal Procedure
WARNING: This page is about a different variant/trim than selected.
WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.
WARNING:
Refer to Safety Goggles and Fuel Warning
WARNING:
Refer to Diesel/Gasoline Vapors Warning
CAUTION:
Refer to Fuel Contamination Caution
- Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (KL9)
- Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement

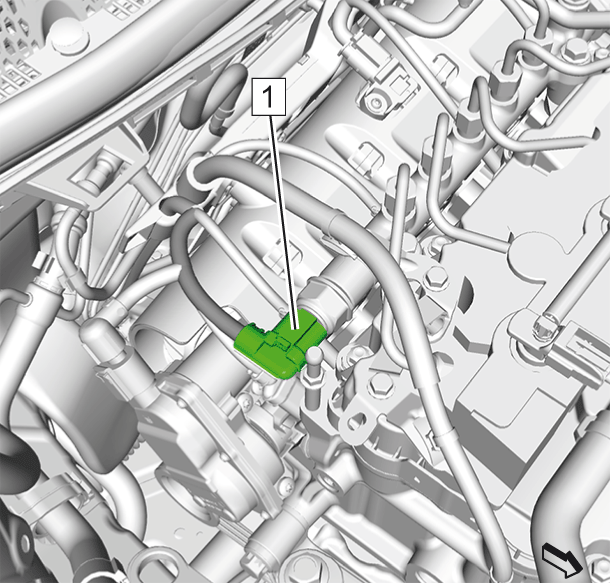

- Disconnect Electrical Connector (1)

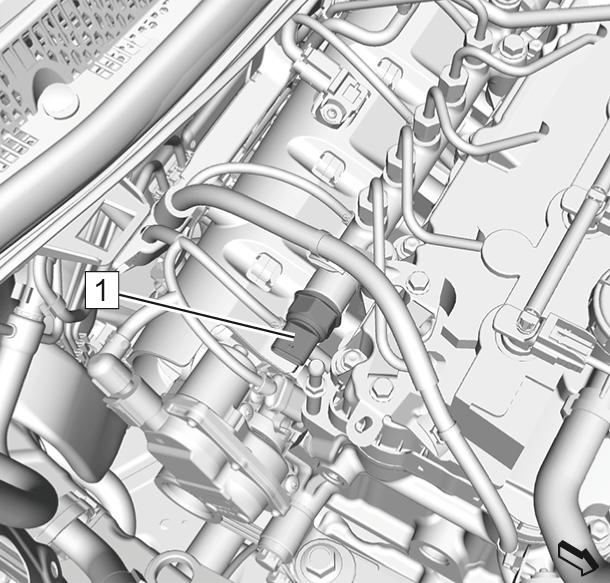

- Remove and DISCARD Fuel Pressure Sensor (1)
