Fuel Pressure Sensor Replacement - Fuel Feed Pipe (AWD)

WARNING: This page is about a different variant/trim than selected.

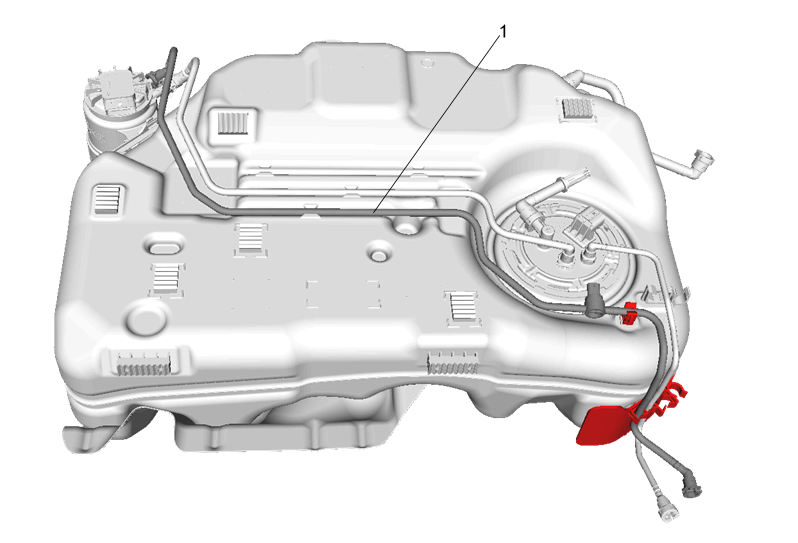

Fig 1: Fuel Pressure Sensor - Fuel Feed Pipe (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Remove Fuel Tank. Refer to Fuel Tank Replacement (AWD)
1	Fuel Pressure Sensor Procedure Disconnect the electrical connector. Disconnect the fuel hose and remove from retainers. Refer to Plastic Collar Quick Connect Fitting Service NOTE: Fuel pressure sensor is serviced as part of fuel hose assembly.

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedure Remove Fuel Tank. Refer to Fuel Tank Replacement (AWD)

Fuel Pressure Sensor

Procedure

Disconnect the electrical connector.
Disconnect the fuel hose and remove from retainers. Refer to Plastic Collar Quick Connect Fitting Service

NOTE:

Fuel pressure sensor is serviced as part of fuel hose assembly.
